Philippines Badminton Court Lighting: WM-S70-1160-DD-42W-108Z 24-Fixture Row at 5 m

The Short Answer for a Philippines Badminton Hall

A bright hall can still feel tiring when players look up for a clear, a lift or a late backhand. For a Philippines indoor badminton venue, the better question is not only whether the floor looks bright. The real question is whether players can track the shuttle without fighting glare from the side lighting rows.

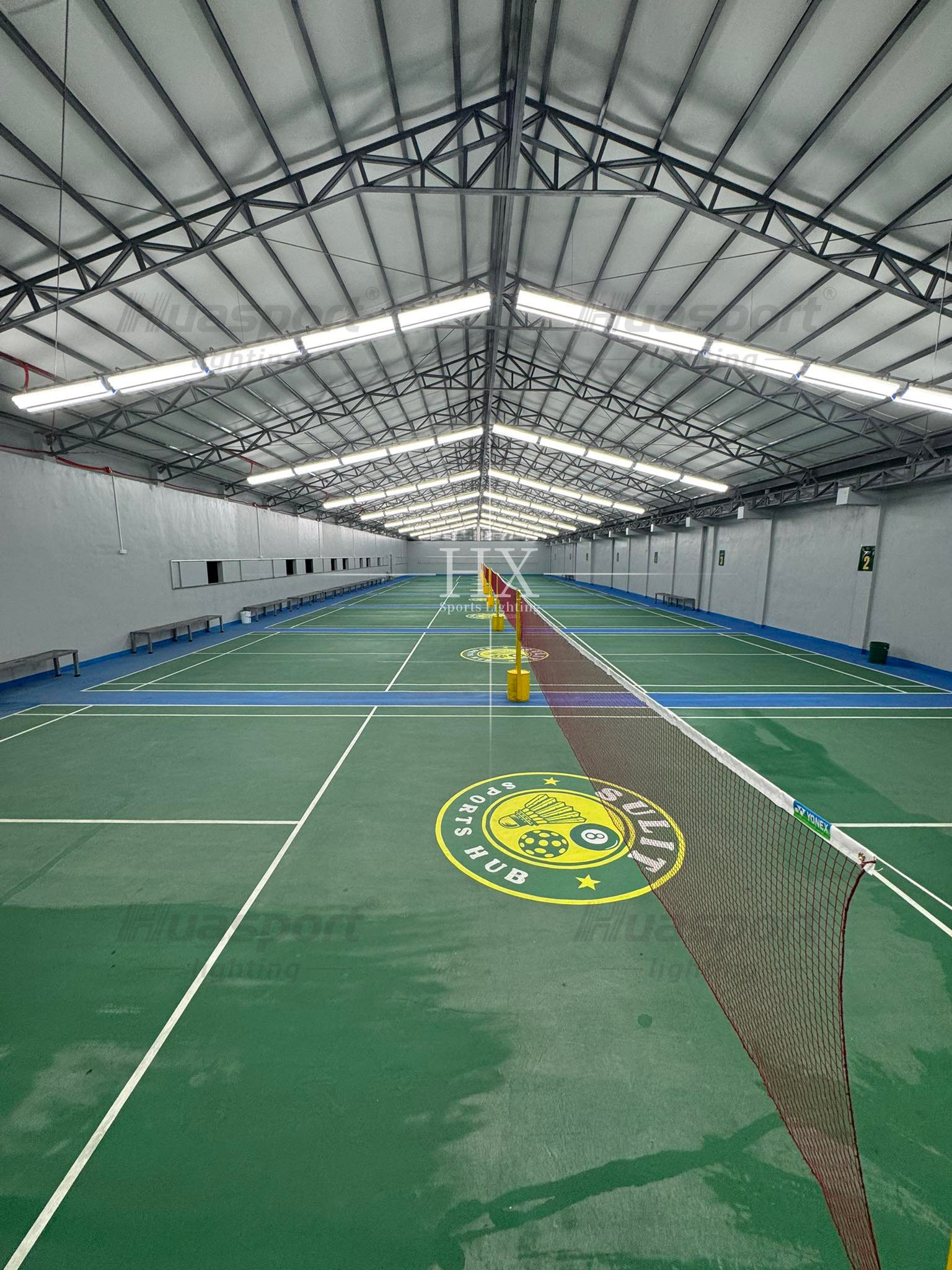

One practical Huasport layout uses WM-S70-1160-DD-42W-108Z, a 1.16 m S70 42W long-bar fixture with an 11 cm body and a double-layer honeycomb anti-glare grille. For one indoor badminton court, the reference layout uses 24 fixtures per court, with 12 fixtures on each side, mounted around 5 m and aimed 30 degrees inward. Twelve 1.16 m fixtures form a 13.92 m continuous row, giving clean coverage along the 13.4 m main playing-area length. The target is 300-400 lux+ for commercial training and recreational play; if competition use is required, the lighting plan should be reviewed toward 500 lux+ average illuminance.

Why This Topic Matters More Than "Is It Bright Enough?"

Many venue owners notice lighting problems only after the hall opens. The floor looks green, the lines look white and the photos look bright, but players still complain after a long session. In badminton, that complaint often starts when the shuttle rises high and the player has to look toward the fixture row.

That is why Huasport plans badminton court lighting around player viewing angles as well as illuminance. The goal is to make the court feel usable during clears, smashes, net lifts and rear-court recovery, not only to create a bright photo from the entrance.

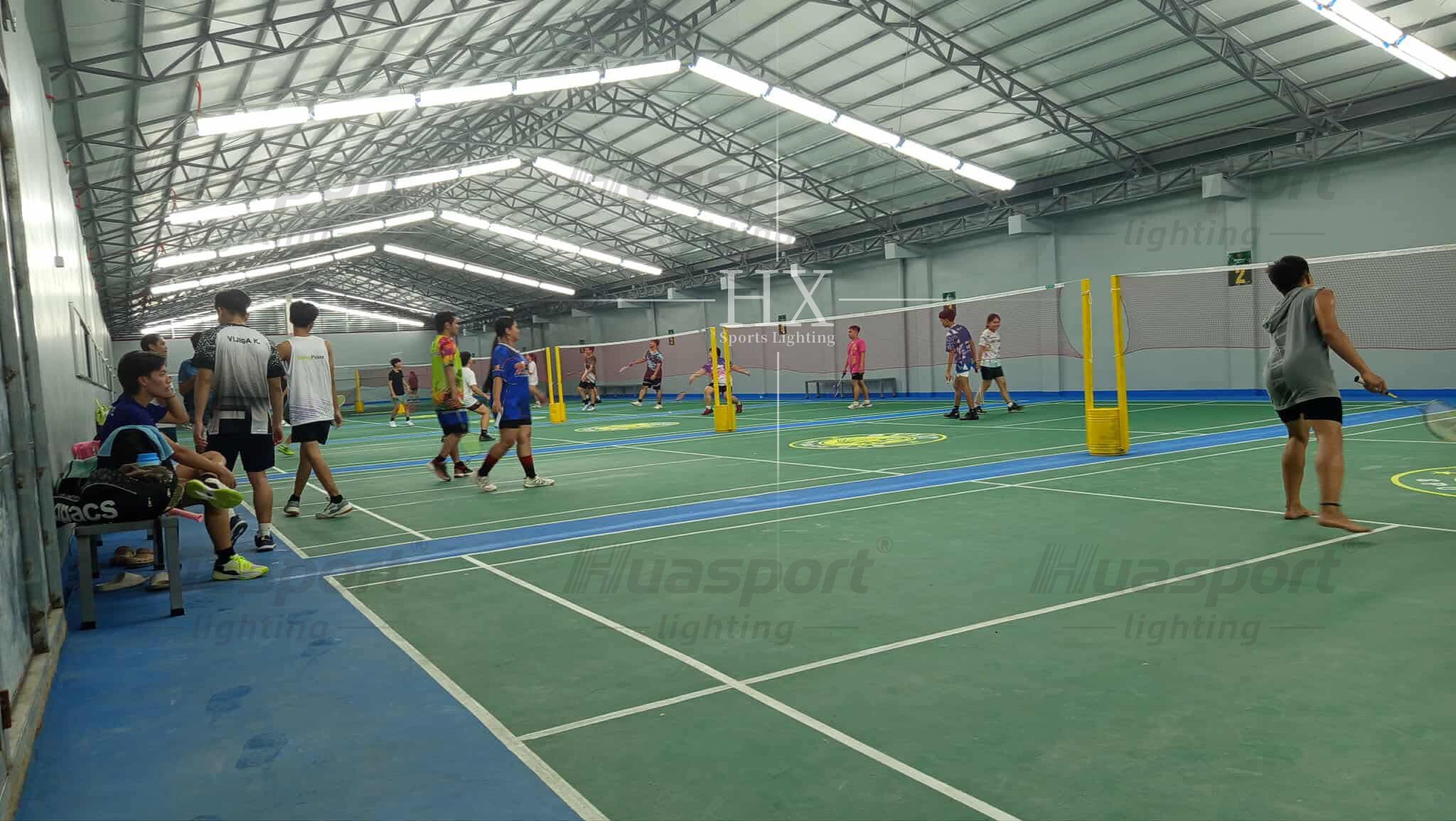

A Real Check From the Player Side

Stand near the sideline and look diagonally across the court. If the fixture face is too exposed, the hall may feel sharp even when the lux meter looks acceptable. A double-layer grille helps hide the direct LED point from the player view, while the 30-degree inward aim keeps light on the playing area instead of sending too much glare across the eyes.

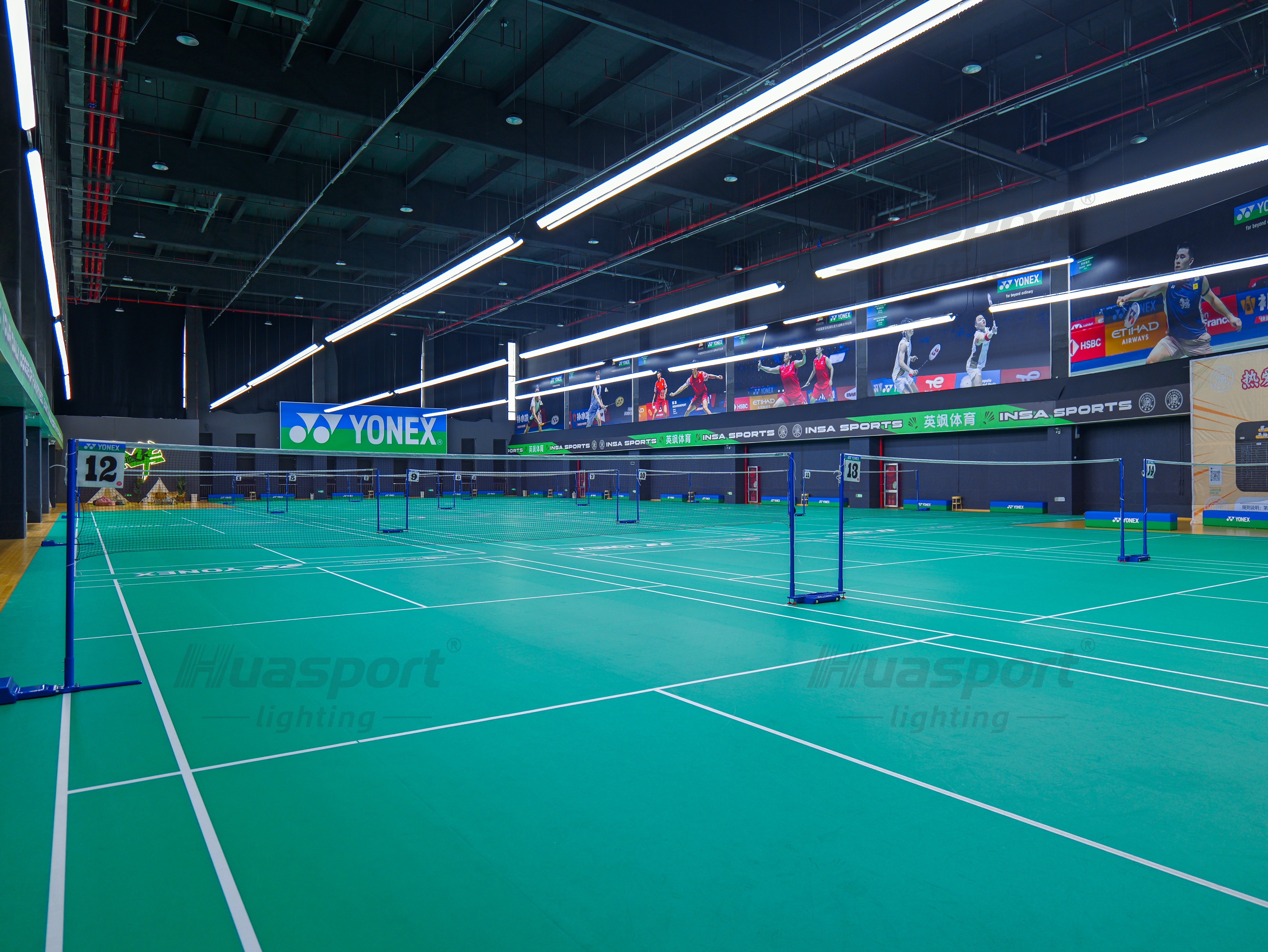

The Single Layout Used in This Philippines Guide

This page focuses on one model and one layout, so the specification is easy to verify before quotation.

Why the WM-S70-1160-DD-42W-108Z Model Code Matters

Buying by wattage alone leaves too much unknown. The model code tells the buyer which body size, fixture length and optical structure are being discussed. In this layout, WM-S70-1160-DD-42W-108Z points to the S70 1.16 m 42W option used for continuous side rows in indoor badminton or compatible training courts.

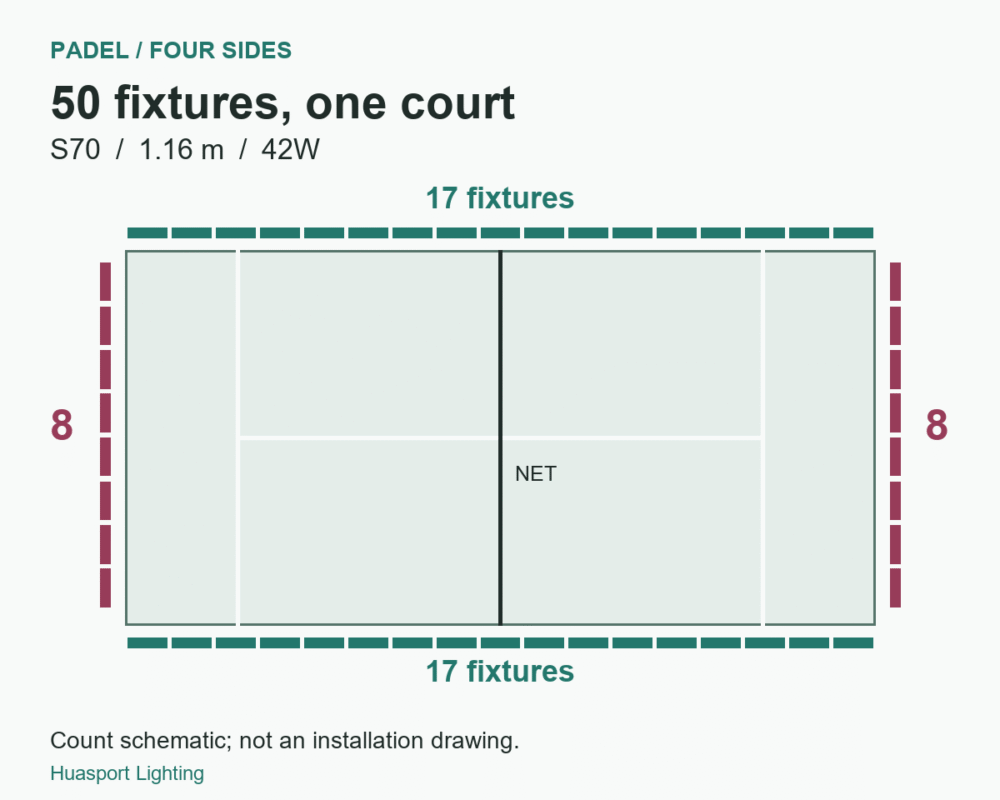

For a mixed-use venue that also schedules pickleball sessions, the same player-comfort logic should be compared against pickleball court lighting requirements. For glass-wall courts, padel court lighting uses a different perimeter planning method and should not be copied from a badminton layout.

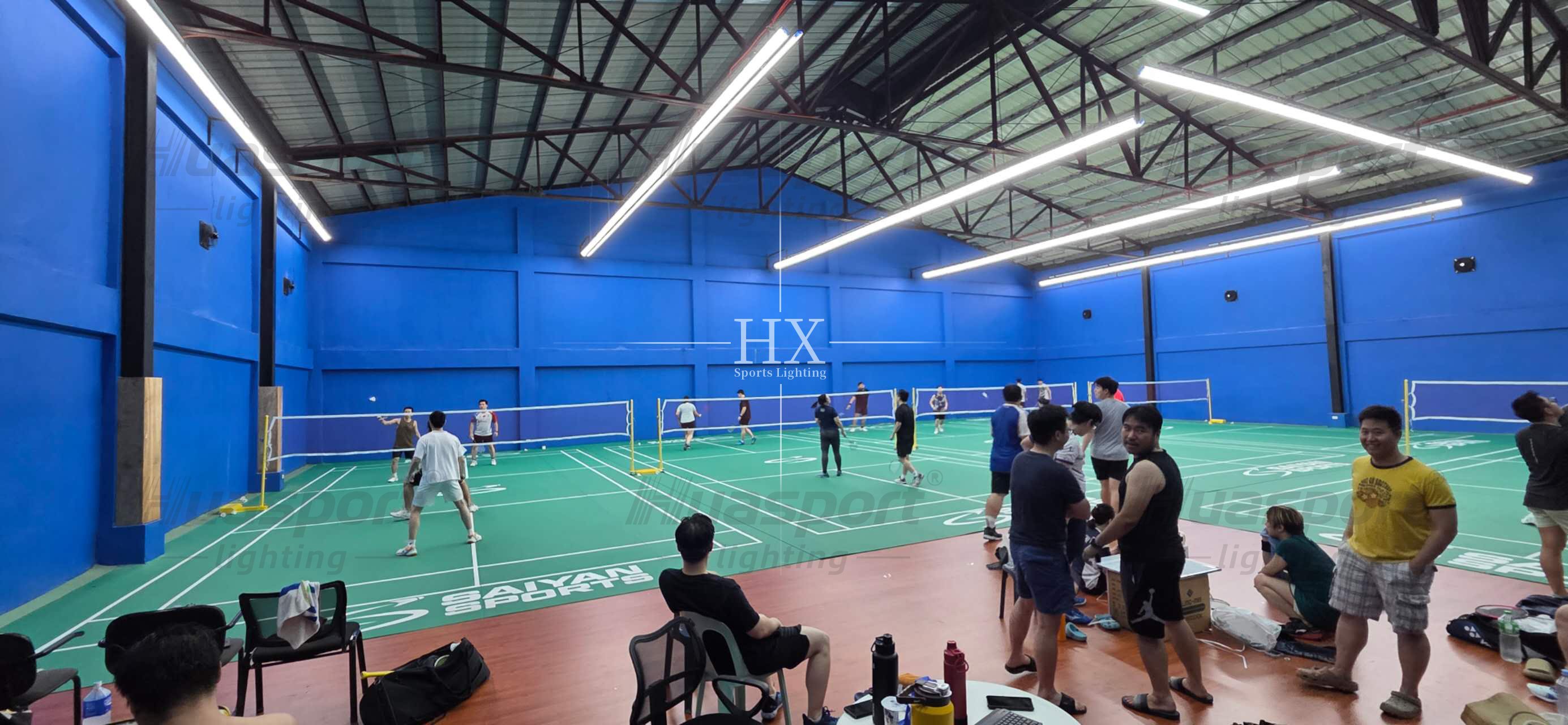

What the Philippines Photos Help a Buyer Check

Before a final quote, a hall owner can use the project photos and site drawings to check several practical points:

1. Whether each badminton court has a clear side space for two continuous rows.
2. Whether the ceiling and truss position can support about 5 m mounting height.
3. Whether 12 fixtures can form a clean 13.92 m row on each side.
4. Whether the fixtures can aim 30 degrees inward without shining directly across the opposite player view.
5. Whether court quantity, walking aisles and wall color require a lighting simulation before confirmation.
6. Whether the venue is for 300-400 lux+ training use or needs a 500 lux+ competition review.

The Anti-Glare Detail Players Feel but Rarely Name

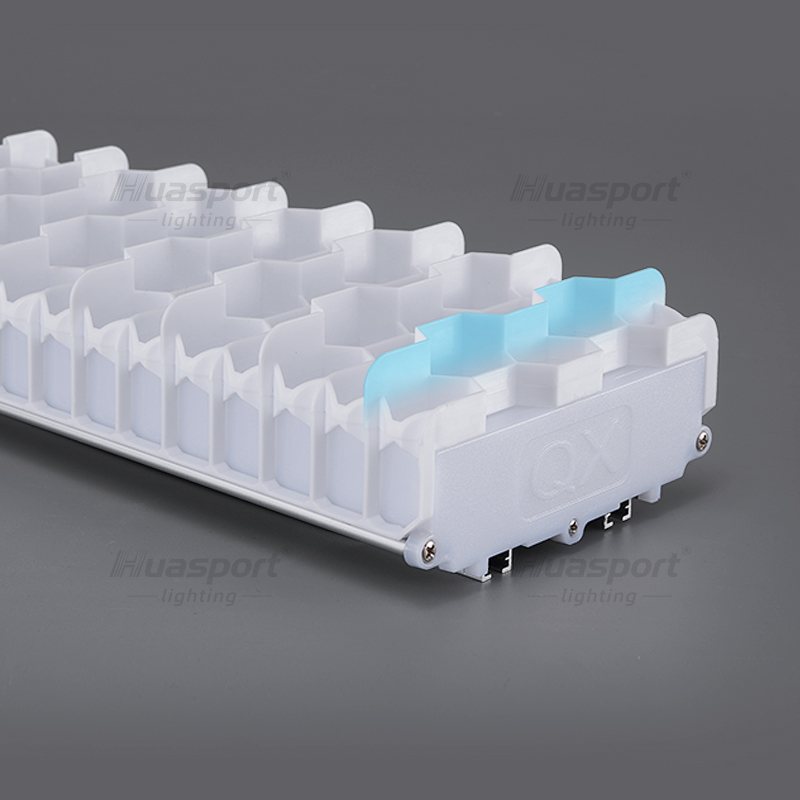

Players may not ask for a double-layer honeycomb grille by name. They simply say the hall feels comfortable, or they avoid a venue where the light is hard on the eyes. The S70 and S90 fixture families use Huasport’s double-layer honeycomb anti-glare design, which is protected by patent application. Compared with a simple single-layer grille, this structure gives the fixture more depth for controlling direct LED glare from side viewing angles.

The S70 back side uses a thickened aluminum profile instead of an iron body. Aluminum improves heat dissipation around the LED source and driver area, and the metal bracket is fixed to the aluminum profile rather than to plastic. For a commercial hall that opens every day, these small construction details matter because the lighting system is part of the venue’s long-term operating quality.

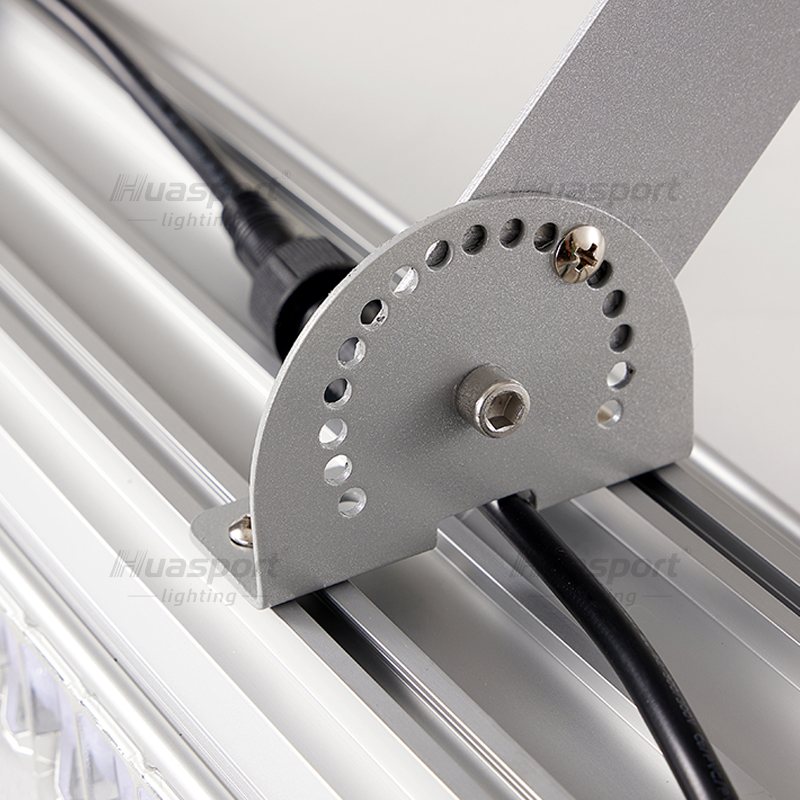

Bracket Aiming: Why 30 Degrees Should Be Repeatable

The 30-degree inward tilt is not a decoration. It is part of how the side-row layout sends light toward the court while reducing direct face glare. During installation, the adjustable bracket gives installers a repeatable angle reference, so each fixture row can be aligned more consistently across multiple courts.

This is also why quotation should not stop at fixture quantity. A better quotation checks court count, mounting height, row position, aiming direction, cable route and the exact fixture model together. The result is easier for the buyer to approve and easier for the installer to follow.

When This Layout Fits Best

The WM-S70-1160-DD-42W-108Z 24-fixture layout is best suited to indoor badminton halls in the Philippines that want a clear commercial training level without making the court feel harsh. It is especially practical when the hall has about 5 m mounting height, parallel side rows and a need for comfortable evening use.

If the project has a higher ceiling, strong daylight, broadcast requirements, unusual truss positions or competition targets, Huasport should prepare a lighting layout review before final selection. The layout should be confirmed from drawings and site photos, then matched with the venue’s operating goal: training, recreation, coaching, league play or event use.

For project support, send the court quantity, ceiling height and installation photos to Huasport Lighting. The next useful step is a layout plan that connects the model code, fixture count and aiming direction before purchase.
