Badminton Court Lighting for 300-500+ lux Indoor Courts
Anti-glare S70/S90 long-bar fixtures for badminton halls, with 5 m and 6 m layout references, 30-degree inward tilt, SAA and ETL options, and photo-verifiable product structure.
When players complain about court lighting, they rarely start with a datasheet. They talk about the shuttle disappearing under a bright line, glare hitting their eyes on clears, or one court feeling comfortable while the next one feels tiring after 20 minutes.
That is the real job of badminton court lighting. Brightness matters, but player view, glare control, fixture angle and layout consistency decide whether a hall feels professional.
A 300-500+ lux planning range for indoor badminton halls
For most commercial badminton halls, Huasport uses a planning range of 300-400 lux+ for training and recreational use. If the venue needs competition-level play, the layout should be checked toward 500 lux+ average illuminance.
The exact fixture model depends on the country, certification requirement, ceiling height and court quantity. A Southeast Asia project may use a 5 m installation plan. Australia, New Zealand, the United States and Canada usually need certified options and 6 m planning references.
24 fixtures, 12 per side and a 13.92 m seamless row for one 13.4 m court side
For S70/S90 1.16 m 42W seamless-row layouts used in Southeast Asia projects, one court can use 24 fixtures, with 12 fixtures installed on each side. Twelve 1.16 m fixtures form a 13.92 m continuous row, which covers the 13.4 m main playing-area side length.
The fixtures are tilted 30 degrees inward toward the court. That angle helps send useful light into the playing zone instead of pushing glare straight into the player’s line of sight.

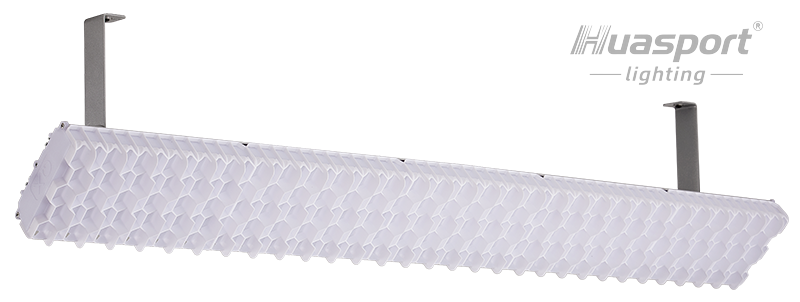

S70/S90 anti-glare fixtures with product details buyers can check
The S70 and S90 families look similar from the court. Both use a long-bar body, a white double-layer honeycomb anti-glare grille and an adjustable metal bracket. The most important difference is width, S70 is 11 cm wide and S90 is 13 cm wide.

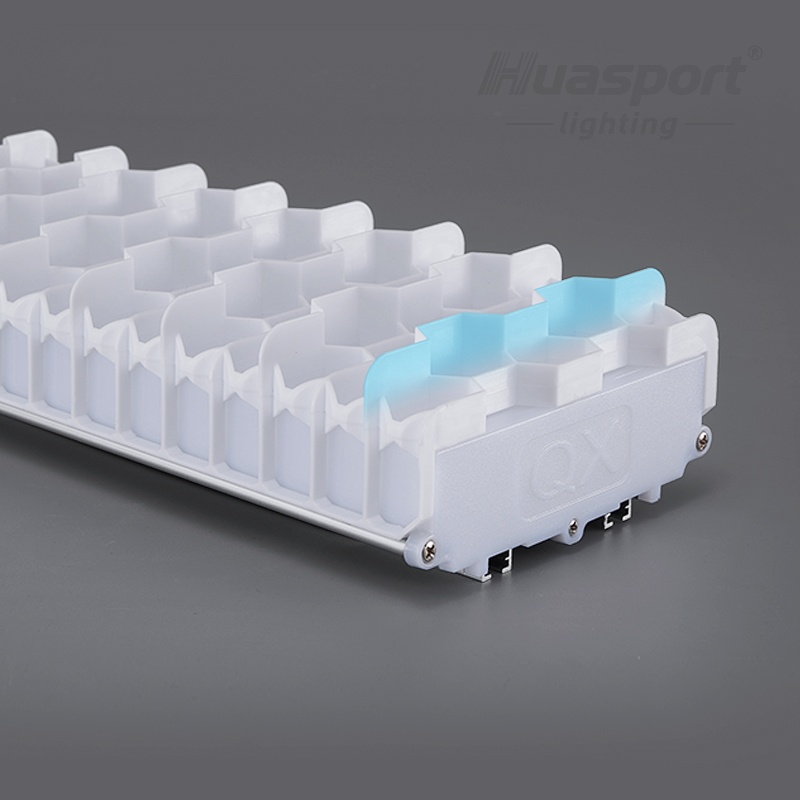

Double-layer honeycomb grille protected by Huasport patent filings
Huasport uses a double-layer honeycomb anti-glare design protected by Huasport patent filings. Compared with common single-layer grille designs, the deeper layered structure gives the light a longer shielding path before it reaches the player’s eyes.
Buyers can check this detail in product photos. The grille should not look like a flat cover, ordinary transparent lens or simple single-layer grid.
Thickened aluminum profile supports heat dissipation and bracket safety
The back of the fixture uses a thickened aluminum profile. Huasport does not use low-cost ironwork for this body structure. Aluminum helps heat leave the driver and LED chips more effectively, which supports longer service life.
The mounting bracket is fixed to the aluminum profile, not to plastic. That detail matters on a suspended fixture, because the bracket carries the fixture in real halls where vibration, cleaning and maintenance happen year after year.

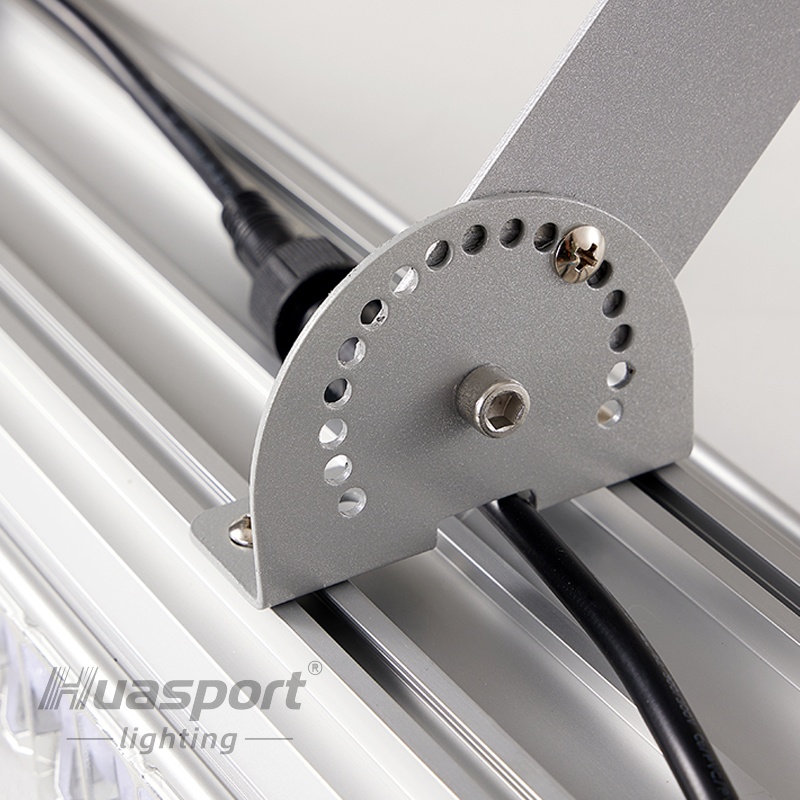

Adjustable bracket with a 30-degree installation reference
The bracket has multiple locking holes. In normal installation, locking the bracket on the sixth hole keeps about a 30-degree inward tilt. Huasport also provides a connector accessory for double-lamp V-shaped installation when the project needs it.
Layout references by certification market
Different markets need different certification choices. The numbers below are planning references, not a replacement for a project layout drawing.

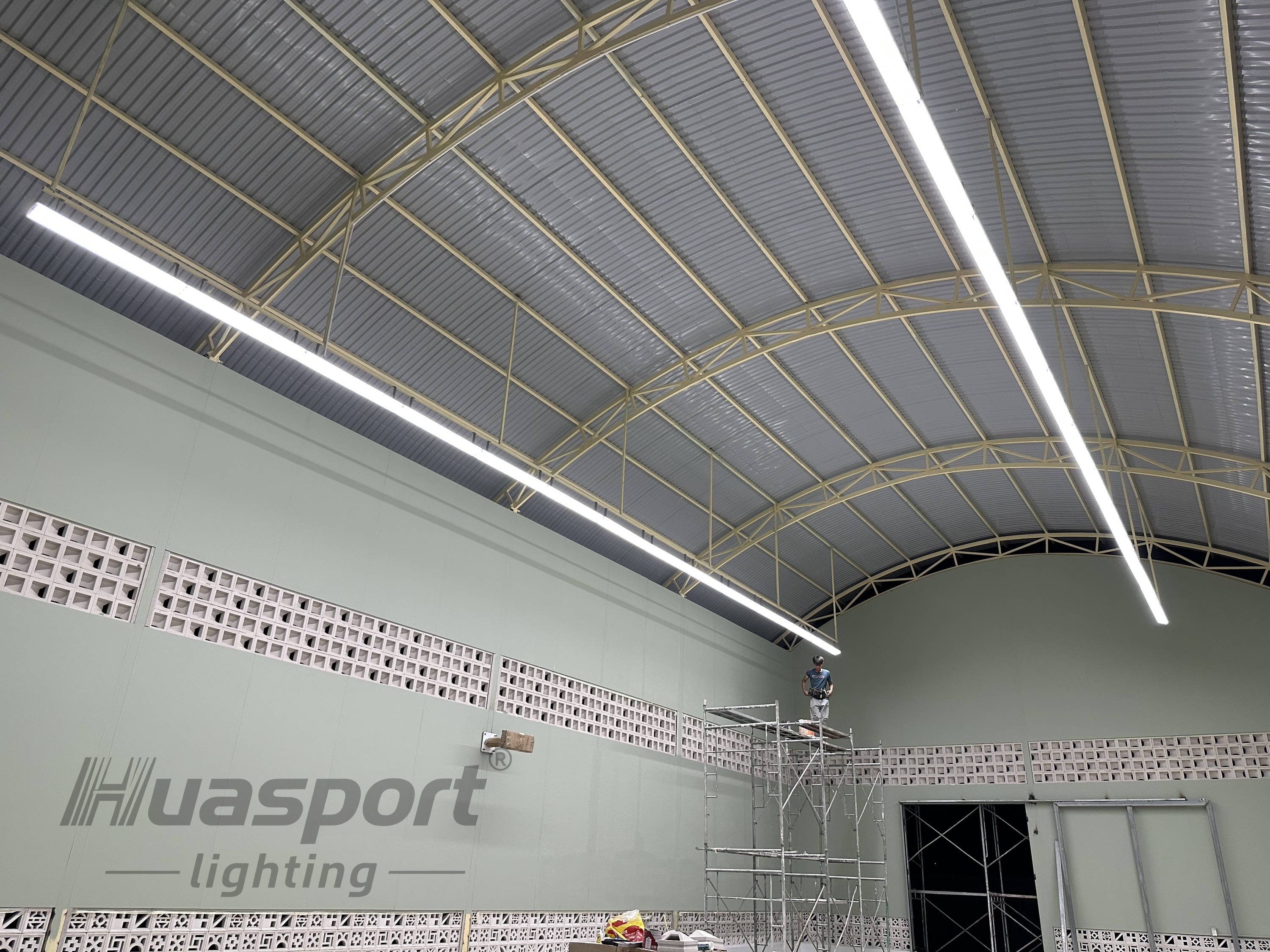

Southeast Asia 5 m layout using WM-S90-1160-DD-42W-108Z
For countries such as the Philippines, Malaysia, Vietnam, Cambodia, Indonesia, Thailand and Laos, one practical badminton or pickleball court option is the Huasport S90 1.16 m 42W fixture, model WM-S90-1160-DD-42W-108Z.
The reference layout uses 24 fixtures per court, 12 on each side, installed at about 5 m height with a 30-degree inward tilt. The target average illuminance is usually 300-400 lux+ for commercial training or recreational use. Competition use should be checked toward 500 lux+.
Australia and New Zealand 6 m layout using SAA 60W, 5130 lm fixtures
For Australia and New Zealand projects requiring SAA certification, Huasport offers S70/S90 1.16 m 60W options, including SAA-S70-1160-FLP-60W-108Z and SAA-S90-1160-FLP-60W-108Z.
The reference layout uses 24 fixtures per court, 12 on each side, installed at about 6 m height with a 30-degree inward tilt. The target average illuminance is usually 400-500 lux+.
United States and Canada 6 m layout using ETL 50W, 4275 lm fixtures
For the United States and Canada, Huasport offers ETL-certified 50W options for indoor badminton court lighting. The verified Canada article data uses 50W fixtures with 4275 lm luminous flux.
The reference layout uses 24 fixtures per court, 12 on each side, installed at about 6 m height with a 30-degree inward tilt. The target average illuminance is usually 400-500 lux+.
Case-backed proof for badminton lighting decisions
Venue owners should judge lighting from two directions, the court photo and the product detail photo. Court photos show whether the fixture row direction, player view and court coverage make sense. Product photos show whether the anti-glare structure, bracket and aluminum profile are real.

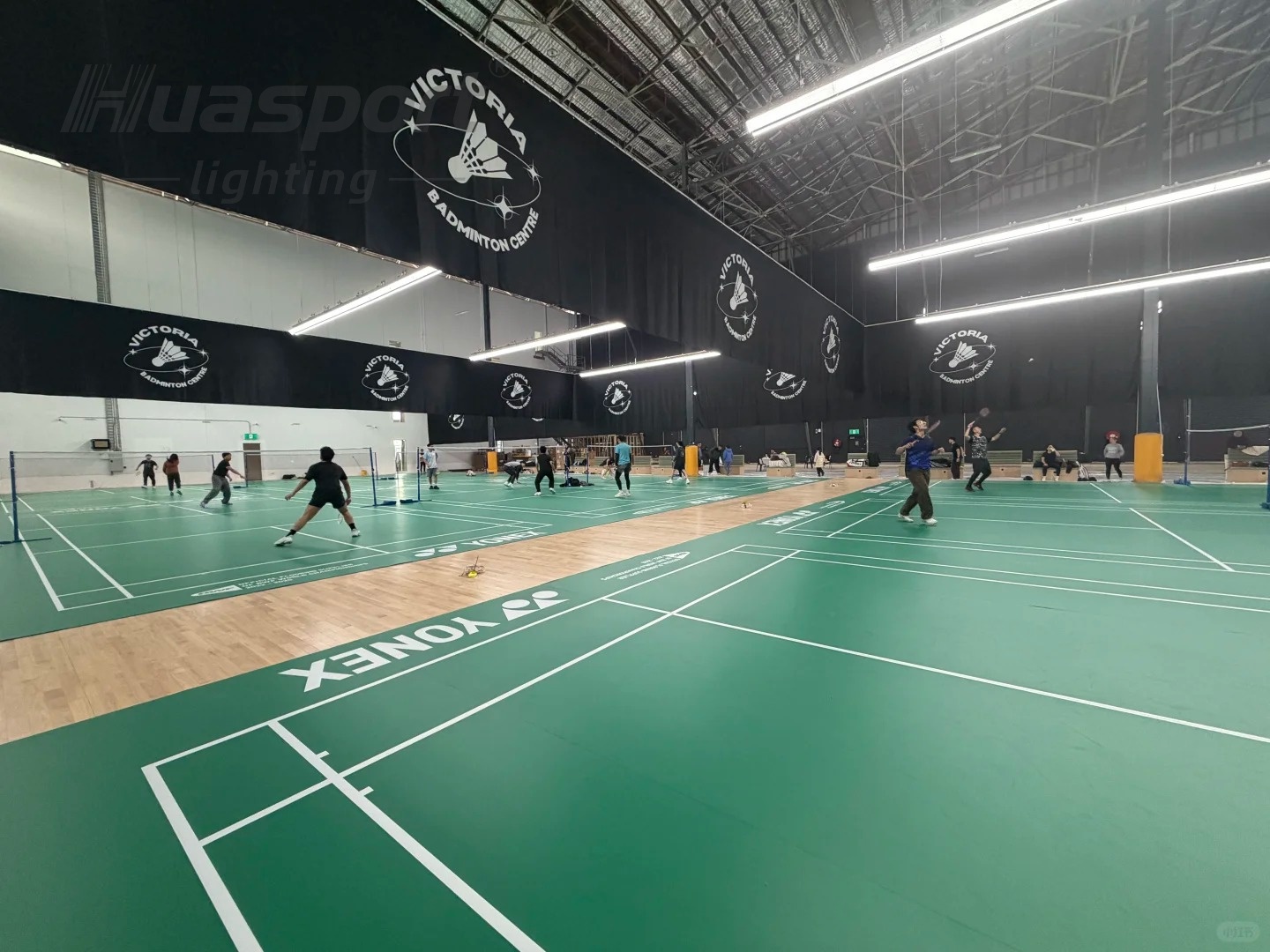

Australia SAA 60W and 5130 lm badminton lighting checks
The Australia badminton lighting articles show SAA 60W and 5130 lm data, with visible long-bar fixture rows and buyer checks for anti-glare structure and installation acceptance.
Read the Australia badminton court lighting guide
Canada ETL 50W and 4275 lm badminton lighting checks
The Canada articles focus on ETL-certified 50W, 4275 lm fixtures and retrofit planning. They are useful for North American buyers who need certification, product-detail verification and quotation preparation.
Read the Canada ETL badminton court lights guide

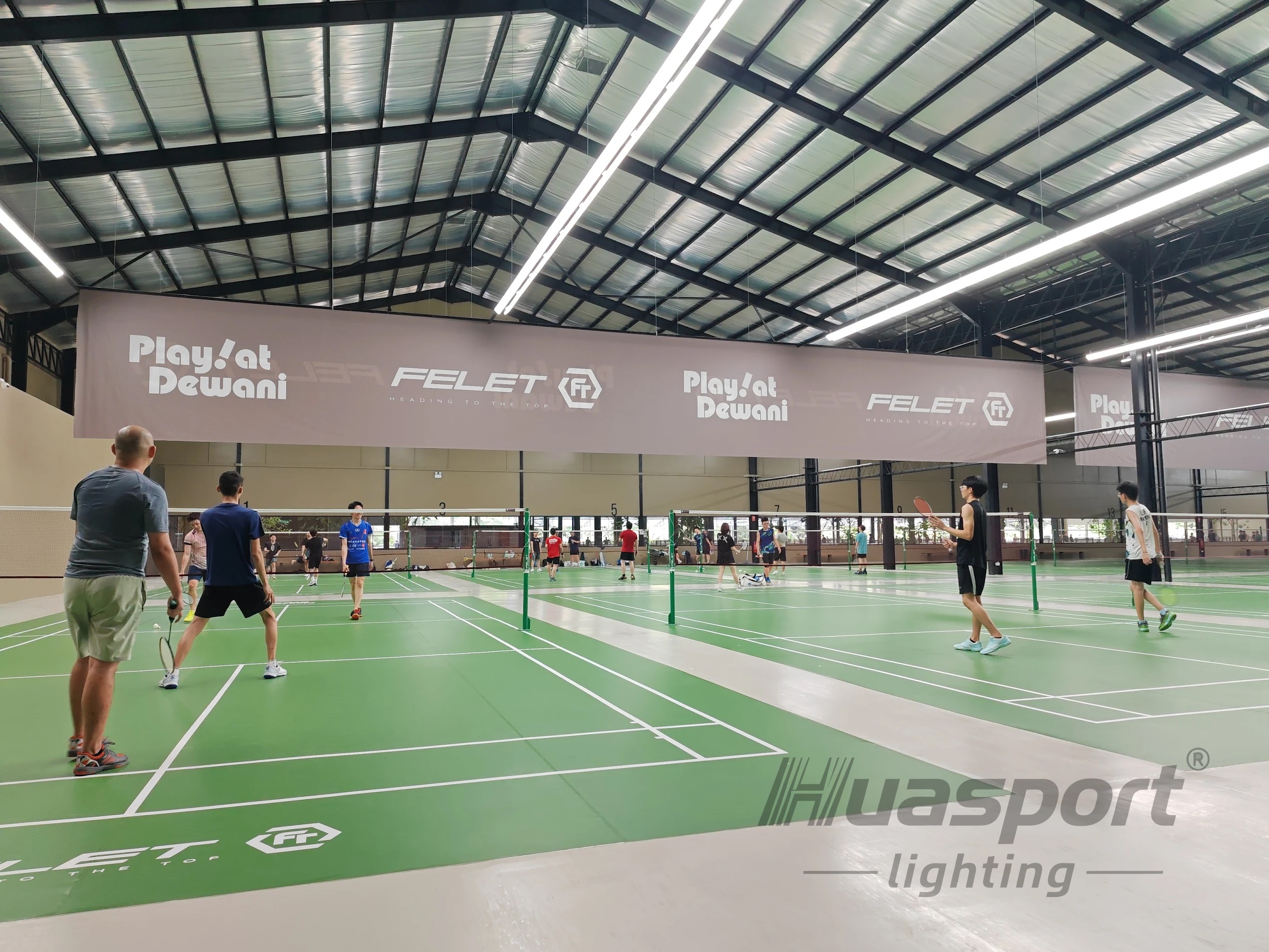

Malaysia S70 42W and 24-fixture layout reference
The Malaysia article uses the S70 1.16 m 42W 24-fixture seamless-row layout at 5 m, with 12 fixtures per side and a 30-degree inward tilt.
What to confirm before Huasport prepares a badminton lighting layout
Send these details before quotation so the layout can match the hall instead of using a rough lamp count.
- Country and certification requirement, such as SAA, ETL or CE.
- Number of badminton courts and whether the courts are side by side.
- Ceiling height and available mounting structure.
- Target use, recreational play, commercial training or competition.
- Target illuminance, such as 300-400 lux+ or 500 lux+.
- Whether the venue needs seamless rows or another installation method.
- Photos or drawings showing beams, ceiling, walls and court direction.
See Indoor Badminton and Pickleball Court Lighting products
See Huasport sports lighting case studies
Frequently asked questions
How many lux are recommended for an indoor badminton court?
For commercial training and recreational venues, Huasport usually plans around 300-400 lux+ average illuminance. For competition use, the layout should be checked toward 500 lux+ average illuminance.
How many badminton court lights are used for one court?
A common 1.16 m 42W seamless-row layout uses 24 fixtures per court, with 12 fixtures on each side. Twelve 1.16 m fixtures form a 13.92 m row, which covers the 13.4 m main playing-area side length.
What is the usual mounting angle for Huasport badminton court lighting?
The common installation reference is a 30-degree inward tilt toward the court. The adjustable bracket can be locked around the sixth hole to keep that angle in normal installation.
What is the difference between Huasport S70 and S90 badminton lights?
The main difference is width. S70 is 11 cm wide and S90 is 13 cm wide. Both use a similar long-bar appearance, double-layer honeycomb anti-glare grille and adjustable metal bracket.
Which countries need SAA or ETL badminton lighting options?
Australia and New Zealand projects often require SAA-certified options, such as 60W fixtures with 5130 lm. The United States and Canada often require ETL-certified options, such as 50W fixtures with 4275 lm.
Can the same fixture family be used for pickleball courts?
Yes, Huasport S70/S90 long-bar anti-glare fixtures can be planned for indoor badminton courts and indoor pickleball courts when the ceiling height, court layout and target lux level match the project requirement.
5 m and 6 m layouts need project drawings
Fixture count, wattage and target illuminance should be confirmed with court drawings and ceiling photos before final quotation.

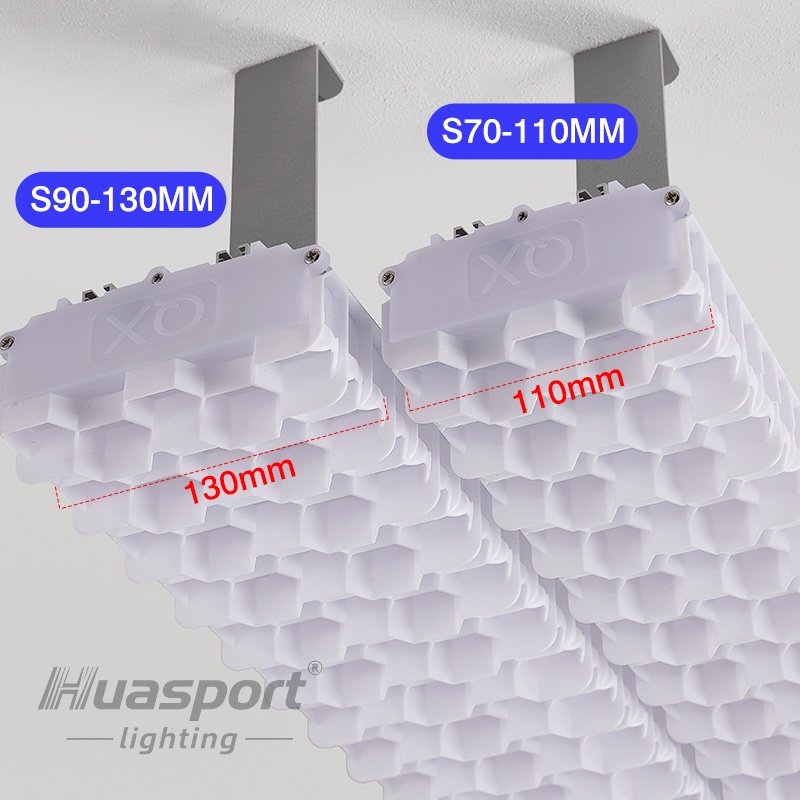

S70 is 11 cm and S90 is 13 cm wide
This width difference should be verified in product photos or samples before the buyer chooses between S70 and S90.
Send court count, height, country and target lux
These four items help Huasport prepare a lighting layout that matches the actual badminton hall.
