Recommended Lighting Configuration Plan

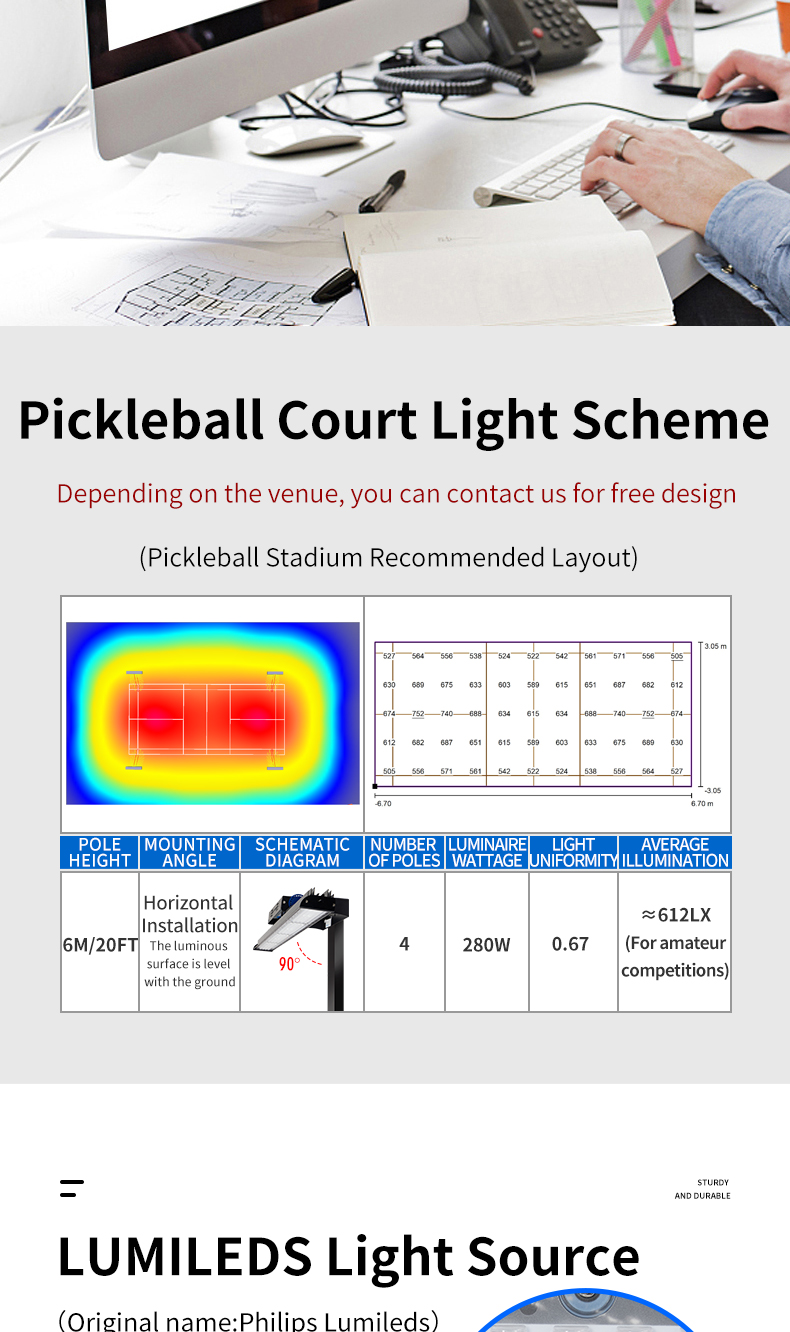

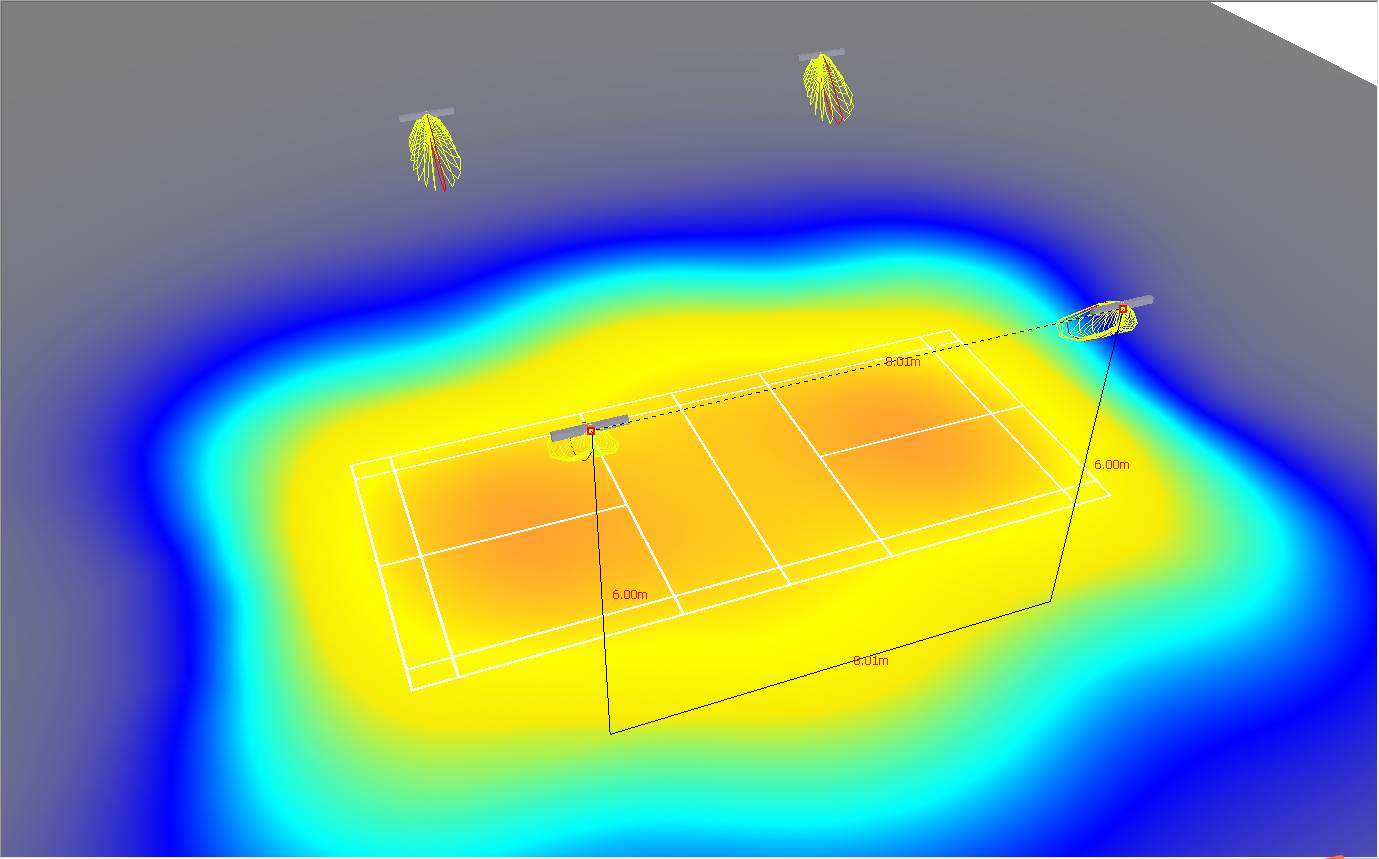

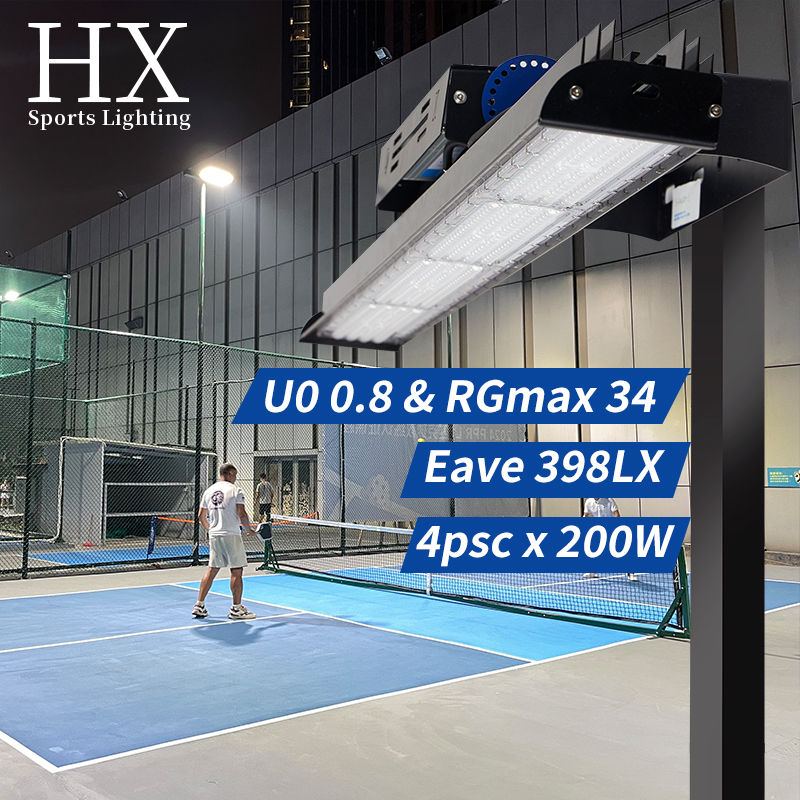

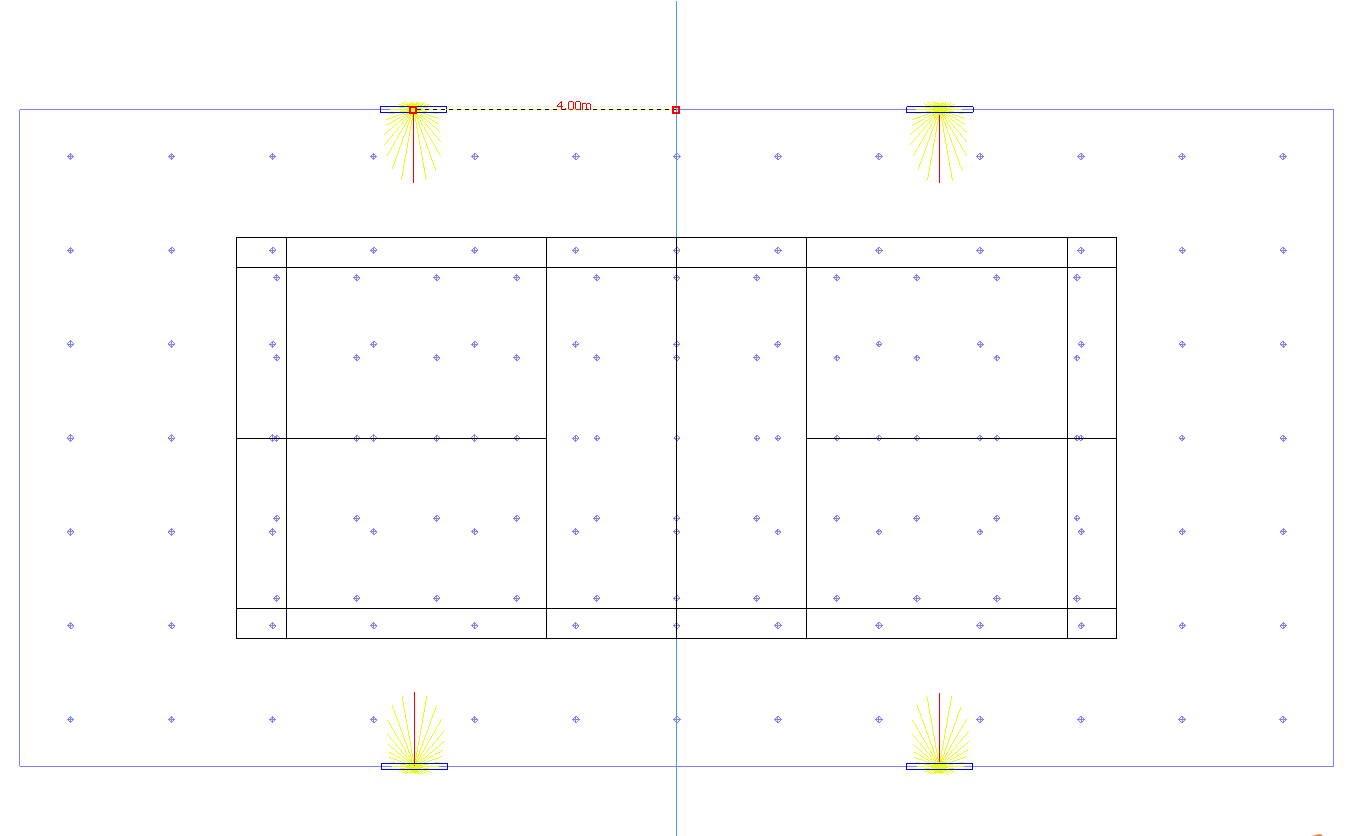

Outdoor Pickleball Court Lighting Configuration Plan
- Power Consumption: 200W【Polarized Lighting Anti-Glare Design】

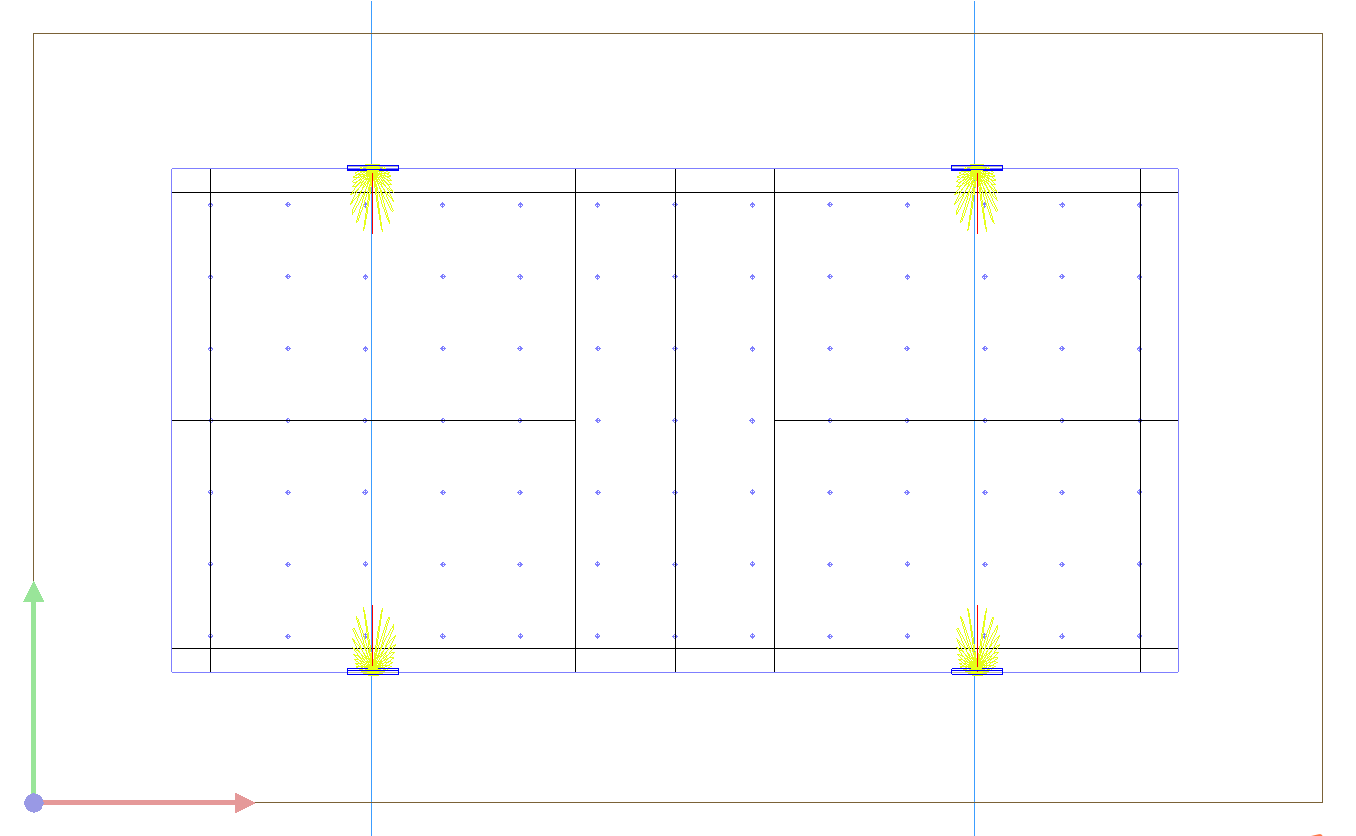

- Installation Quantity: 4 lamps for one court, 2 lamps on each side. Between the lamps is 8 meters, and the lamps to the sideline is 2 meters.
- Installation Height: 6 meters
- Installation Angle: The light-emitting surface is at a 0° horizontal angle to the ground

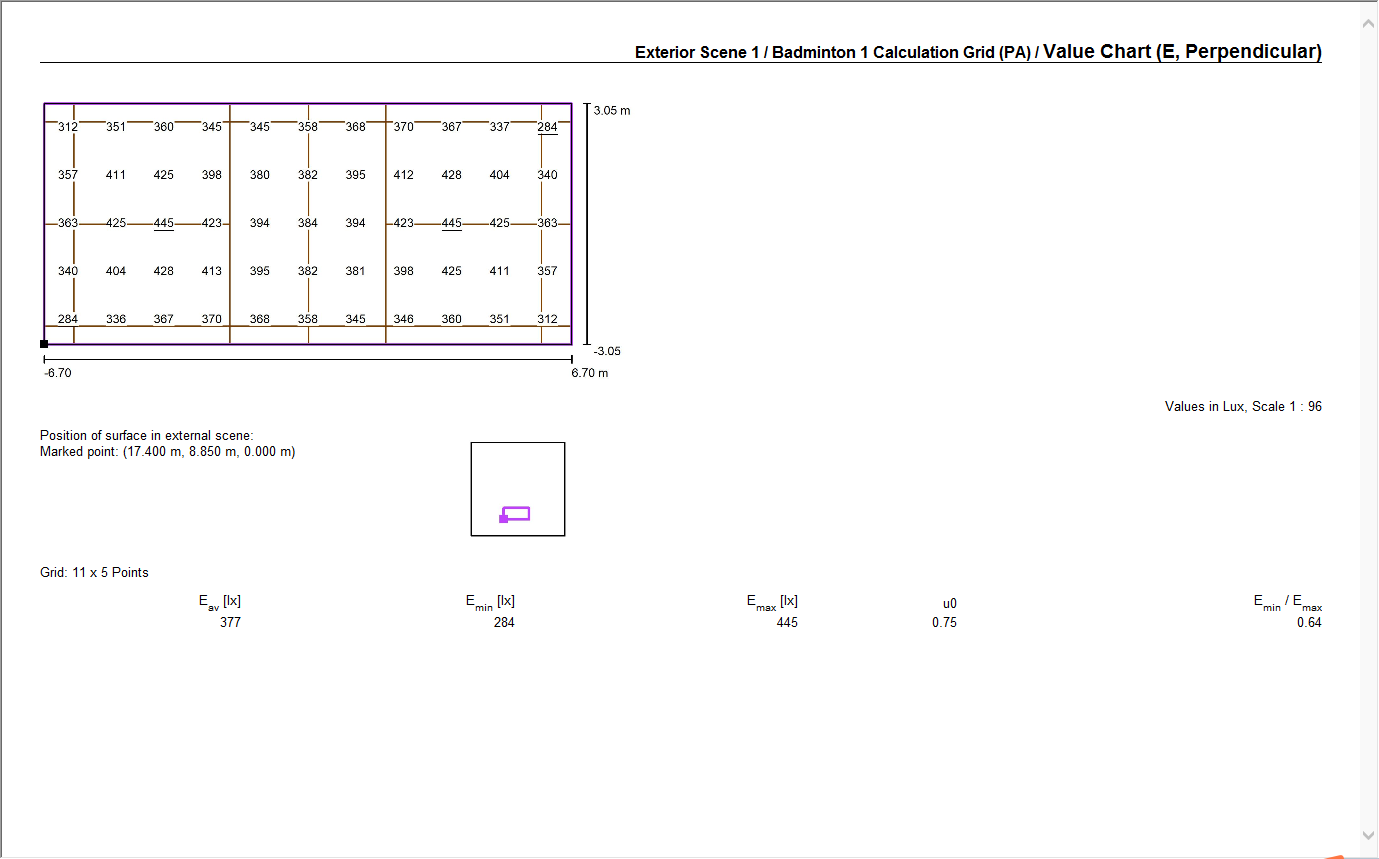

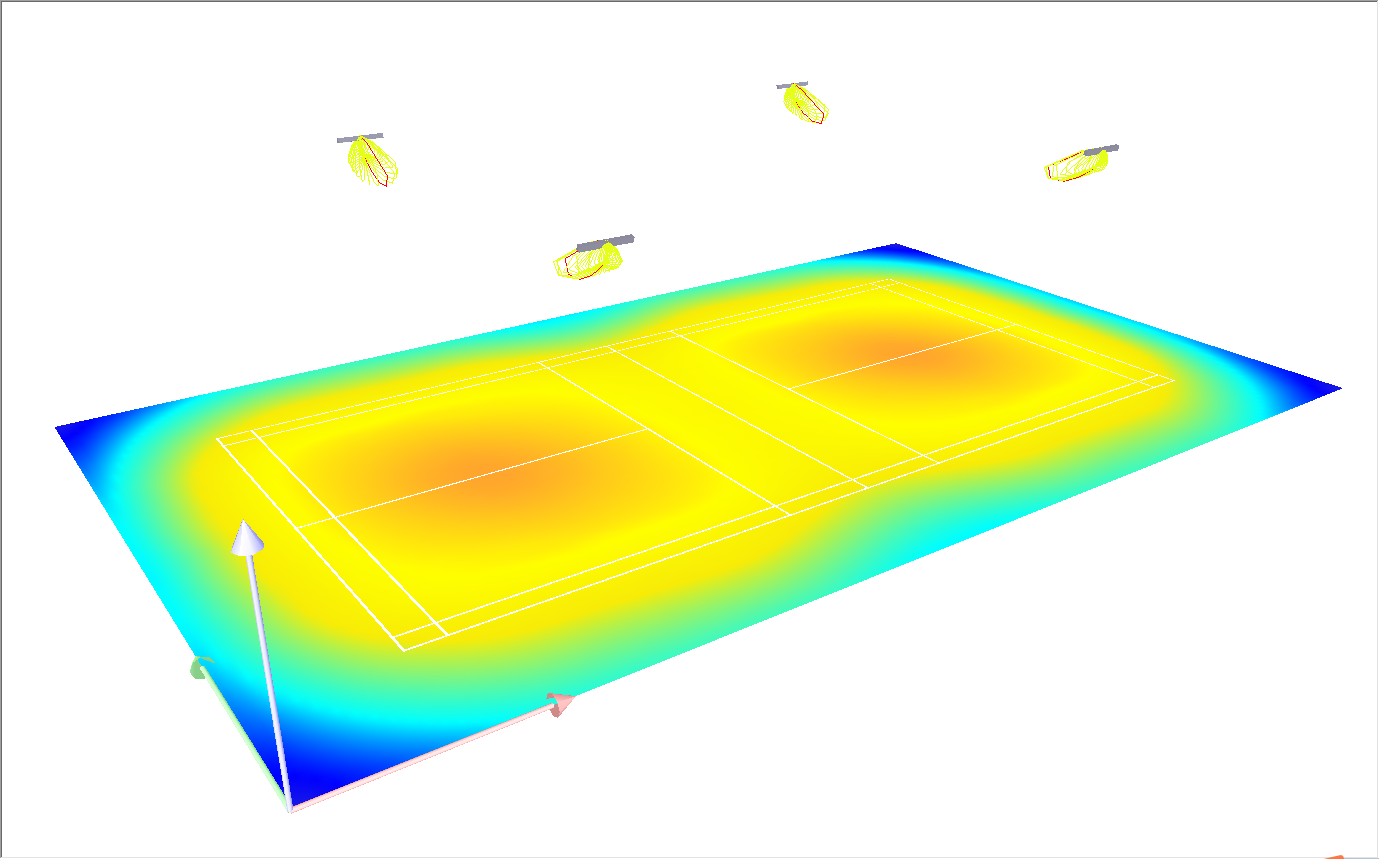

- Data: Average illuminance is 377 lux, and U0 is 0.75
Recommended Lighting Configuration Plan
Padel Court Lighting Configuration Plan
- Power Consumption: 300W
- Installation Quantity: 4 lamps for one court, 2 lamps on each side. Between the lamps is 12 meters
- Installation Height: 6 meters
- Installation Angle: Elevation Angle of 15°

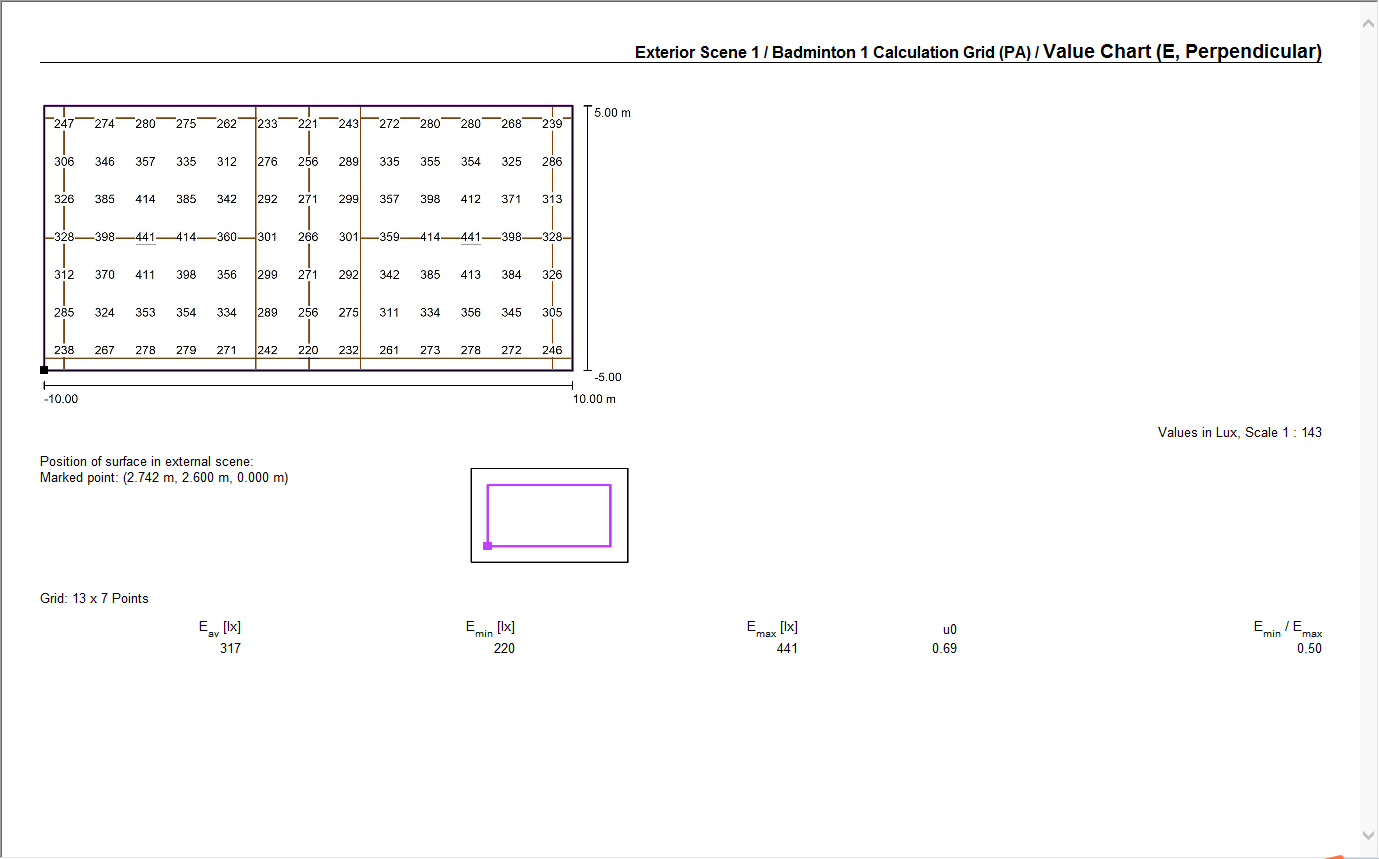

- Data: Average illuminance is 317 lux, and U0 is 0.69
Recommended Lighting Configuration Plan
Tennis Court Lighting Configuration Plan
- Power Consumption: 400W
- Installation Quantity: 8 lamps for one court, 4 lamps on each side. Between the lamps is 9 meters
- Installation Height: 8 meters
- Installation Angle: The light-emitting surface is at a 0° horizontal angle to the ground
- Data: Average illuminance is 405 lux, and U0 is 0.94
