Recommended Lighting Configuration Plan
Badminton Court Lighting Configuration Plan
- Power Consumption: 42W
- Installation Quantity: 24 units per court (12 units on each side)
- Installation Height: 5.5-6 meters

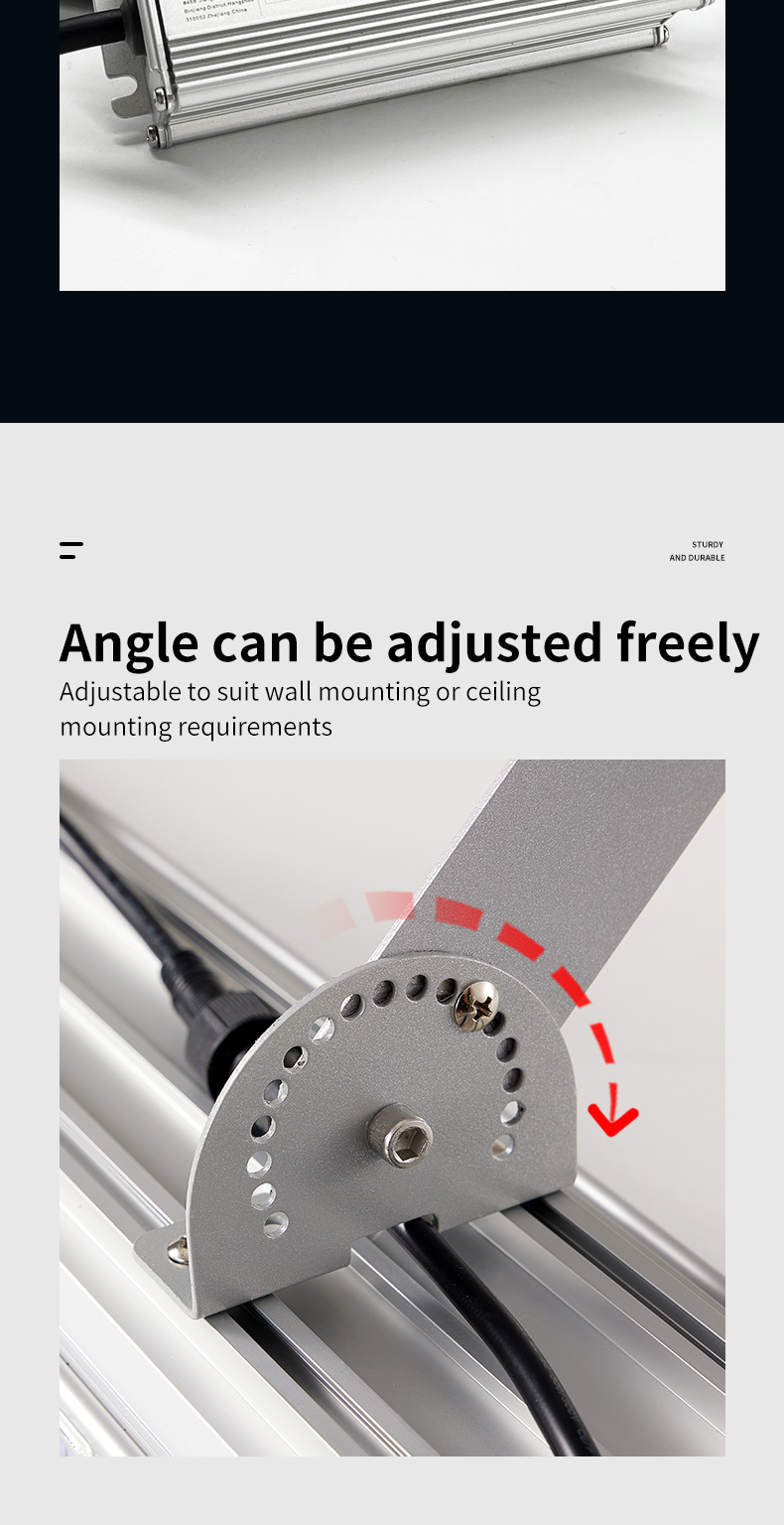

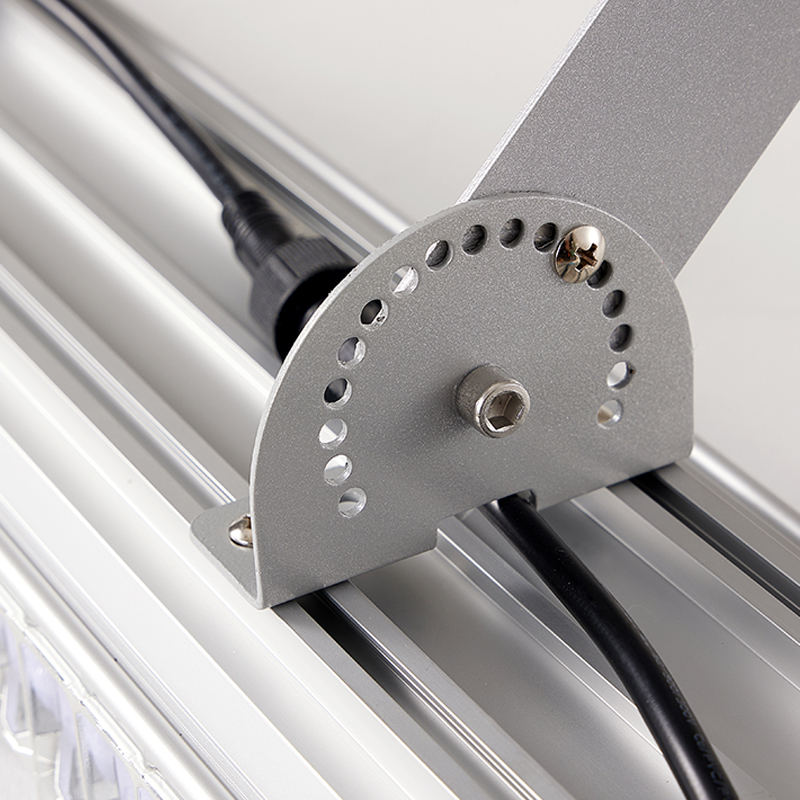

- Installation Angle: 30° inward tilt
- Data: Average illuminance is 320 lux, and U0 is 0.84
Recommended Lighting Configuration Plan
Pickleball Court Lighting Configuration Plan
- Power Consumption: 42W
- Installation Quantity: 24 units per court (12 units on each side)
- Installation Height: 5-6 meters
- Installation Angle: 30° inward tilt
- Data: Average illuminance is 320 lux, and U0 is 0.84
Recommended Lighting Configuration Plan
Indoor Padel Court Lighting Configuration Plan
- Power Consumption: 42W
- Installation Quantity: 50 units one court (17+17+8+8=50)
- Installation Height: 6 meters
- Installation Angle: 30° inward tilt
- Data: Average illuminance is 308 lux, and U0 is 0.85

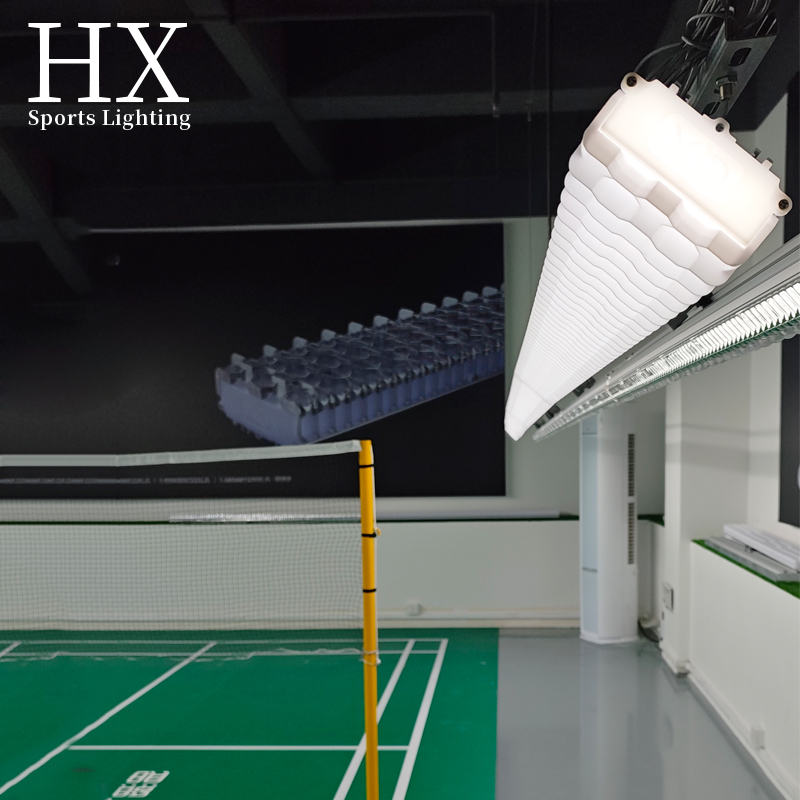

Indoor Badminton and Pickleball Court Lighting

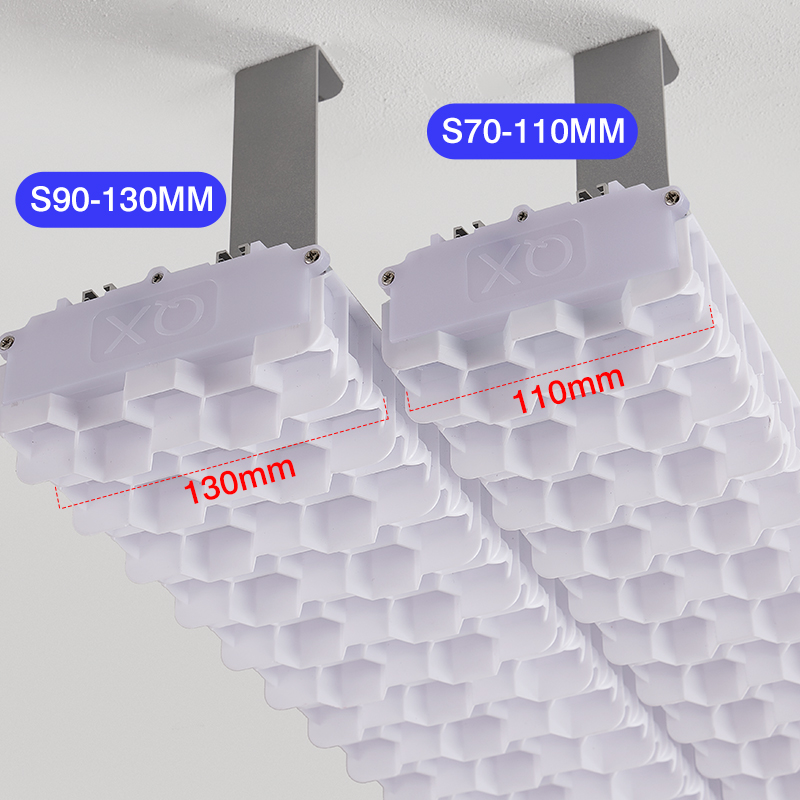

S70/S90 Indoor Badminton and Pickleball Lighting with Anti-Glare Control
Indoor court planning verifies mounting height, court count and fixture quantity.

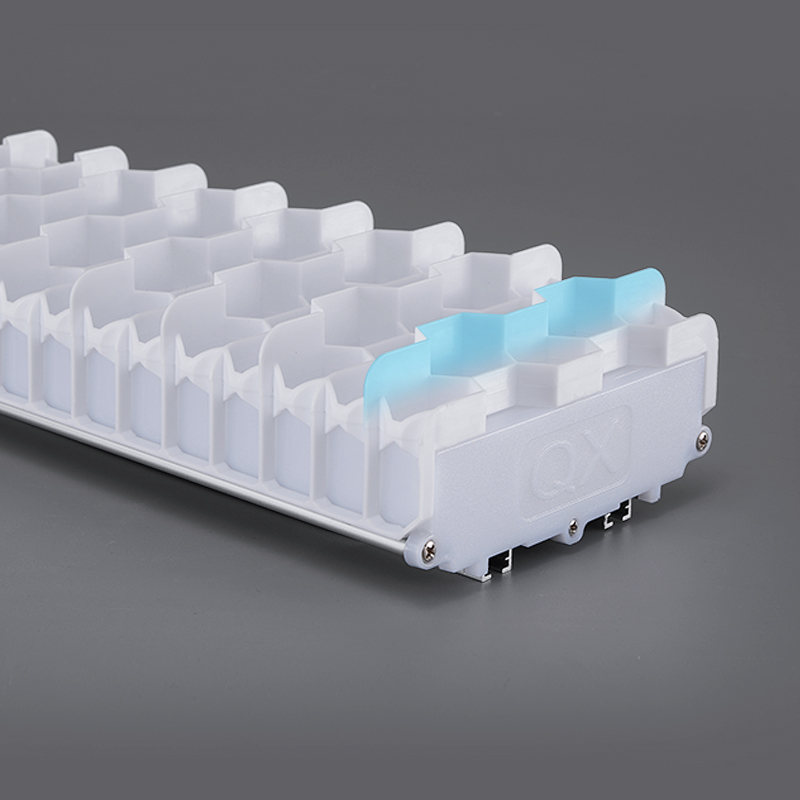

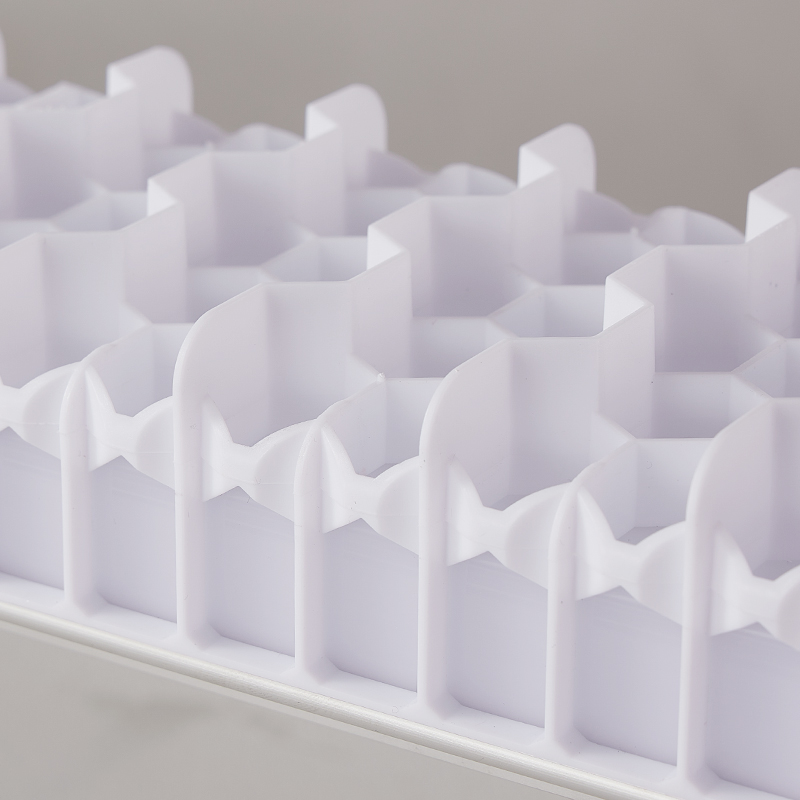

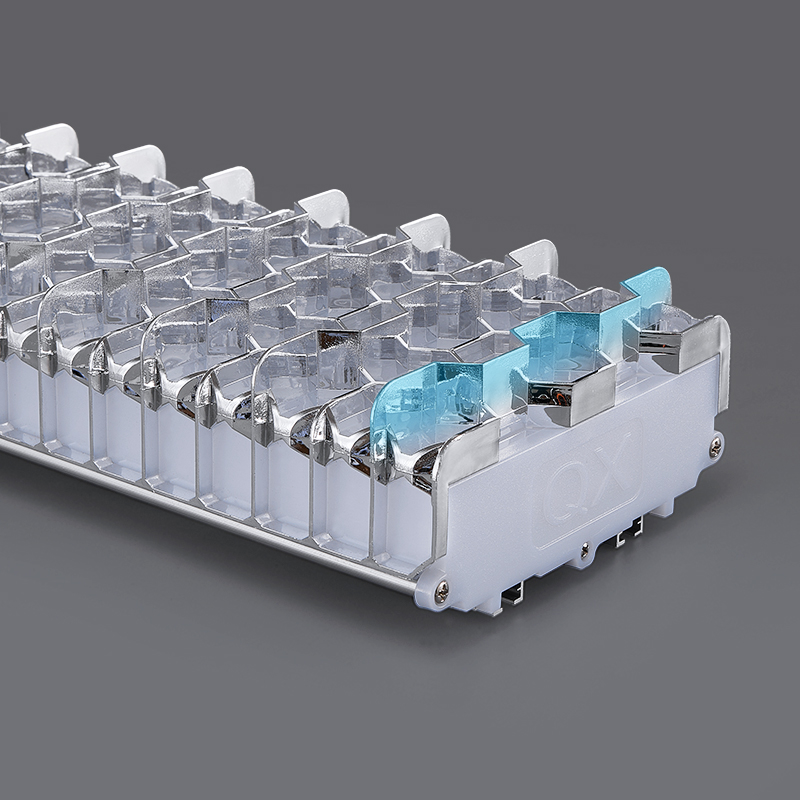

Anti-glare design supports badminton, pickleball and indoor padel applications.

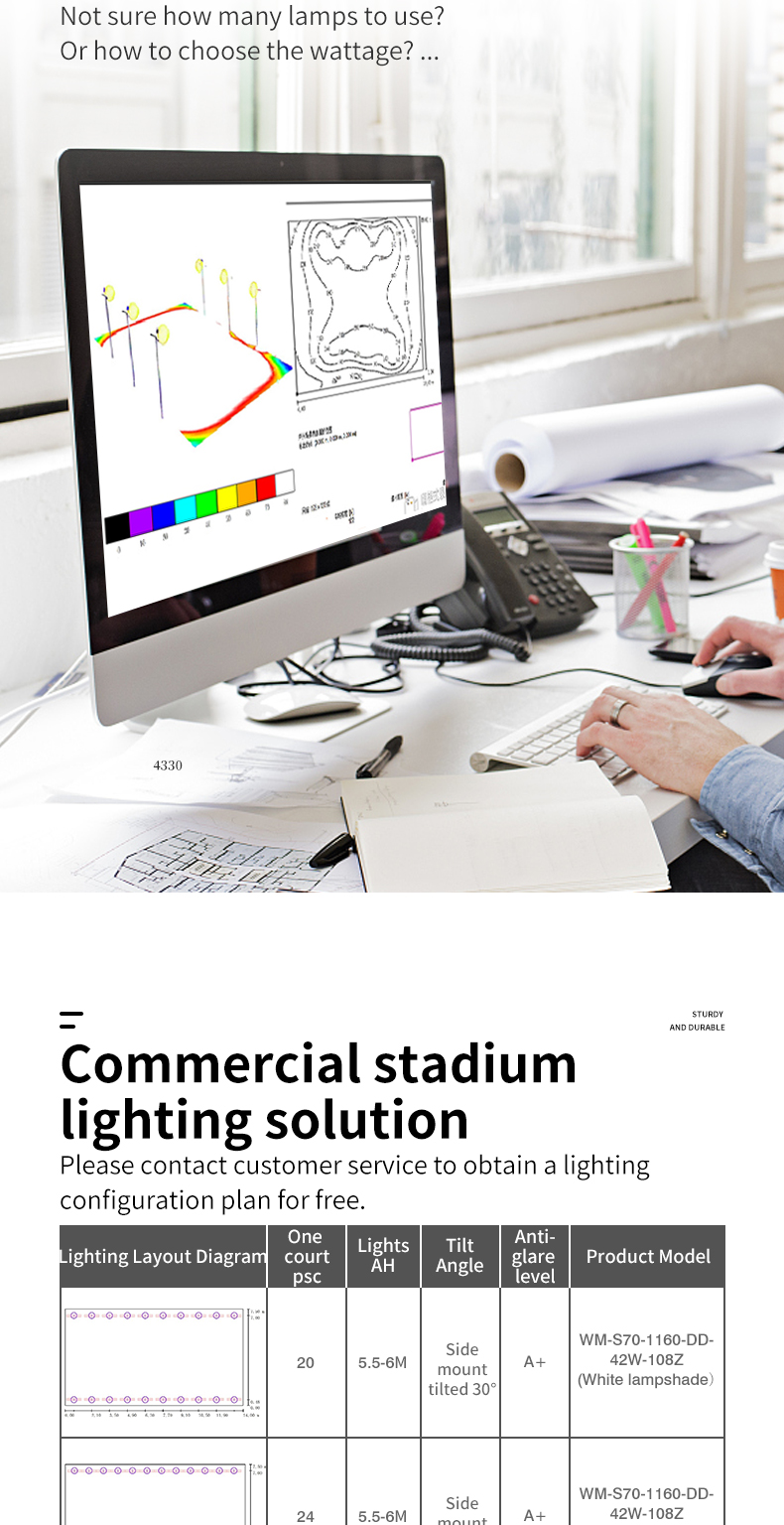

Final photometric layout confirms lux level and uniformity ratio.
Padel layout reference: Huasport WM-S70-1160-DD-42W-108Z uses S70 1.16 m fixtures with 50 fixtures per court in a 17+17+8+8 layout at 6 m mounting height. View the Huasport Padel Court Lighting Guide.
