Australia Badminton Hall Lighting: SAA S90 60W Checks Before Opening

A new badminton hall is easiest to judge before it becomes busy. The floor is clean, the court lines are visible, and every long-bar row can be checked from the side line, the baseline, and the rear court. That quiet moment is valuable because a lighting mistake that looks small from a doorway can become tiring once players start smashing under it for two hours.

For Australian venues planning badminton court lighting, the useful question is not only whether the hall looks bright. The better question is whether the player can look up, track the shuttle, and move between courts without meeting a harsh line of light from the wrong angle.

Fast Read for Australian Hall Owners

One practical planning option for an Australian indoor badminton court is the Huasport SAA-S90-1160-FLP-60W-108Z long-bar fixture. The reference layout uses 24 fixtures per court, with 12 fixtures on each side, mounted at around 6 m and aimed 30-degree inward. Twelve 1.16 m fixtures form a 13.92 m continuous side row, which fits the 13.4 m main playing-area length and keeps the row visually aligned with the court.

This S90 option is built for commercial training and recreational badminton halls that want around 400-500 lux+ average illuminance as a planning target. If the venue wants competition use, the design should be reviewed against a 500 lux+ average requirement and checked with the actual roof height, court quantity, surrounding wall color, and player viewing positions.

The Australia photos here are same-country court references. They show court environment, roof structure, long-bar rows, and player-view conditions. They should not be used alone to claim the exact installed model or final measured lux result. The model and layout above are the S90 SAA planning option to quote against when the project record confirms it fits the hall.

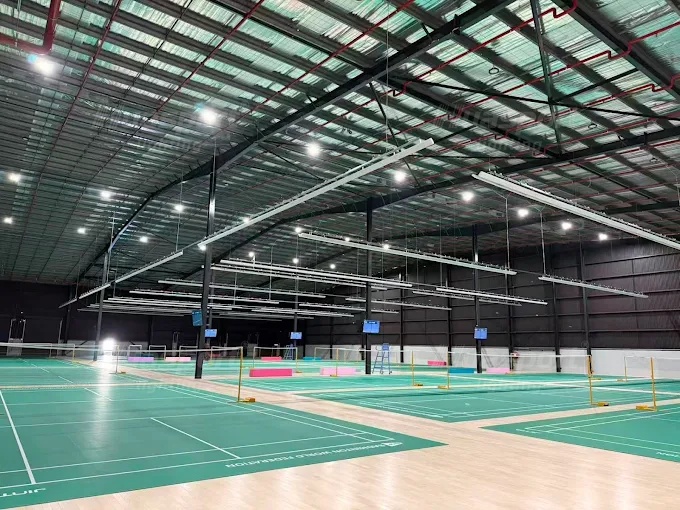

Why the Empty Hall View Matters

An empty badminton hall removes the distractions. There are no moving players, no crowd, and no bags around the sideline. What remains is the lighting plan itself.

From this view, a buyer can ask several practical questions before accepting the installation:

1. Do the fixture rows run with the court instead of cutting across the player’s upward view?
2. Are the rows close enough to the playing area to support rear-court brightness?
3. Is the side-line viewing angle comfortable when a player looks up for a clear or smash?
4. Are neighboring courts receiving stray brightness without creating a hard glare band?
5. Can the installer still adjust aiming before the hall opens?

Those checks are especially important in larger Australian halls because multi-court spaces often have dark roof areas, high steel structure, and side-by-side courts. A camera at the entrance can make the venue look bright, but a player standing near the rear court may see something different.

The S90 60W Layout in Plain Terms

The SAA-S90-1160-FLP-60W-108Z is a 1.16 m S90 fixture with a 13 cm body width. In this layout, each badminton court uses two side rows:

Item	Australia S90 60W Planning Reference
Model	SAA-S90-1160-FLP-60W-108Z
Fixture family	S90 1.16 m long-bar badminton light
Body width	13 cm
Power	60W
Luminous flux reference	5130 lm
Fixtures per court	24 fixtures
Fixtures per side	12 fixtures
Mounting height	Around 6 m
Aiming	30-degree inward tilt
Row length	13.92 m continuous row
Main playing-area length	13.4 m
Planning illuminance	400-500 lux+ for commercial training and recreational use

The layout is simple on purpose. A continuous side row is easier for the installer to align, easier for the owner to inspect, and easier for players to read visually from court level. Gaps and inconsistent angles can create an uneven feeling even when a lux meter reading looks acceptable at a few points.

The Detail Buyers Usually Miss: Player-View Glare

Badminton is different from many indoor sports because players look upward so often. A fixture that seems fine from the audience side can still sit in the player’s line of sight during a lift, clear, or defensive shot.

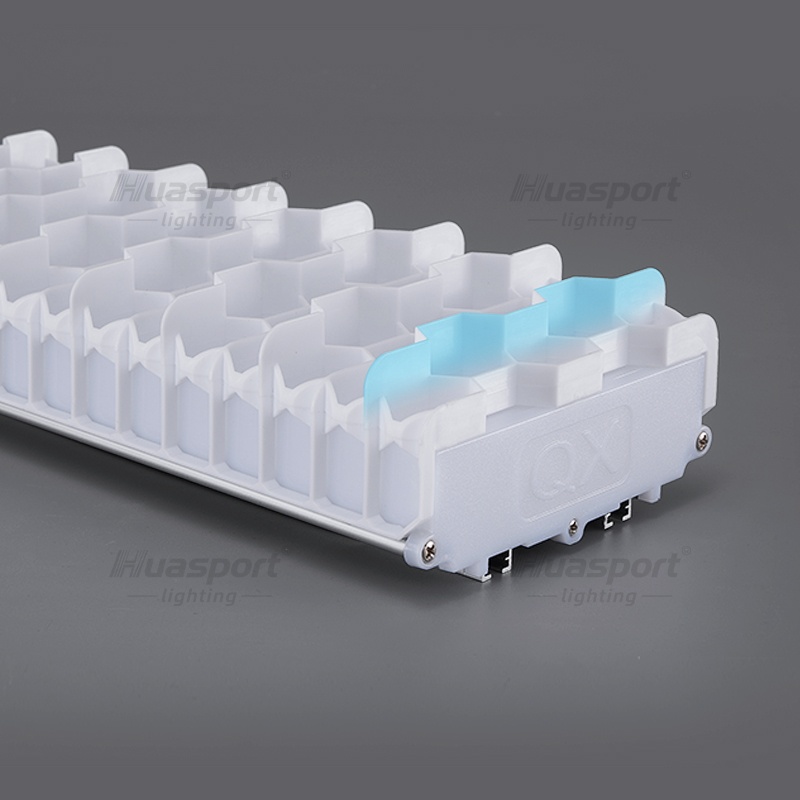

This is where the S90 structure matters. The fixture uses a double-layer honeycomb anti-glare grille to reduce side glare from common player viewing angles. The goal is not to promise that glare disappears in every possible position. The goal is to control the light so the court can feel more comfortable during repeated overhead play.

For buyers comparing products, the visible grille is worth checking in real product photos. A single shallow grille may look clean in a catalog, but a deeper double-layer honeycomb structure gives the fixture more physical control over side light. In badminton, that difference is felt during play, not only seen in a close-up.

Why the Bracket and Aluminum Body Are Part of the Lighting Result

The 30-degree inward tilt is not a decorative number. It is how the side row sends light into the playing area while avoiding a harsh straight-down strip beside the court. On site, the bracket normally needs to hold the same angle across all 12 fixtures on one side.

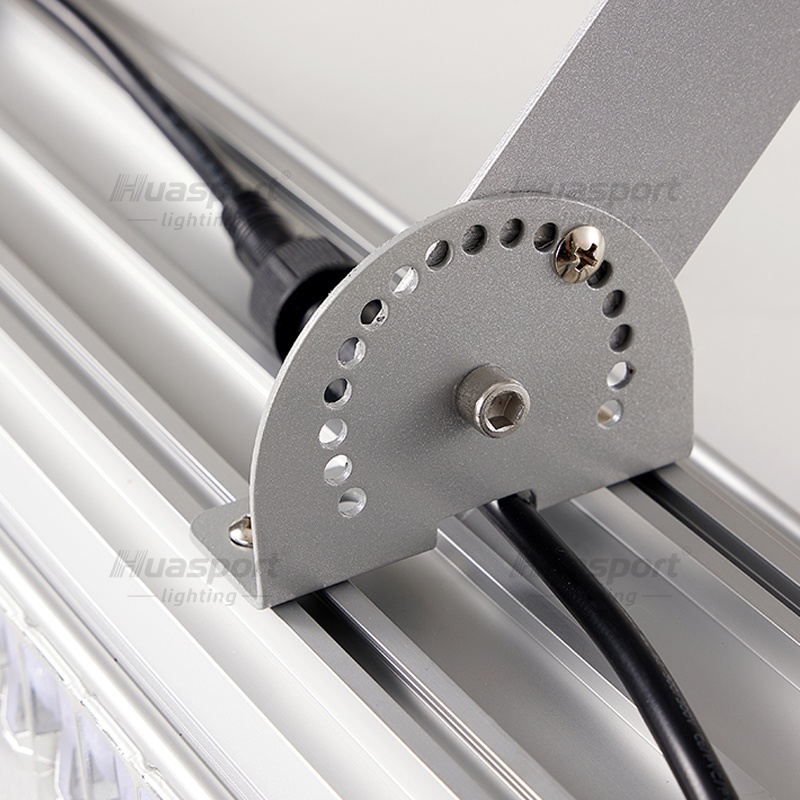

Huasport’s adjustable bracket is fixed to the aluminum profile, not to a weak plastic body. That matters because the bracket is part of the aiming system. If the fixing point is soft, the row can lose alignment over time, especially in a commercial hall where cleaning, vibration, and maintenance activity happen around the roof structure.

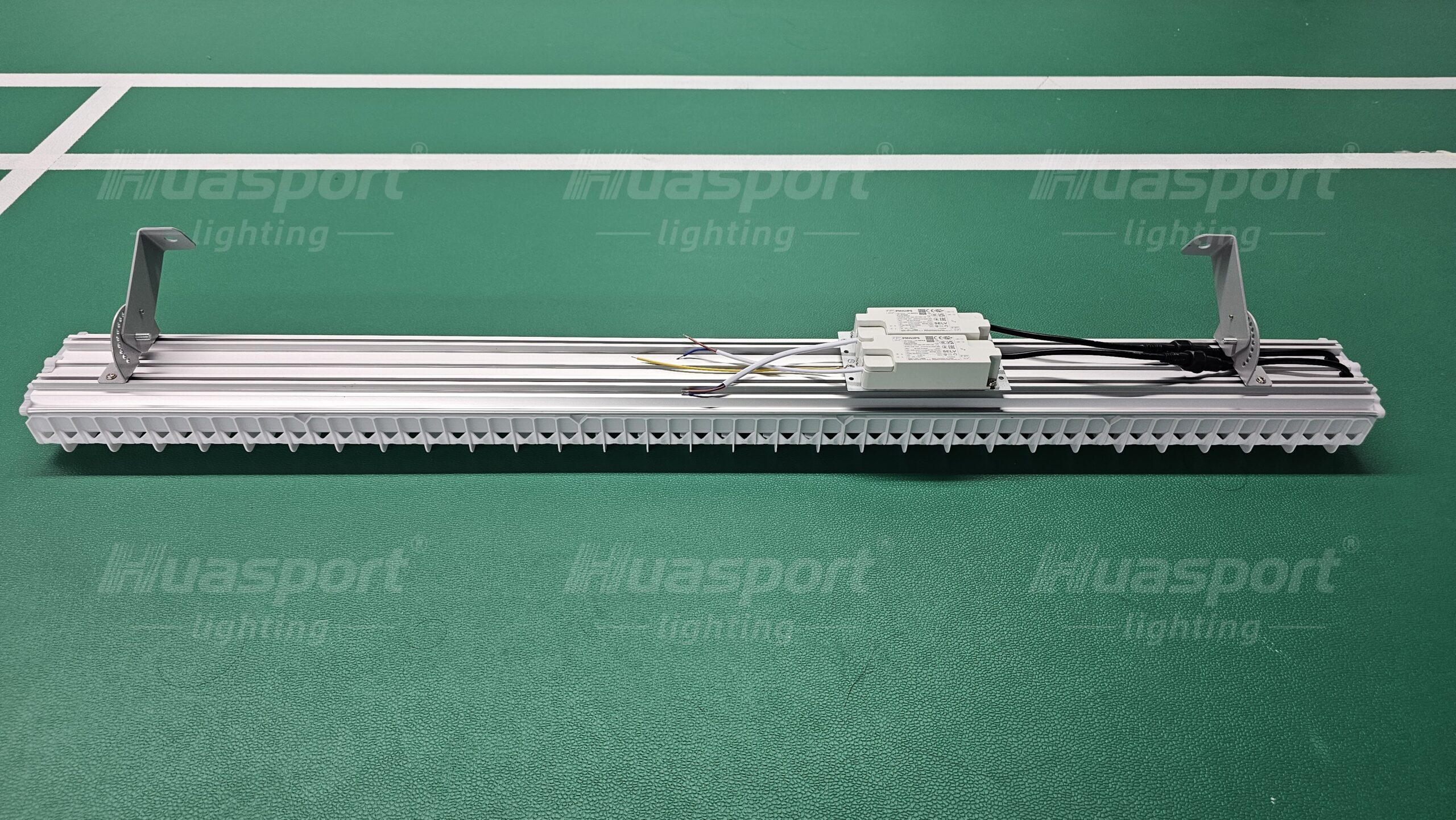

The back of the fixture uses a thickened aluminum profile. Aluminum supports heat dissipation for the driver and LED chips, and it gives the bracket a stronger base. For an owner, this detail is less exciting than a bright court photo, but it is one of the parts that decides whether the row stays reliable after the opening week.

What to Verify Before Quotation

Before finalizing an Australian badminton hall quotation, collect the information that changes the lighting result:

1. Court quantity and whether courts are side-by-side or separated.
2. Clear mounting height above the playing area.
3. Roof structure photos from both ends of the hall.
4. Wall and ceiling colors, especially dark curtains or dark roof zones.
5. Whether each court can use 12 fixtures per side in a continuous row.
6. Whether the 30-degree inward angle has enough clearance from beams, nets, and walkways.
7. Whether the hall needs commercial training brightness or competition-level review.
8. Player-view photos from the baseline, rear court, and side line.

This information helps Huasport check whether the SAA S90 60W option is the right fit, or whether the hall needs a different mounting plan before the buyer commits to the order.

Connecting the Hall Plan With Other Court Types

Badminton should stay the main reference when the hall is built around shuttle tracking. If the same facility also plans indoor pickleball courts, the lighting conversation changes because the ball is lower, slower, and more often viewed across the net rather than overhead. That comparison belongs on a separate pickleball court lighting plan.

Padel is different again. Glass walls, cage reflection, and corner visibility create a different lighting problem from a standard badminton hall. Owners comparing both businesses can review padel court lighting separately instead of copying a badminton layout into a glass-wall court.

When This Australia S90 Plan Fits

This layout is a strong reference for Australian indoor badminton halls with around 6 m mounting height, clear side-row positions, and a need for clean commercial training light. It is most useful when the owner wants a tidy long-bar installation that can be inspected from court level before the venue opens.

For a quotation, send the court plan, roof photos, mounting height, target use, and any photos taken from the player’s view. Huasport can then check the SAA S90 60W row position, bracket angle, and glare risk before confirming the final model and quantity.

More technical articles are available in the Huasport technical articles archive. To discuss a specific Australian badminton hall, contact Huasport through the contact page.

FAQ: Australia S90 Badminton Hall Lighting

What model is used in this Australia badminton hall lighting plan?

The planning reference uses SAA-S90-1160-FLP-60W-108Z, a Huasport S90 1.16 m 60W long-bar badminton court light.

How many fixtures are used per court?

The reference layout uses 24 fixtures per badminton court, with 12 fixtures on each side in continuous rows.

Why use 30-degree inward aiming?

The 30-degree inward angle helps direct light into the playing area while reducing uncomfortable side glare from player viewing positions.

Can the same layout be used for pickleball or padel?

Not automatically. Pickleball and padel have different viewing angles, ball paths, and court structures, so they should be planned as separate court-lighting applications.
