Australia Badminton Hall Lighting: SAA S90 60W Wall-Side Court Checks

In a large Australian badminton hall, the court beside a wall often tells the truth first. The floor can look clean from the entrance, and the centre courts may feel bright, but the wall-side court can still give players a sharper view of the fixture row when they look up from the back line.

This Australia badminton hall lighting note uses the Huasport SAA-S90-1160-FLP-60W-108Z as a planning reference. The layout uses 24 fixtures per court, 12 fixtures on each side, 6 m mounting height and 30-degree inward aiming. The purpose is simple: help the venue owner check whether the S90 60W row works from the player’s real sightline, not just from a wide photo of the hall.

Why Wall-Side Courts Need Their Own Check

A wall-side court has fewer neighboring rows on one side and a darker visual background on the other. That can change how the row feels to a player. A centre court may receive light from both sides, while the court near the wall asks the fixture row to do more of the work.

The first check should start near the rear court. Stand close to the back line, look upward along a high clear, then turn toward the sideline. If the row pulls attention away from the shuttle path, the issue is not solved by floor brightness alone.

The Huasport Badminton Court Lighting guide follows the same field habit: check the court from the playing position, then confirm fixture quantity, mounting height, row length and aiming angle.

The SAA S90 60W Planning Reference

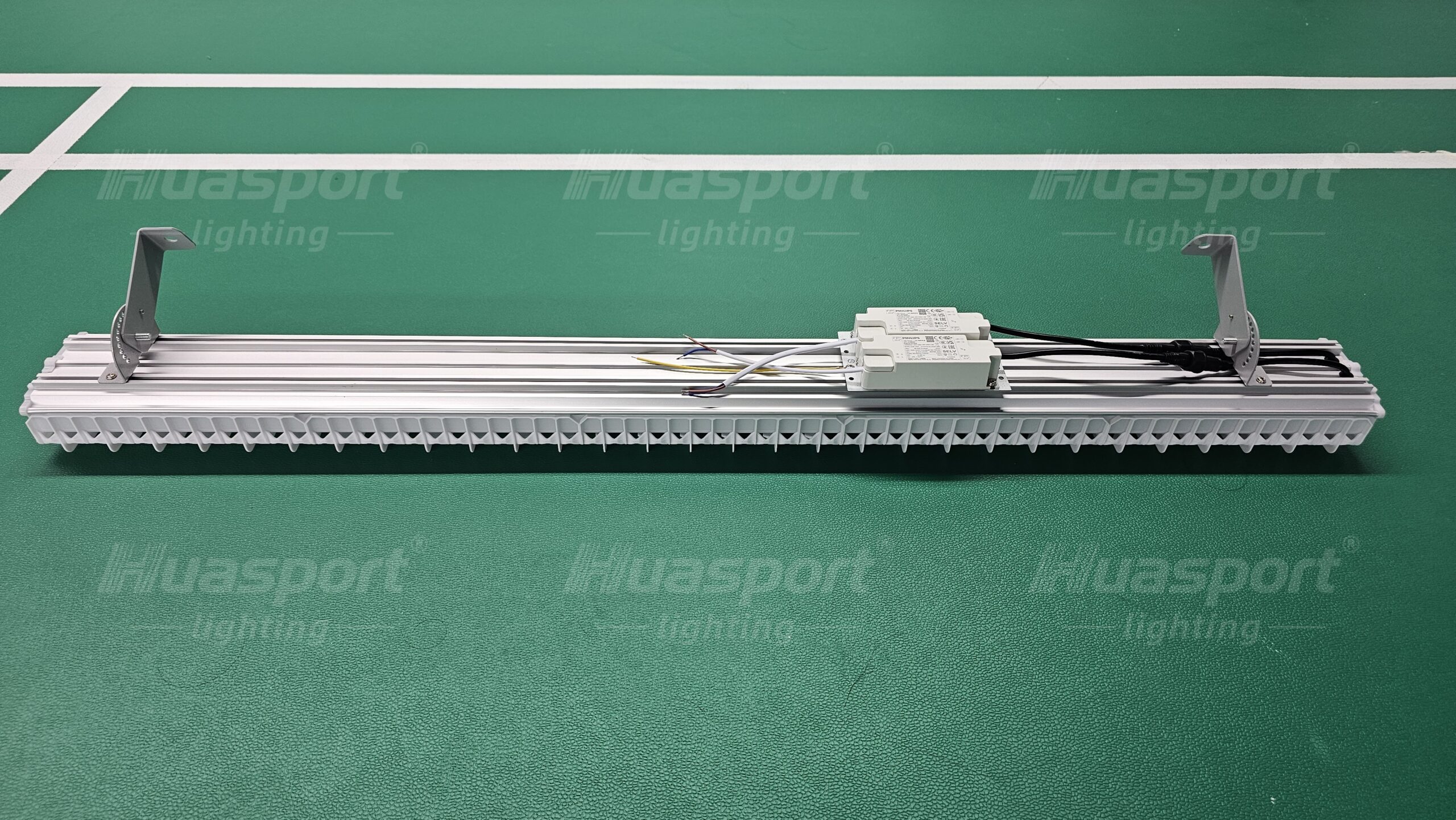

For Australia, the confirmed planning data uses an SAA 60W long-bar fixture reference. In this article, the selected model is SAA-S90-1160-FLP-60W-108Z, a 1.16 m S90 fixture with a 13 cm body width and double-layer honeycomb grille.

Each side of the court uses 12 fixtures. Twelve 1.16 m fixtures create a 13.92 m continuous row, which covers the 13.4 m main playing-area side of a badminton court. The reference mounting height is 6 m, with the row aimed 30 degrees inward.

These figures form a planning option. Photos can show the hall shape, side-wall condition, court spacing and visible row direction. They should not be treated as proof of the exact installed model unless project records confirm the model, fixture count and final acceptance data.

Direct View and Side View Are Different Problems

Players describe both problems as glare, but they come from different viewing angles.

Direct-view glare appears when a player looks toward the fixture face during a serve, clear, lift or overhead shot. The check belongs near the back line and both sidelines, because those are the places where players look upward during real play.

Side glare appears along a long row. When the row runs beside the court, the player may see light from the side of the fixture while moving across the rear court. This is why the optical structure matters on a long-bar fixture. A plain bright strip can look acceptable in a product photo and still feel sharp from the side of the court.

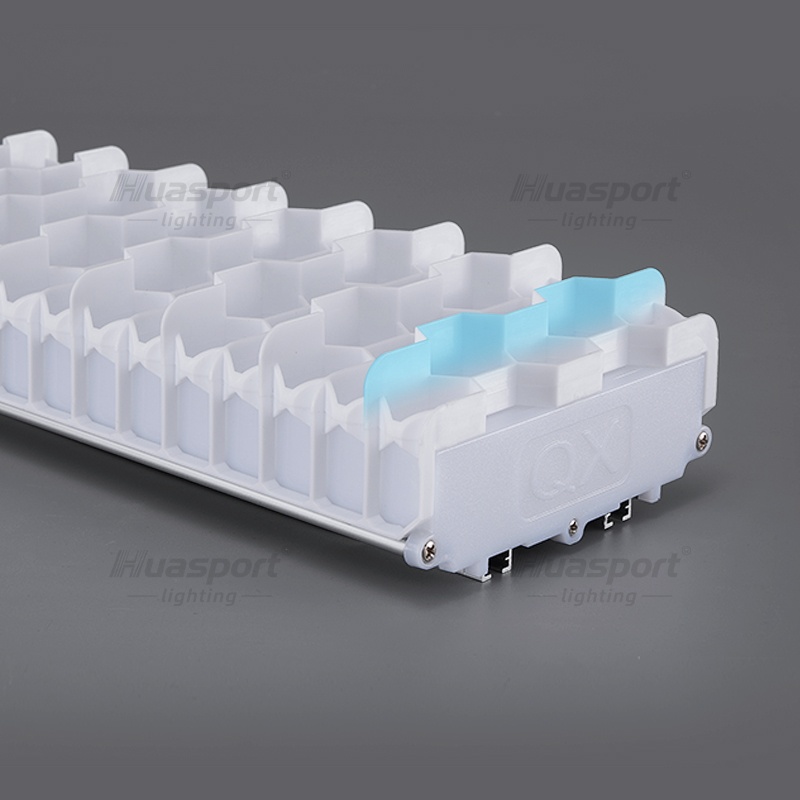

The S90 double-layer honeycomb grille is designed to reduce side glare from player viewing angles. It should be described as glare control, not as a promise that every angle becomes glare-free. A real hall still needs a player-view check after the rows are placed and aimed.

Why the 13 cm S90 Body Matters

The S90 body is 13 cm wide. That width gives the optical structure room for a double-layer grille, which is useful when the fixture row sits close to the player’s upper field of view. In a wall-side court, the row, wall surface and roof structure can all sit in the same visual area as the shuttle path.

The buyer should therefore avoid judging by wattage alone. SAA 60W and 5130 lm are useful planning data, but the fixture body, grille depth, suspension position, mounting height and aiming angle decide what the player actually sees.

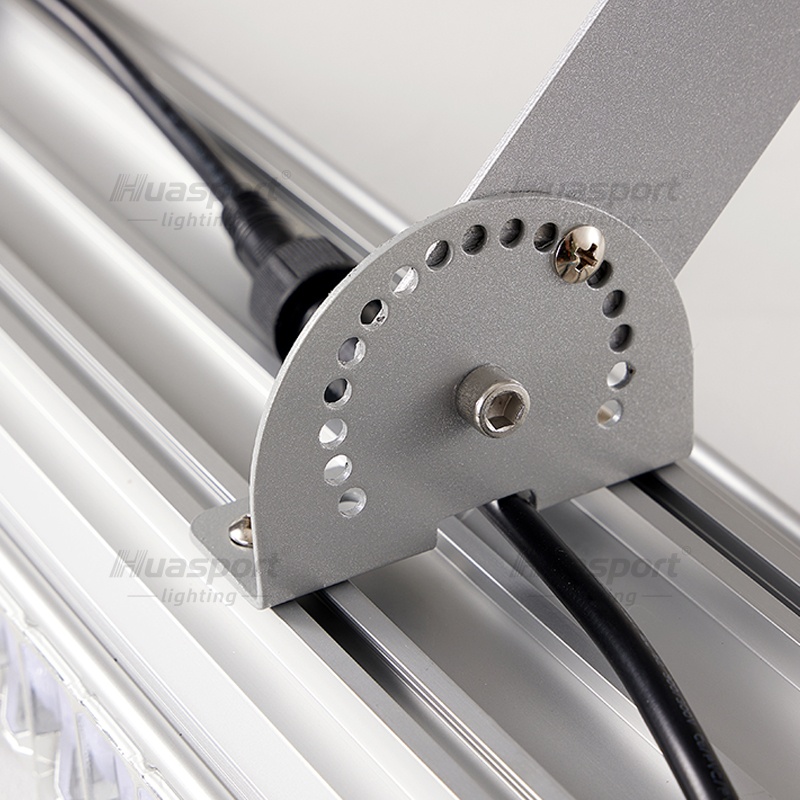

The 6 m reference layout uses 30-degree inward aiming. The adjustable bracket should keep that angle repeatable from fixture to fixture. On Huasport long-bar fixtures, the bracket is fixed to the aluminum profile, giving the row a stronger fixing base than a weak plastic section would provide.

What to Check on Site Before Quotation

Before an Australian venue owner asks for a final quote, the wall-side court should be checked in the same way a player uses it:

1. Confirm whether the court is wall-side, end-court or centre-court.
2. Stand near the rear line and look up through a high clear path.
3. Check both sidelines, especially the side closest to the wall.
4. Confirm SAA-S90-1160-FLP-60W-108Z as the selected planning model.
5. Confirm 24 fixtures per court, with 12 fixtures on each side.
6. Confirm 6 m mounting height and a structure that can support continuous rows.
7. Confirm 30-degree inward aiming across the whole row.
8. Review whether 400-500 lux+ meets the venue’s training or club-use target.

These checks make the quote more practical. They also help the buyer avoid a layout that looks bright in a wide photo but feels sharp during overhead play near the wall.

What the Australia Photos Can Confirm

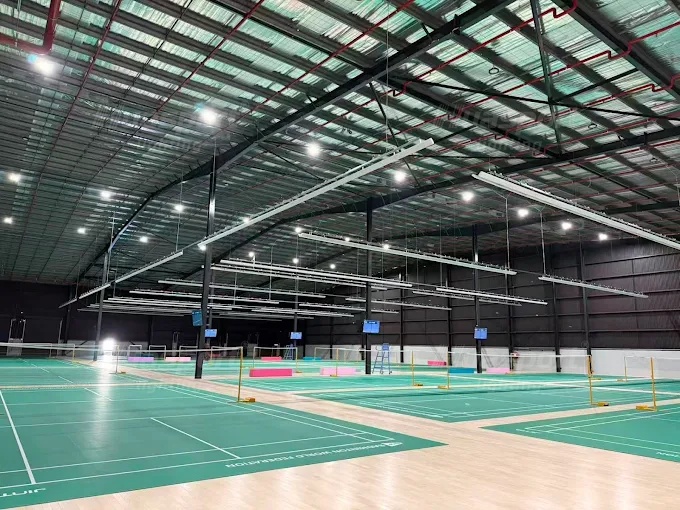

The Australia case photos are useful because they show large indoor badminton spaces with visible long rows, dark roof structure, wall-side courts and multi-court spacing. They help buyers see where player-view questions should be asked.

The photos cannot confirm every technical value by themselves. The exact fixture model, certification file, fixture count, output, suspension method and final lux reading should be checked in the project record before the quotation is locked.

That distinction keeps the planning honest. A photo is good for reading the environment. A quotation still needs the model, layout and acceptance target written down.

Where Pickleball and Padel Differ

The same habit of checking from the player’s view also helps other courts, but the layout should not be copied blindly. Pickleball has a lower net, a different ball path and different player movement. Buyers should compare it with the Huasport Pickleball Court Lighting guide before assuming that the badminton row layout is correct.

Padel is different again. Glass walls, fencing and four-side lighting create reflection and side-view questions that do not match a two-side badminton layout. The Huasport Padel Court Lighting layout uses its own 50-fixture court logic.

For Australian badminton halls, keep the wall-side court review narrow and checkable: SAA-S90-1160-FLP-60W-108Z, SAA 60W, 5130 lm, 24 fixtures per court, 12 fixtures per side, 6 m mounting height, 30-degree inward aiming, 13.92 m continuous rows and a rear-court player-view check before final quotation.
