Malaysia Badminton Hall Lighting: S90 42W Peak-Hour Checks for Large Multi-Court Venues

In a busy Malaysian badminton hall, the real lighting test starts when every nearby court is active. Empty-court photos can look clean, but peak-hour play adds moving players, shuttle tracking, glass reflections, waiting areas and neighbor-court light rows into the same field of view.

For a large indoor venue, a practical Huasport planning reference is the S90 1.16 m 42W long-bar fixture, model WM-S90-1160-DD-42W-108Z, with 24 fixtures per badminton court, 12 fixtures per side, around 5 m mounting height and 30-degree inward aiming. The goal is not only to make the floor bright. The more useful check is whether players can keep reading the shuttle from the rear court, sideline and high-clear positions without uncomfortable side glare.

Quick Planning Reference for Malaysia Badminton Halls

For Malaysia indoor badminton court lighting, Huasport can use the S90 42W planning option as a clear starting point for commercial training halls. One court uses 24 fixtures, arranged as 12 continuous 1.16 m fixtures along each side. Each 13.92 m lighting row covers the 13.4 m main playing-area length, with the row aimed inward at 30 degrees from about 5 m mounting height.

This layout is most useful when the venue owner wants a neat continuous-row look above multiple courts, with a controlled player-view angle rather than scattered roof lights. For a full venue plan, buyers should still confirm court count, ceiling height, roof structure, row spacing, cable route and target illuminance before final quotation.

Item	S90 Malaysia Planning Reference
Fixture model	WM-S90-1160-DD-42W-108Z
Fixture type	1.16 m long-bar anti-glare badminton court light
Fixtures per court	24 fixtures
Per side	12 fixtures per side
Row length	13.92 m continuous row
Main playing-area side	13.4 m
Mounting height	Around 5 m
Aiming	30-degree inward tilt
Use target	300-400 lux+ for commercial training and recreational play
Competition note	Review 500 lux+ separately if competition use is required

Why Peak-Hour Photos Tell a Different Story

A single empty court can make almost any lighting plan look acceptable. The camera sees clean lines, bright flooring and no player pressure. A multi-court hall during play is less forgiving.

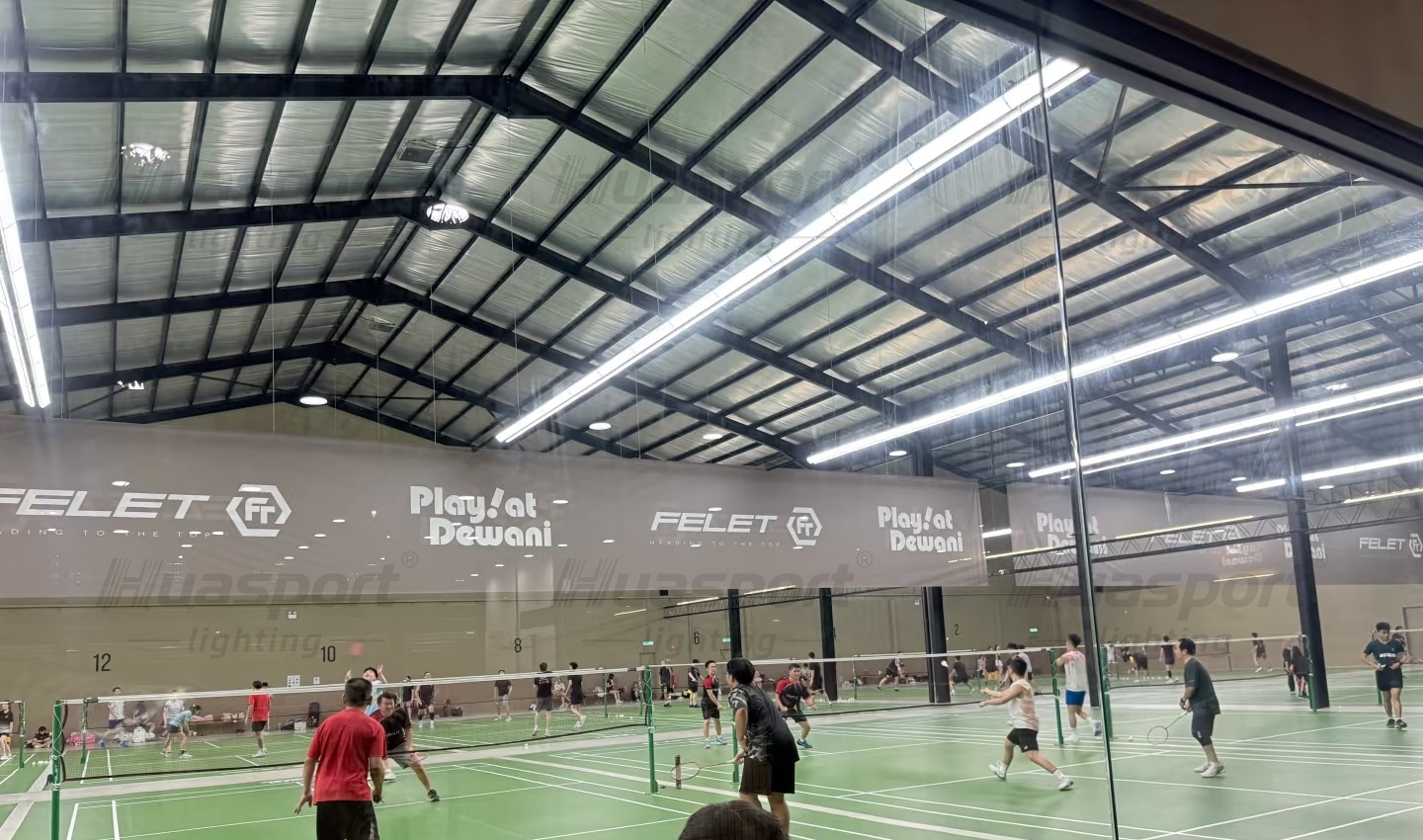

In the Malaysia reference image, several courts are active at once. Players stand at different depths, and the long fixture rows run above the courts while reflections appear on the glass. That is exactly when a venue owner should ask the harder questions. Can a player on the rear court lift the shuttle and still read its path? Does the light row from the next court enter the eye line? Does the waiting area see a harsh side view from the fixtures?

Those questions are more useful than asking for wattage alone. Wattage is only one part of the experience. The same fixture can feel different when the ceiling height, roof color, wall finish, court spacing and aiming angle change.

What the S90 Adds to This Kind of Hall

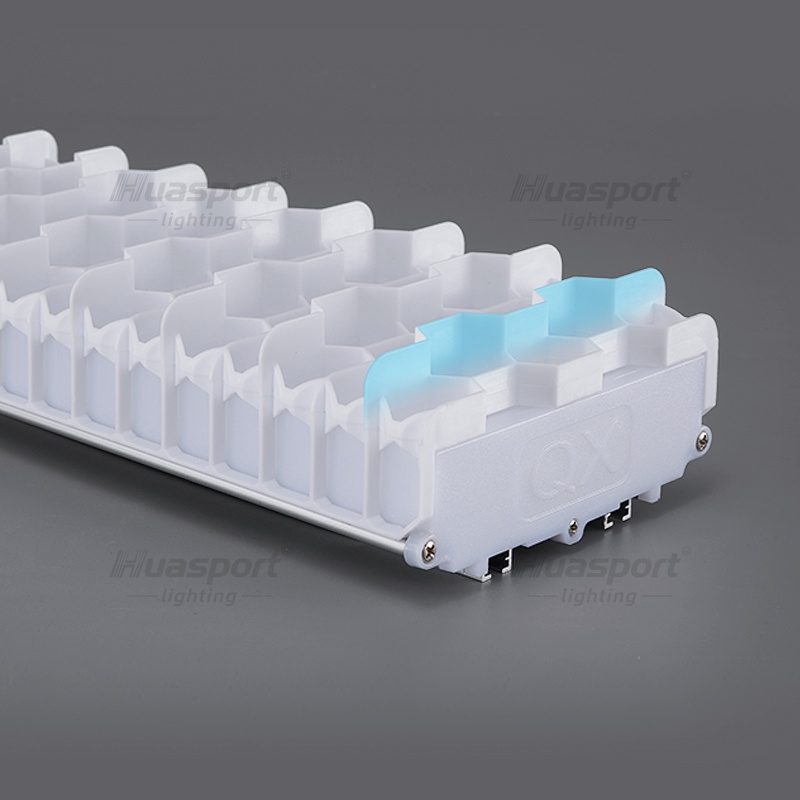

The S90 body is wider than the S70 body, with a 13 cm width that gives the optical structure more room. For badminton halls where players often look upward for clears, lifts and overhead shots, that optical space matters. The double-layer honeycomb grille helps reduce side glare from the player viewing angle, especially when fixtures form a long line along the court.

That is why anti-glare cannot be treated as a label printed on a product page. It has to be checked from the court. Stand near the back line, look along the sideline, then follow the imagined shuttle path upward. If the side face of the lighting row dominates the view, the layout needs review.

A Better On-Site Check Before Quotation

For Malaysian venue owners comparing badminton court lighting options, the most useful pre-quotation check is simple.

Walk the hall the way a player sees it.

Start from the rear court, not the entrance. The entrance view usually makes the hall look brighter because the viewer is not tracking a shuttle. From the rear court, the player looks into the upper space again and again. That is where direct-view glare and side glare become easier to notice.

Then stand on the sideline between two courts. In a large hall, neighboring rows can help the space feel brighter, but they can also add visual noise. If the court spacing is tight, the light from the next row may enter the player view during serve receive, high clear or defensive lift. The S90 double-layer grille is meant to reduce that side-view discomfort, but the final result still depends on height, angle and row position.

Finally, check the waiting and viewing zones. Many commercial halls use glass partitions or open spectator areas. Buyers often share photos from these areas, but players do not play from there. A comfortable venue needs both views to make sense, so do not judge the layout only from the lobby or seating area.

30-Degree Aiming Needs Consistency

For this Malaysia S90 planning option, the fixture row should aim inward at around 30 degrees. The angle sounds like a small detail, but it decides where the luminous face is seen from and how much light reaches the main playing area.

If one row is aimed too flat, it may throw more light across the hall and expose more of the bright face to players. If another row is aimed too steeply, the court edge may feel different from the center. In a multi-court hall, inconsistent aiming is easier to feel than it is to spot in a single photo.

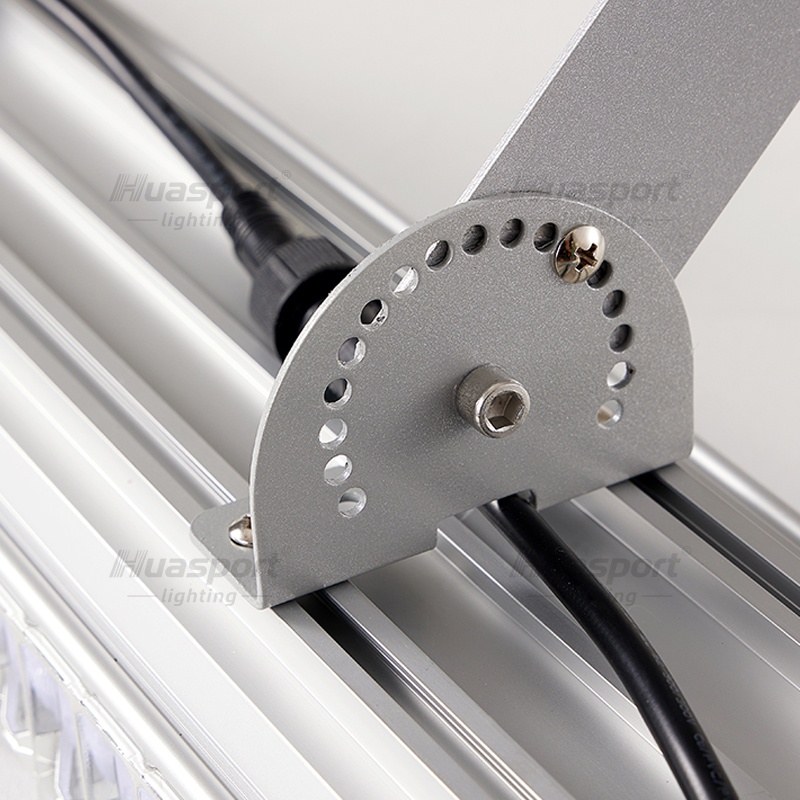

That is why brackets matter. The bracket should fix to the aluminum profile, not to a weak plastic section, and every row should be checked against the same aiming reference.

Heat, Body Structure and Long Operating Hours

Large badminton halls usually run long hours. Evening peak time, weekend training and group sessions can keep the lights on for many hours at a stretch. The fixture body therefore matters beyond appearance.

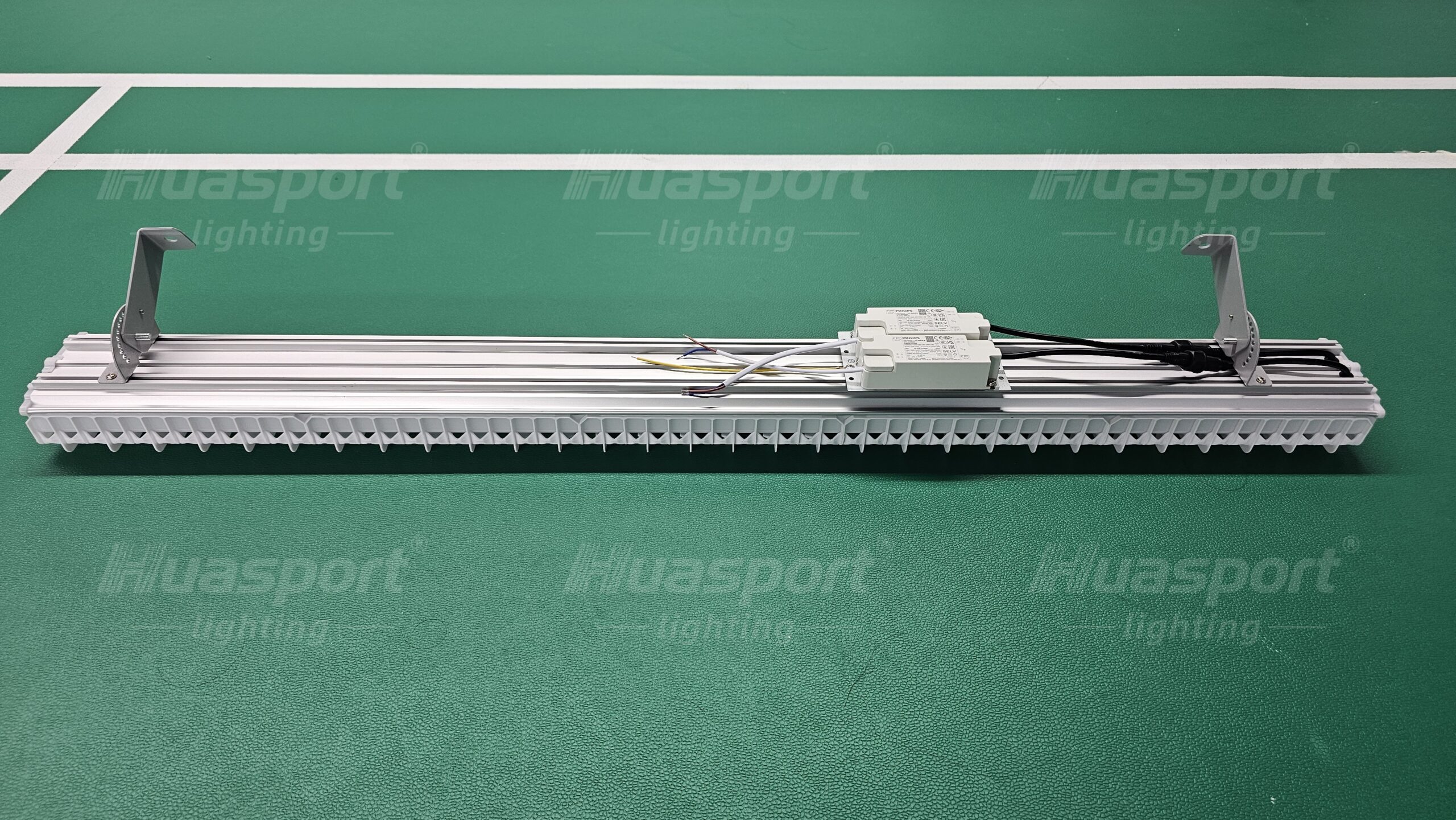

The S90 uses a thickened aluminum profile behind the optical face. This helps with heat management and gives the mounting bracket a stronger fixing base. For buyers, the practical point is easy to understand. A long-bar sports light is not only a strip of LEDs. It is a suspended system that must stay stable, manage heat and keep its aiming direction over time.

Where This Article Fits With Other Court Types

If you are planning a badminton venue first, start with the Huasport Badminton Court Lighting guide. It explains the court-use logic behind long-bar anti-glare layouts.

Many investors also compare badminton halls with pickleball or padel projects. The player-view idea is similar, but the layout is not the same. Indoor pickleball uses different movement patterns and a different court buffer, so the Huasport Pickleball Court Lighting guide should be reviewed separately. Padel needs glass-wall reflection and four-side fixture placement checks, so use the Huasport Padel Court Lighting layout instead of copying a badminton plan.

What Malaysia Buyers Should Verify Before Final Quote

Before asking for the final quotation, prepare the details below. It saves time and prevents a lighting plan from being based on a nice photo rather than the actual hall.

1. Confirm the exact number of badminton courts and whether the hall uses side-by-side, end-to-end or irregular court rows.
2. Measure the available mounting height and confirm whether the roof structure can hold continuous fixture rows.
3. Decide whether the goal is commercial training, recreational play or competition preparation.
4. Confirm whether the S90 42W continuous-row option, model WM-S90-1160-DD-42W-108Z, is the preferred planning reference.
5. Check whether each court can use 24 fixtures, with 12 fixtures per side.
6. Review whether 5 m mounting height and 30-degree inward aiming are realistic for the building.
7. Ask for a player-view check from the rear court, sideline and neighboring-court position.
8. Review whether 300-400 lux+ is enough, or whether competition use requires a separate 500 lux+ review.

FAQ

How many S90 fixtures are used for one Malaysia badminton court?

The Malaysia S90 42W planning reference uses 24 fixtures per court, with 12 fixtures on each side. The 12 fixtures form a 13.92 m continuous row, which covers the 13.4 m main playing-area side.

Is 42W enough for a commercial badminton hall?

For this Southeast Asia planning option, 42W per fixture is used with a 24-fixture continuous-row layout and a 300-400 lux+ target for commercial training or recreational play. If the hall is intended for competition, the average illuminance target should be reviewed separately at 500 lux+.

Why use S90 instead of asking only for wattage?

Wattage does not describe what a player sees when tracking a shuttle. S90 combines a 13 cm body, double-layer honeycomb grille, aluminum profile and adjustable bracket so the lighting plan can address side glare, row direction and player-view comfort, not just brightness.

Can the photo alone confirm the final model and layout?

No. A case photo can show the venue environment, court density, roof structure and player-view issues, but the final model and quantity should be confirmed by project records and quotation drawings before order.

What should a venue owner send before getting a quote?

Send court count, court layout, ceiling height, mounting structure photos, target use level, desired illuminance range and any current glare complaints. A rear-court photo and a sideline photo are especially helpful because they show what the player sees during real play.

For more project notes, browse the Huasport Technical Articles. If your Malaysia hall has a different roof height or court count, send the drawings and site photos through Huasport Contact Us so the layout can be reviewed against the actual building.

Practical Takeaway

A Malaysia multi-court badminton hall should not be judged only by whether the floor looks bright from the entrance. The better test is whether the player can keep tracking the shuttle from the rear court while nearby courts are active. For that type of venue, the Huasport S90 42W continuous-row planning option gives buyers a clear starting point: 24 fixtures per court, 12 per side, 5 m mounting height, 30-degree inward aiming and a double-layer grille built for player-view glare control.
