Philippines Badminton Court Lighting: S90 42W Checks for Blue-Wall Training Courts

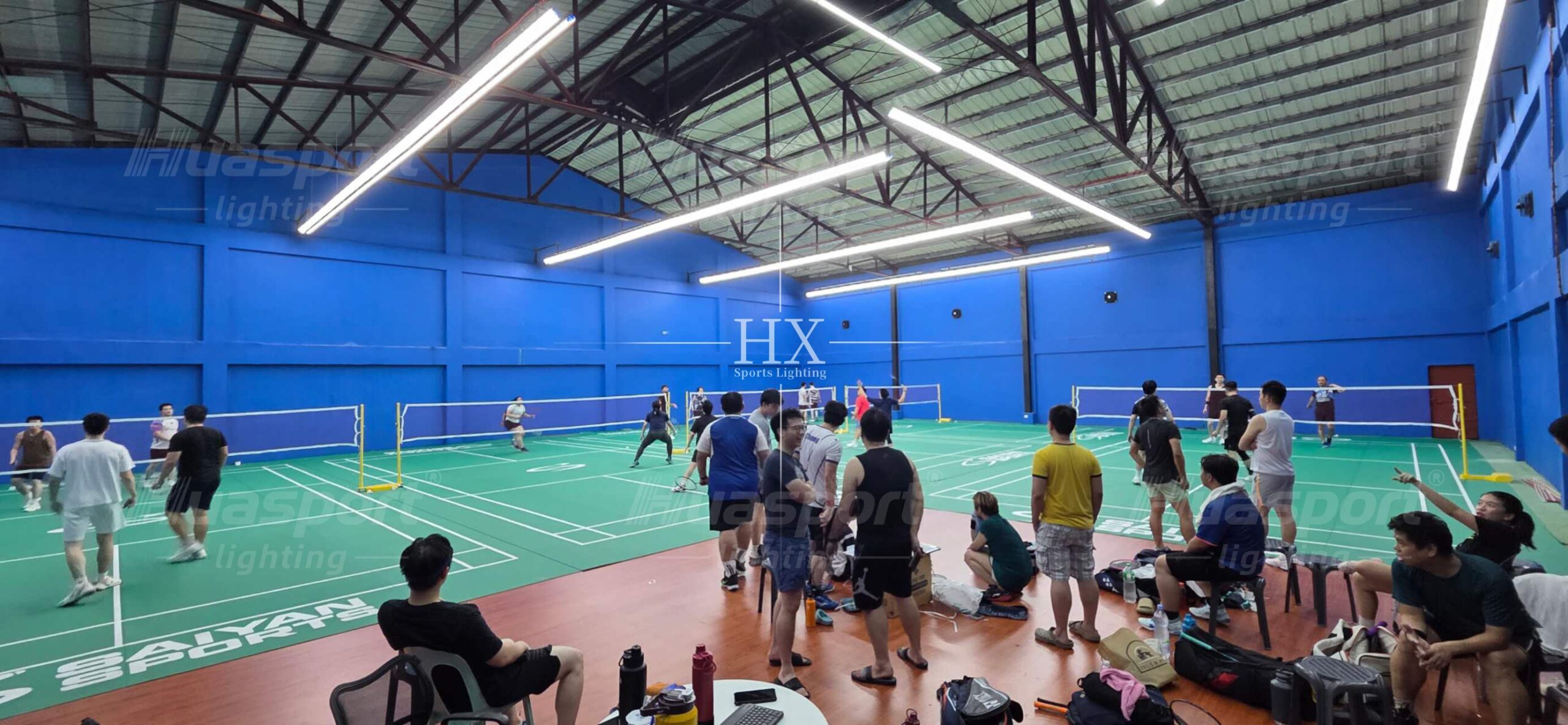

A busy badminton hall can look bright from the entrance and still feel different once a player stands on the back line. The blue-wall Philippines court reference makes that point quickly. There are several active courts, players waiting near the side zone, and long fixture rows above the playing area. For a hall like this, the first check is not only ground brightness. It is whether players can track a high shuttle without catching harsh side light from the next row.

One practical Huasport planning option for this type of Philippines indoor badminton court uses the `WM-S90-1160-DD-42W-108Z` S90 1.16 m anti-glare fixture. The layout uses 24 fixtures per court, with 12 fixtures on each side, installed at around 5 m and aimed 30 degrees inward. The 12 fixtures form a 13.92 m continuous row, which is designed to cover the 13.4 m main playing-area side length.

The One Layout Used In This Guide

This guide uses one model and one court layout, so the buyer can check one clear plan before quotation.

This is a planning reference for quotation and layout discussion. A photo can confirm the hall environment, court arrangement and visible fixture-row direction. It should not be used alone to claim the exact installed model, final lux result or final acceptance data.

Why This Philippines Hall Needs A Player-View Check

In a quiet empty court, lighting problems can be easy to miss. In a training hall, the side zone is busier. Players sit near the court, people walk between games, and several courts may run at the same time. The light row that helps one court can also enter another player’s upward view.

That is why Huasport usually checks badminton lighting from the player position, not just from the doorway. A player on the rear court looks upward during clears, lifts, defensive shots and high serves. If the fixture angle is too exposed from that position, the court may read bright on the floor but still feel tiring during play.

For this Philippines reference, the blue wall also matters. A strong wall color can make the hall feel visually heavier, and reflections from bright surfaces or nearby rows may change how the court feels. The layout should help the shuttle stand out while keeping the long light rows controlled from side-line and back-line viewing angles.

What Buyers Should Check On Site

Before a final quotation, the hall owner should check the court from real playing positions.

1. Stand at the back line and look upward along the shuttle path.
2. Check whether the opposite-side fixture row enters the eye line during clears and lifts.
3. Walk to the side zone where waiting players sit and check side glare from neighboring rows.
4. Confirm the mounting height is close to the planned 5 m reference.
5. Confirm the 30-degree inward angle is repeatable from row to row.
6. Check whether every court receives a similar row position, instead of only checking the center court.
7. Confirm whether the expected use is commercial training, recreational play or competition.

The sixth check is easy to skip. Multi-court halls can have one court that feels comfortable and another court that catches more side light because of roof beams, wall position or neighboring rows. Court-by-court checking gives the buyer a cleaner acceptance process.

Why The S90 Structure Matters In This Layout

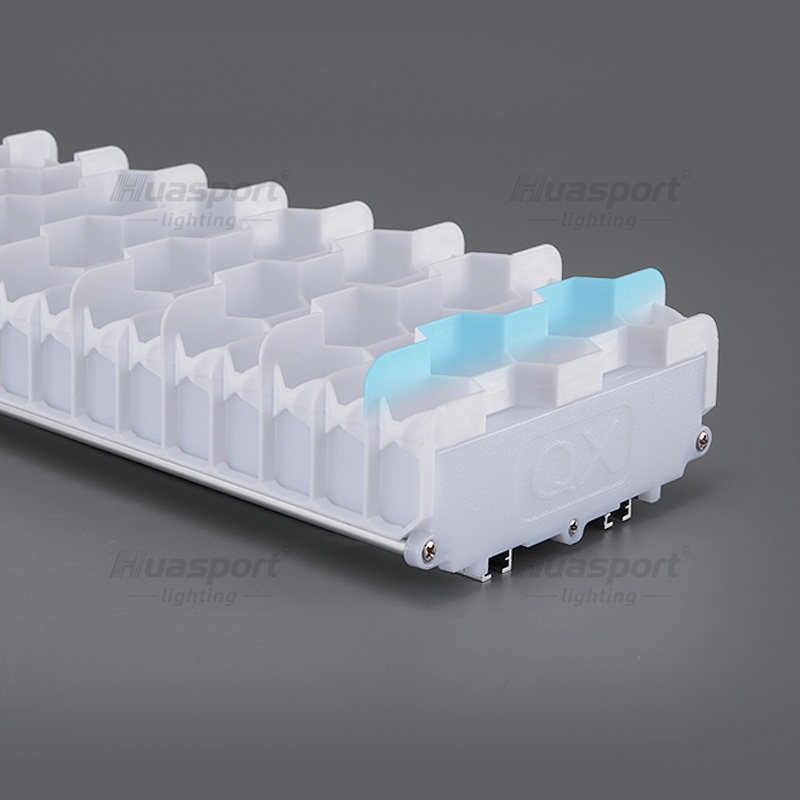

The S70 and S90 look similar from a distance, but the S90 body is wider, at 13 cm. That extra width gives room for the optical structure and the double-layer honeycomb anti-glare grille. The purpose is simple for a badminton hall: reduce exposed side light from player viewing angles while still sending usable light into the court.

Huasport does not describe this as a glare-free guarantee. That would be the wrong promise. Glare depends on mounting height, roof structure, wall color, fixture position, viewing angle and the player’s movement. A better promise is practical: the double-layer grille is designed to reduce side glare and improve visual comfort for badminton players who look upward often.

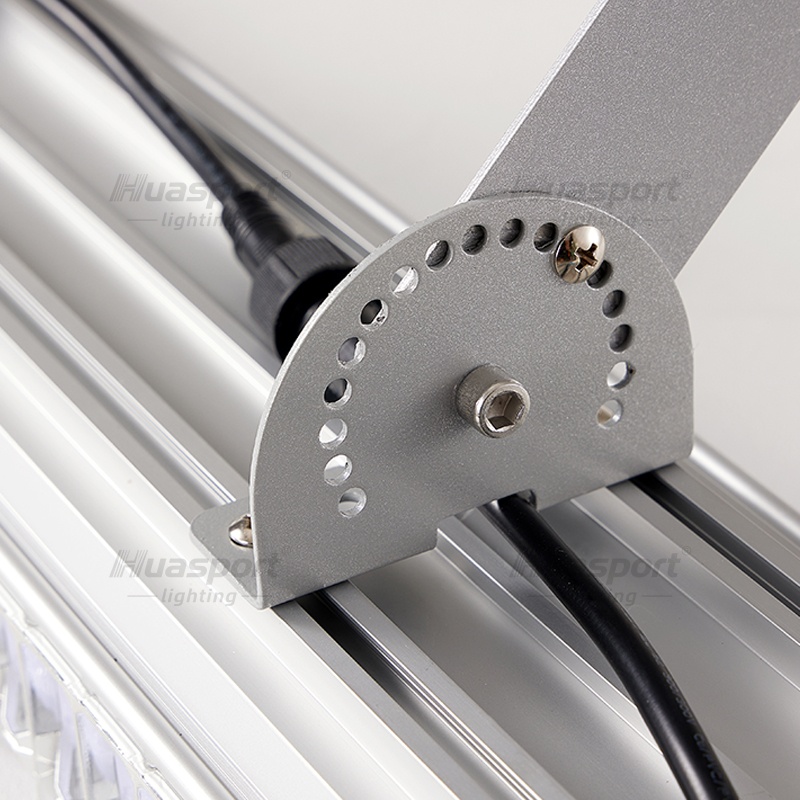

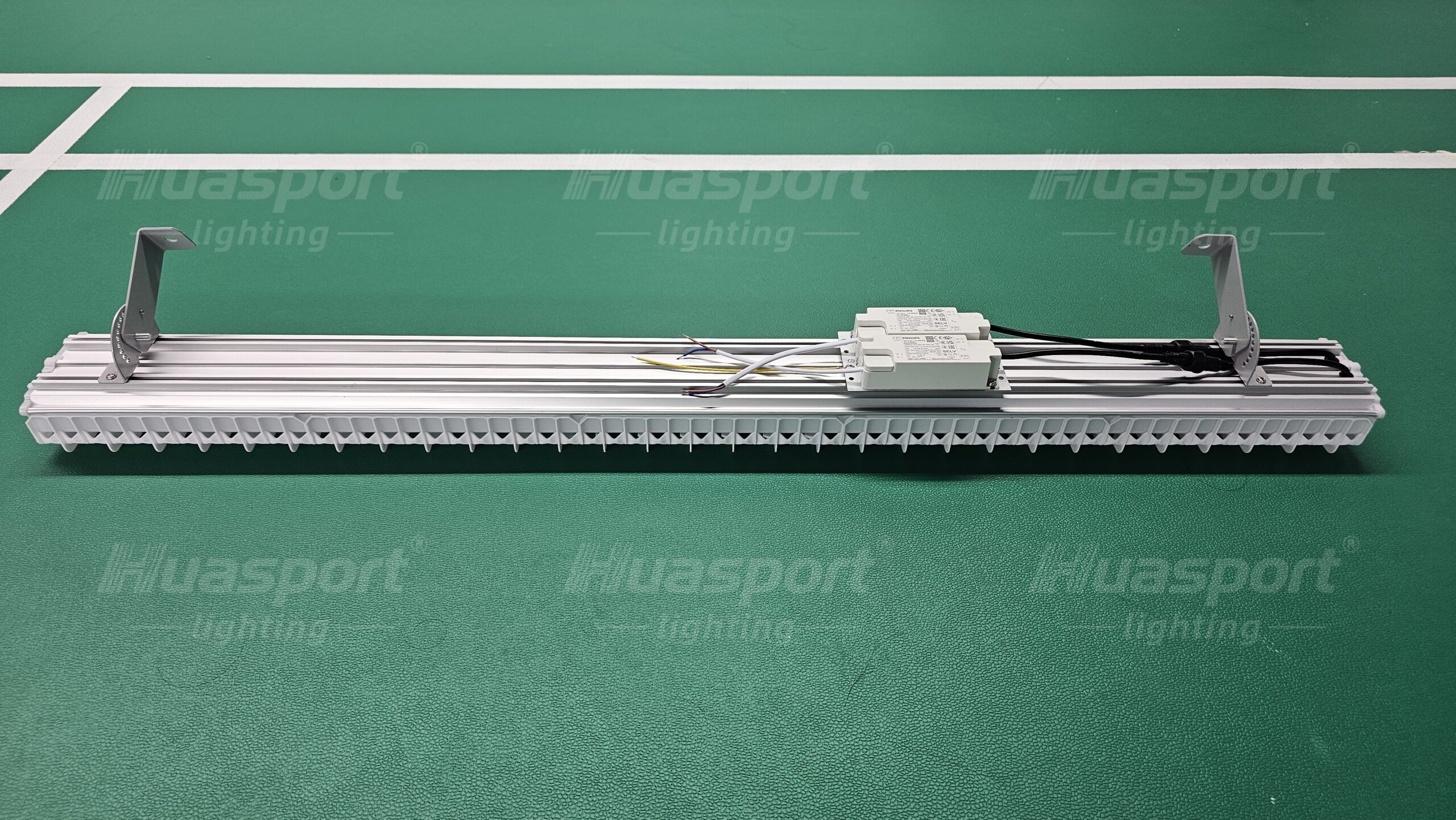

The back of the fixture also matters. Huasport uses a thickened aluminum profile instead of thin ironwork, because heat management affects the driver and LED life. The bracket is fixed to the aluminum profile, not to plastic, which gives the installer a stronger fixing base when setting the 30-degree inward tilt.

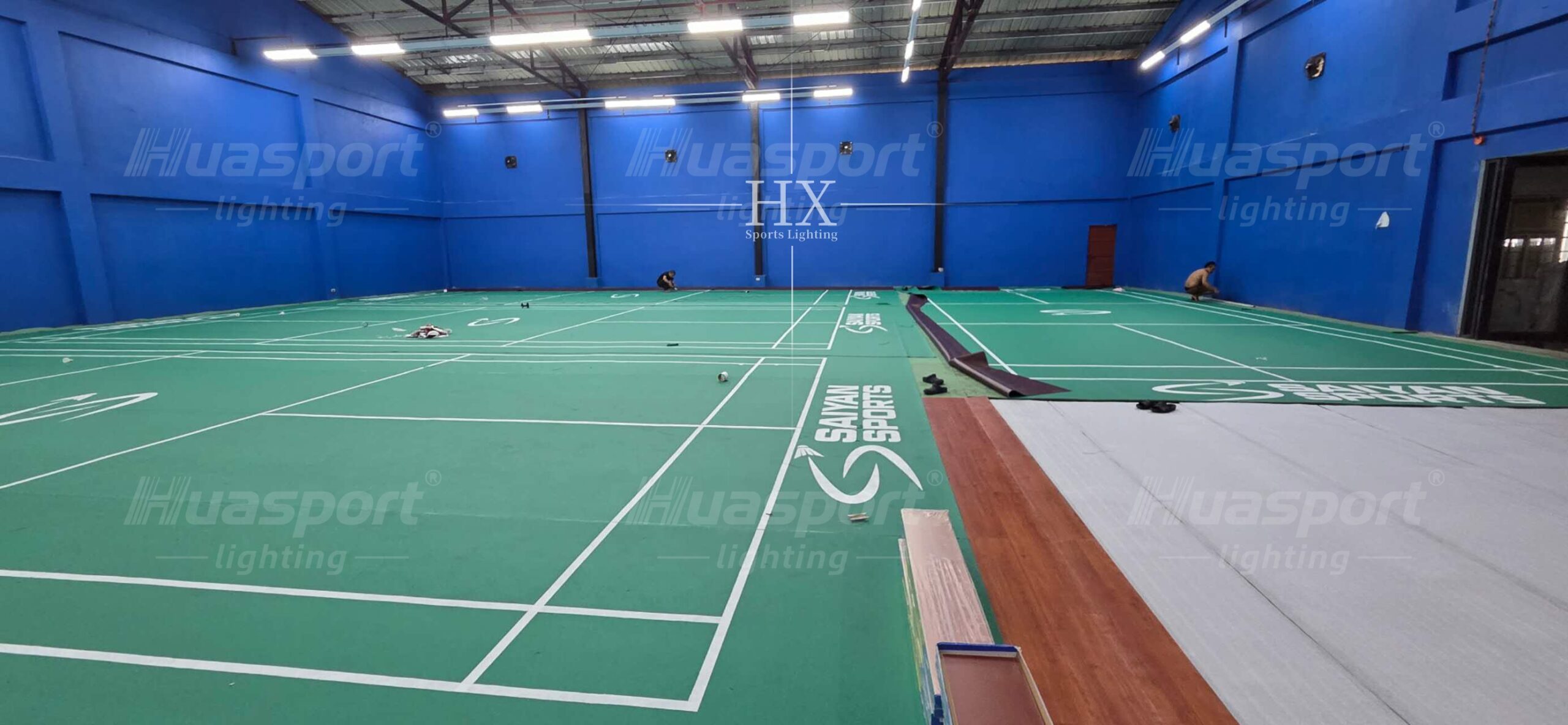

Why A Continuous Row Fits The 13.4 m Playing-Area Side

The `WM-S90-1160-DD-42W-108Z` planning option uses 12 fixtures on each side. Each fixture is 1.16 m long. When the 12 fixtures are connected as a continuous row, the row length is 13.92 m. That row length is matched against the 13.4 m main playing-area side length, so the lighting plan is easier to explain and easier to check.

This does not mean every hall can be quoted from one number. Roof beams, cable paths, ceiling height, wall color and court spacing still need to be reviewed. The value of the 13.92 m row is that it gives the buyer a clear starting point. Instead of guessing where the lights should stop, the installer can align the row to the active playing area and then confirm the real site details.

For halls that also include indoor pickleball or future multi-sport use, the same buyer logic applies. Start with the court type, then check the player view. Huasport keeps separate planning pages for badminton court lighting, pickleball court lighting and padel court lighting, because each sport has a different court shape and glare problem.

What The Philippines Photos Can And Cannot Prove

The Philippines case photos are useful because they show a real indoor badminton environment with blue walls, active play and visible long fixture rows. That helps the buyer understand the kind of hall where player-view glare matters.

The photos do not replace project records. They should not be treated as proof of the exact installed model, final illuminance or final acceptance result. For quotation, the buyer should still confirm court quantity, ceiling height, roof structure, row location, bracket angle, expected lux target and whether the hall needs training-level or competition-level planning.

This careful wording protects the buyer as much as the supplier. When the site record is clear, the layout can be checked against real mounting points. When the site record is incomplete, the quotation should stay as a planning option until the missing details are confirmed.

Quotation Checklist For A Philippines Badminton Hall

A practical quotation package for this S90 plan should include these items.

1. Court quantity and court-by-court layout.
2. Ceiling height and available hanging structure.
3. Confirmation that the selected option is `WM-S90-1160-DD-42W-108Z`.
4. Confirmation that each court uses 24 fixtures, with 12 fixtures per side.
5. Confirmation that the row is planned as a 13.92 m continuous side row.
6. Confirmation that the fixture angle is set around 30 degrees inward.
7. Review of back-line, side-line and waiting-zone glare from player height.
8. Target range of 300-400 lux+ for commercial training or recreational use.
9. Separate review toward 500 lux+ average if the hall needs competition use.

If the owner is comparing more than one sport, do not copy the same layout across every court type. Badminton and pickleball can share a similar long-bar side-row logic in many indoor halls. Padel is different because glass walls, fences and four-side fixture positions change the reflection problem. The safer route is to choose the sport first, then choose the layout.

Final Note For Hall Owners

The best time to solve glare is before the installer locks the rows in place. In a blue-wall Philippines training hall, that means checking more than brightness. Walk the court. Look up from the back line. Sit in the waiting zone. Compare one court with the next.

If the hall owner wants a clear starting point, the Huasport S90 `WM-S90-1160-DD-42W-108Z` 24-fixture layout gives the discussion a firm base. The final quote should still be built from the actual ceiling, court count and use level. That is how the lighting plan stays practical once the hall is full of players.
