Football field lightsBrunei Indoor Badminton Court Lighting: WM-S90 42W Rows for Multi-Court Player Comfort
In a multi-court badminton hall, a lighting complaint often starts with one small comment. Players do not walk to the front desk and ask about beam angle. They ask for the court that feels easier to play on. One court tracks the shuttle cleanly. Another feels bright but tiring. A third has a corner where the shuttle seems to disappear for a moment.
That is the problem this Brunei indoor badminton court lighting guide is built around. For a commercial badminton venue using the Huasport S90 1.16 m 42W fixture, model WM-S90-1160-DD-42W-108Z, one practical planning option uses 24 fixtures per court, 12 fixtures on each side, about 5 m mounting height, 30-degree inward aiming and a 13.92 m continuous row to cover the 13.4 m main playing-area side length. The target is 300-400 lux+ for commercial training and recreational play, with 500 lux+ reviewed when competition use is required.
WM-S90-1160-DD-42W-108Z Layout for Brunei Indoor Badminton Courts
The S90 42W plan is a side-row lighting layout. It does not put the visual weight of the lighting directly over the center of play. The fixtures work from both sides, tilted inward, so the player receives useful court light without staring into a raw LED surface during overhead shots.
| Planning item | Huasport reference data |
|---|---|
| Fixture model | WM-S90-1160-DD-42W-108Z |
| Fixture family | S90 1.16 m anti-glare long-bar light |
| Width reference | S90 is 13 cm; S70 is 11 cm |
| Power | 42W |
| Fixture count | 24 fixtures per badminton court |
| Side layout | 12 fixtures on each side |
| Mounting height | About 5 m |
| Aiming angle | 30-degree inward tilt |
| Row length | 12 x 1.16 m = 13.92 m continuous row |
| Court coverage reference | 13.92 m row covers the 13.4 m main playing-area side length |
| Illuminance target | 300-400 lux+ for commercial training or recreation |
For the main court solution page, see the Huasport Badminton Court Lighting guide.
Why Brunei Multi-Court Halls Need Consistent Player Comfort

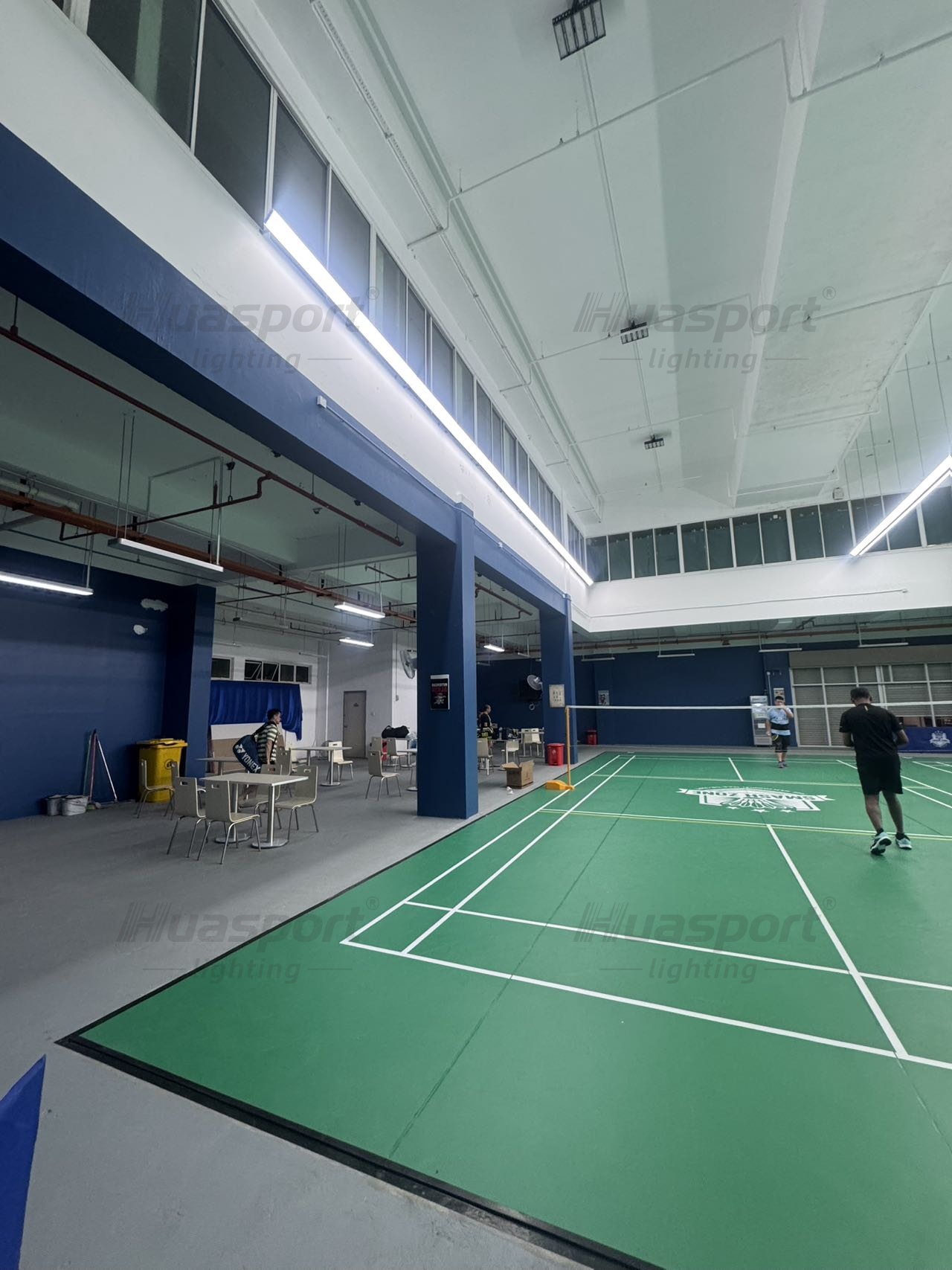

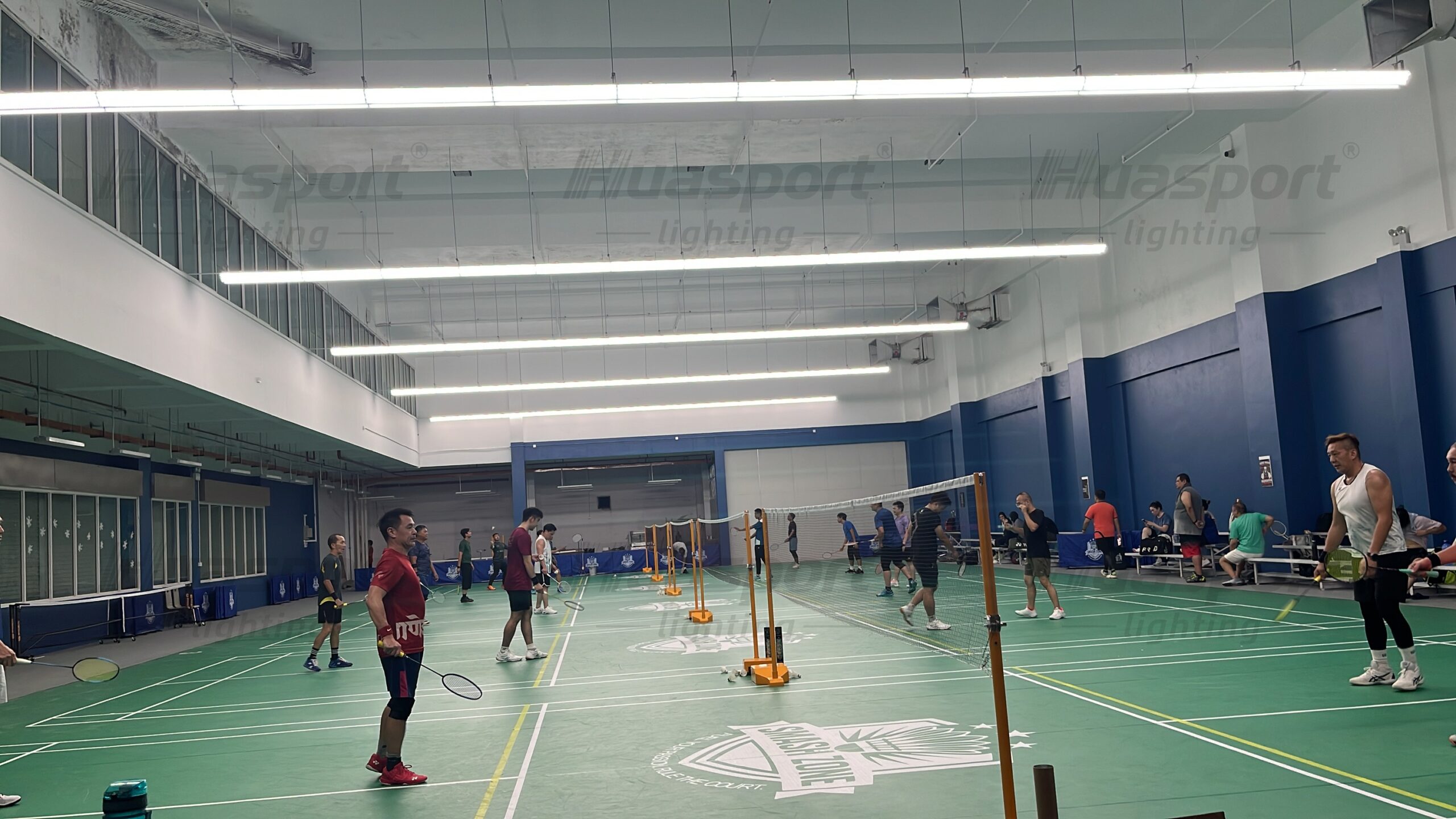

The Brunei case photos show a real indoor badminton environment with multiple courts, visible player movement and long-bar lights above the playing area. That kind of hall has one special pressure point: every court has to feel close enough to the next one.
If the first court feels comfortable and the next court feels sharper on the eyes, players notice. They may not name the grille design or the aiming angle, but they know which court they prefer. For the owner, that can turn into uneven bookings, more complaints and a harder time presenting the venue as professional.
The S90 42W layout answers this with repeatable rows. Each court follows the same count, the same side position and the same inward tilt. That gives the lighting contractor a clearer installation target and gives the venue owner a simpler acceptance checklist after installation.
What the Brunei Photos Can Confirm Before Quotation

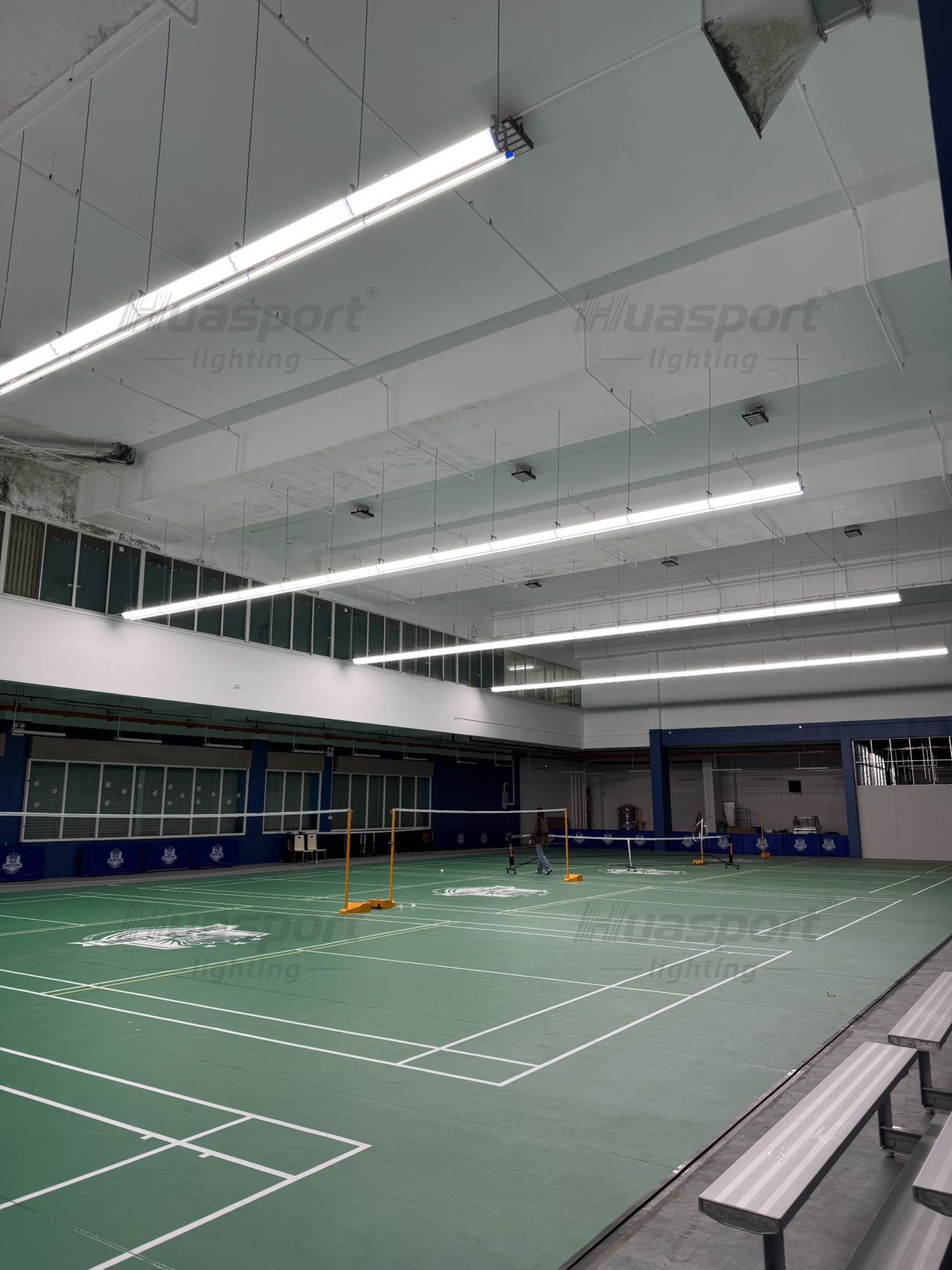

The Brunei images can help a buyer confirm the real site context before choosing the final fixture list. They show an indoor badminton hall, court rows, player viewing direction, roof structure and the relationship between fixture placement and the court surface.
They do not confirm the exact installed model by themselves. For a quotation, the project record should confirm the selected model. The planning reference in this article is the Huasport WM-S90-1160-DD-42W-108Z option for Southeast Asia indoor badminton or pickleball venues.
Why the S90 13 cm Body Helps When Glare Control Matters

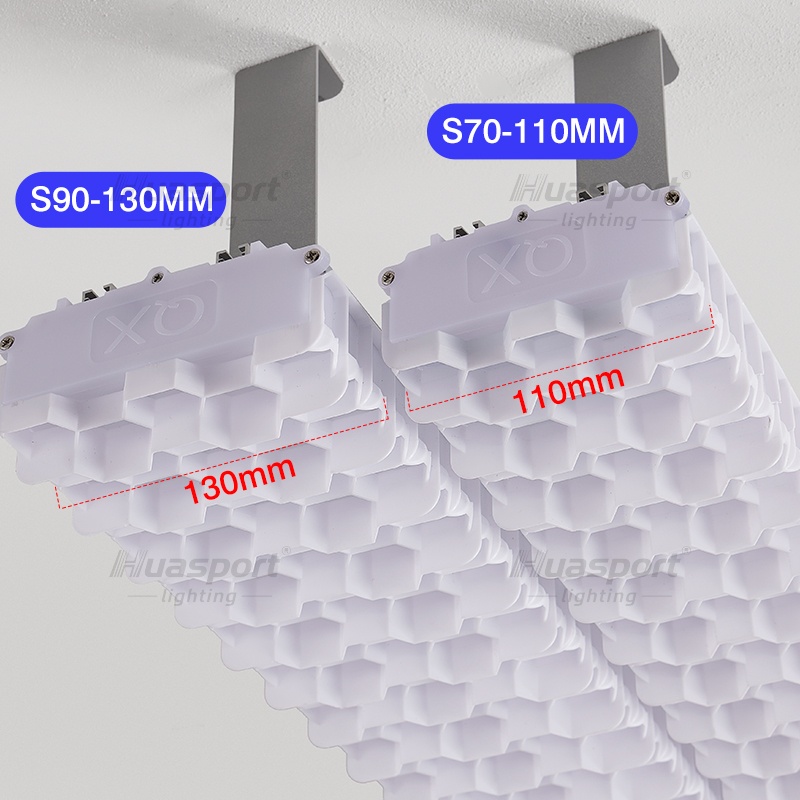

S70 and S90 look similar at first glance because both use Huasport’s double-layer honeycomb anti-glare design. The main difference is width: S70 is 11 cm and S90 is 13 cm.
The extra width of the S90 family gives the fixture a broader body while keeping the same anti-glare lighting idea. The double-layer honeycomb grille adds depth in front of the LEDs, which helps shield the light source from side viewing angles. In badminton, that matters because the shuttle spends so much time above the player’s eye line.
A lux number can tell you whether the court is bright enough. It cannot fully tell you whether a player feels comfortable under the light. That is why the product confirmation should include clear photos of the grille, the aluminum profile and the bracket structure, not only a wattage label.
13.92 m Rows for a 13.4 m Playing-Area Side Length
In this S90 plan, each fixture is 1.16 m long. Twelve fixtures on one side form a 13.92 m continuous row. That row length is designed to cover the 13.4 m main playing-area side length of a badminton court.
The continuous-row idea is especially useful for halls that want fewer dark breaks along the court edge. It gives the rear court and upper hitting zone a more dependable lighting reference than a layout with random gaps.
Indoor pickleball venues can use a similar side-row thinking, though the final court drawing should still be checked. For that application, use the Huasport Pickleball Court Lighting guide as the starting point.
Bracket Check: 6th Hole and 30-Degree Inward Aiming

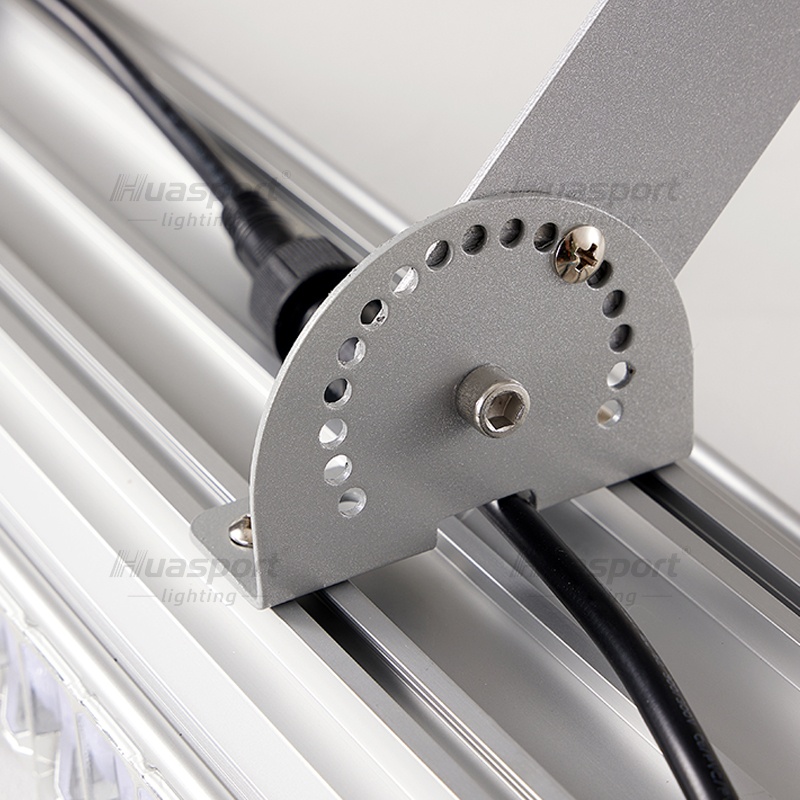

The adjustable bracket is a small part, but it decides whether the planned angle becomes the real angle on site. For badminton and pickleball applications, the common reference is the 6th hole for about 30-degree inward aiming.
The bracket is fixed to the aluminum profile instead of plastic. That makes the aiming structure easier to trust over long operating hours. It also gives the installer a repeatable physical reference when several courts need the same aiming angle.
Padel is different. A padel court has glass walls, enclosure reflections and a four-side fixture relationship. If the project is a padel venue, use the separate Huasport Padel Court Lighting layout rather than copying this badminton side-row plan.
Brunei Buyer Checklist for a WM-S90 42W Badminton Lighting Plan
Before a Brunei venue owner confirms the quotation, the buyer should check:
- Final court quantity and court direction.
- Whether the selected planning model is WM-S90-1160-DD-42W-108Z.
- Whether each court can use 24 fixtures, with 12 fixtures on each side.
- Whether the mounting height is close to the 5 m reference.
- Whether 12 fixtures can form a 13.92 m continuous row on each side.
- Whether the row covers the 13.4 m main playing-area side length.
- Whether the bracket can be locked around the 6th hole for about 30-degree inward aiming.
- Whether the owner needs 300-400 lux+ for commercial play or a 500 lux+ review for competition use.
- Whether product photos show the double-layer honeycomb grille, aluminum profile and adjustable bracket clearly.
For a project quotation, send the court quantity, ceiling height, roof structure photos and lighting target through the Huasport Contact Us page.
FAQ: Brunei Indoor Badminton Court Lighting With WM-S90 42W
How many fixtures are used per badminton court in this S90 42W plan?
The plan uses 24 fixtures per badminton court, with 12 fixtures on each side.
What is the full model code?
The full model code is WM-S90-1160-DD-42W-108Z.
What mounting height is used for this Brunei planning reference?
The planning reference uses about 5 m mounting height.
What aiming angle is used?
The fixtures are aimed about 30 degrees inward toward the court. For badminton and pickleball, the 6th bracket hole is the common reference for this angle.
What row length does the 24-fixture layout create?
Twelve 1.16 m fixtures on one side create a 13.92 m continuous row, covering the 13.4 m main playing-area side length.
Is this the same as the Huasport padel lighting layout?
No. Padel uses a different layout because the court has glass walls and a four-side lighting relationship.
