Vietnam Indoor Badminton Court Lighting: WM-S70 42W 24-Fixture Row Before Court Finishing

When a Vietnam indoor badminton hall is still in the ceiling and floor-prep stage, the easiest lighting mistake to fix is also the one many owners notice too late: the row position. After court mats, wall finishes and daily bookings are in place, moving long-bar fixtures means labor, downtime and visible patching above the court.

This Vietnam installation-stage reference is useful because the roof, wall height and long-bar fixture rows are still readable before the final court surface is finished. For a badminton-first venue that wants a practical commercial training level, Huasport can plan one clear option around the S70 1.16 m 42W fixture, model WM-S70-1160-DD-42W-108Z: 24 fixtures per court, 12 fixtures on each side, about 5 m mounting height, 30-degree inward aiming and a 13.92 m continuous row to cover the 13.4 m main playing-area side length.

WM-S70-1160-DD-42W-108Z Layout: 24 Fixtures, 5 m Height and 30-Degree Tilt

For this Vietnam indoor badminton court lighting plan, the main idea is not to chase one bright point in the middle of the hall. The aim is to build two controlled rows along the court so players can track the shuttle without looking into harsh direct light.

Planning item	Huasport reference data
Fixture model	WM-S70-1160-DD-42W-108Z
Fixture family	S70 1.16 m anti-glare long-bar light
Power	42W
Fixture count	24 fixtures per badminton court
Side layout	12 fixtures on each side
Mounting height	About 5 m
Aiming angle	30-degree inward tilt
Row length	12 x 1.16 m = 13.92 m continuous row
Court coverage reference	13.92 m row covers the 13.4 m main playing-area side length
Illuminance target	300-400 lux+ for commercial training or recreation
Competition reference	Review the layout toward 500 lux+ when competition use is required

This guide belongs to the Huasport technical article library. For the main badminton solution page, see the Huasport Badminton Court Lighting guide.

Why Vietnam Hall Owners Need to Decide the Light Rows Before Flooring

At the shell and installation stage, the building still gives the owner choices. The installer can check whether the suspension points match the court direction, whether the light rows leave enough clearance for play, and whether the fixture angle can be corrected before the final surface hides the reference lines.

Once the floor is finished, lighting mistakes become more expensive. A row that sits too close to the center can feel bright but uncomfortable. A row that sits too far out may leave the opposite rear court weak. A fixture angle that is not locked consistently can make one court feel different from the next.

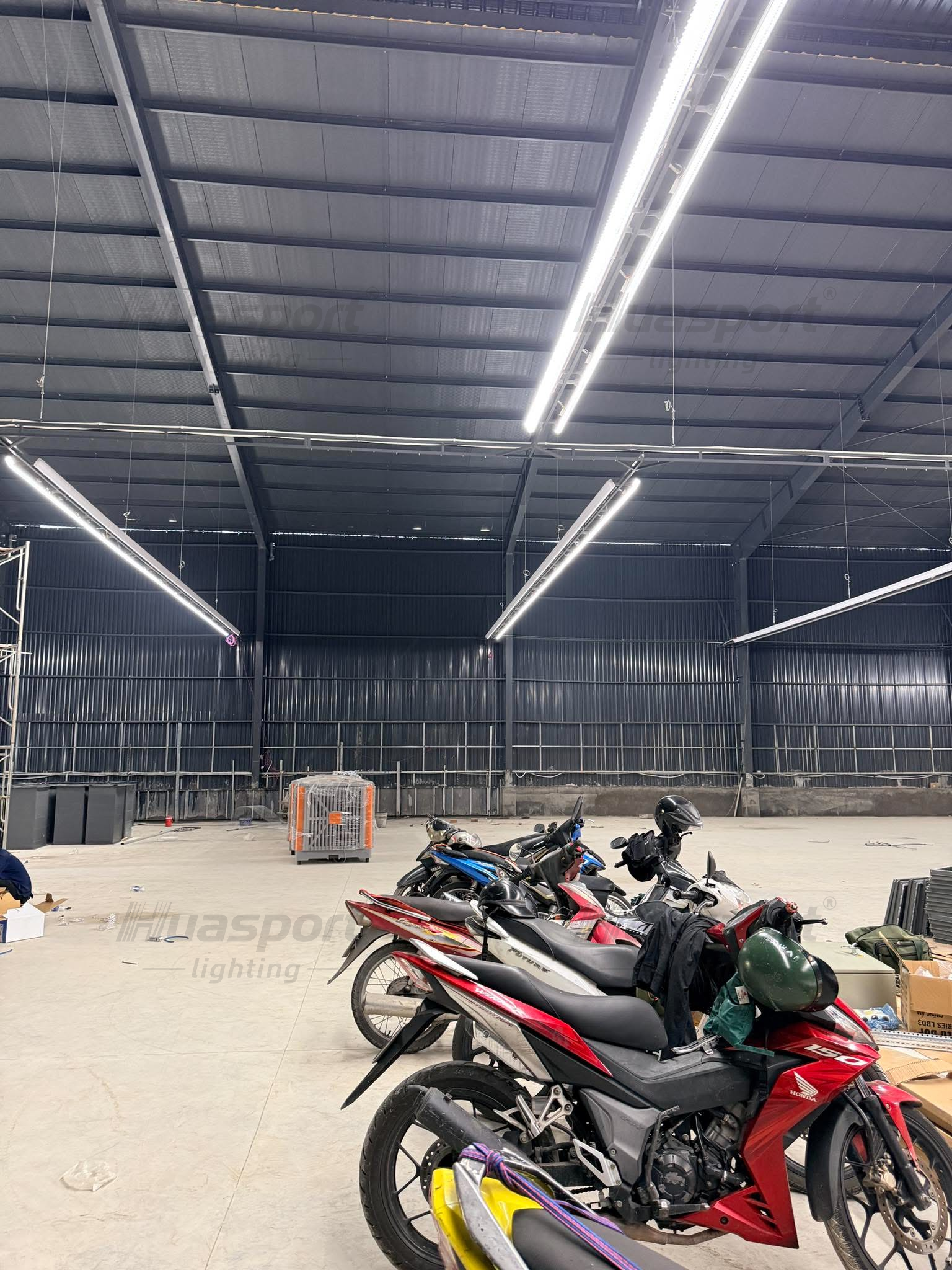

That is why the Vietnam photo set is better used as a planning checkpoint than as decoration. It shows the stage where the owner can still verify mounting height, row direction and maintenance access before the venue opens.

What the Vietnam Case Photos Can Confirm Before the Quote

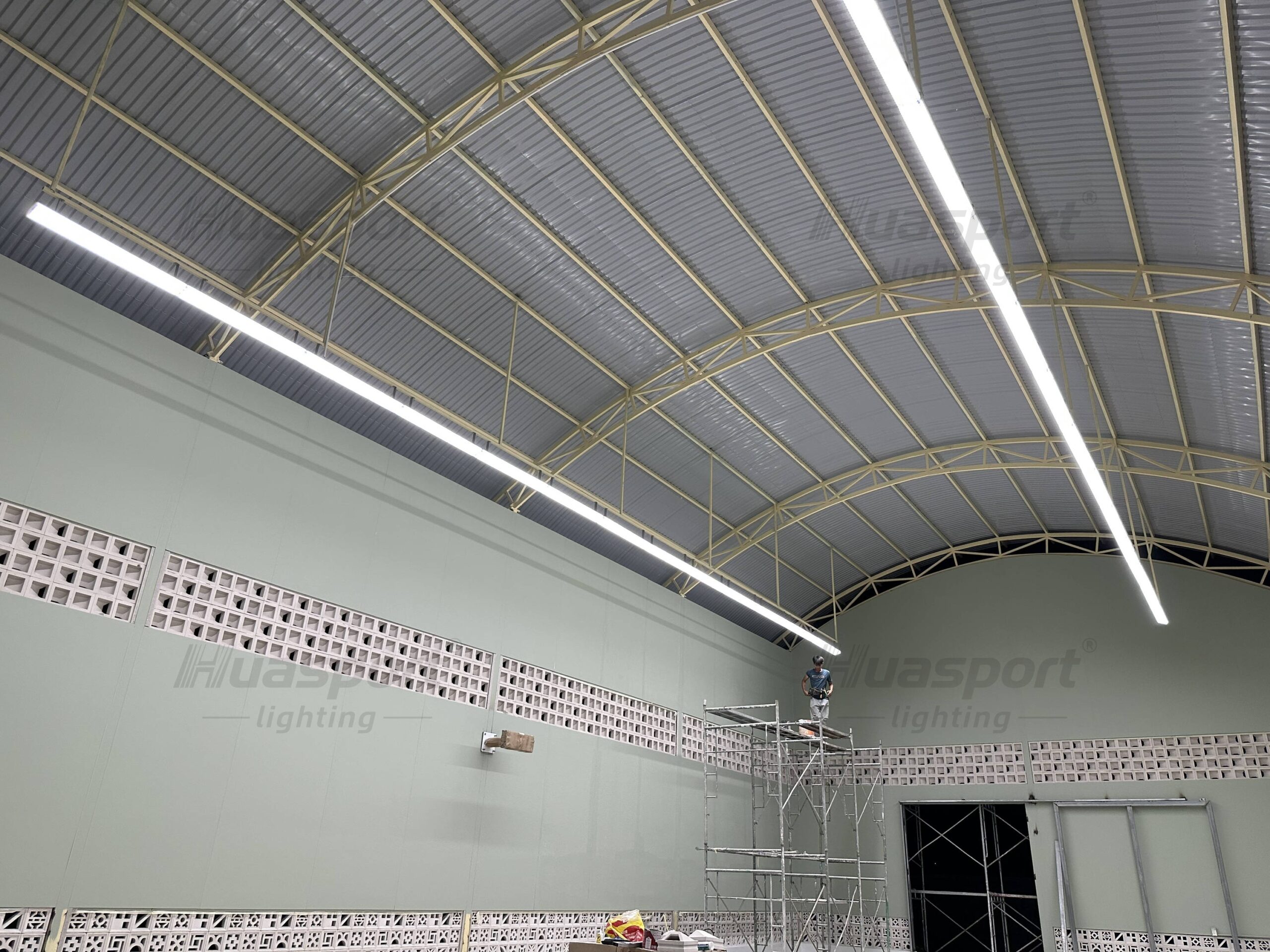

The Vietnam images show an indoor hall under construction, visible roof framing, wall height, working access and long-bar lighting rows. Those details help a buyer ask the right questions before requesting a final quotation.

They do not by themselves confirm the exact installed model in the project. For a quotation, the model should be confirmed from the project record. The safe planning reference here is the Huasport WM-S70-1160-DD-42W-108Z option for Southeast Asia indoor badminton or pickleball halls.

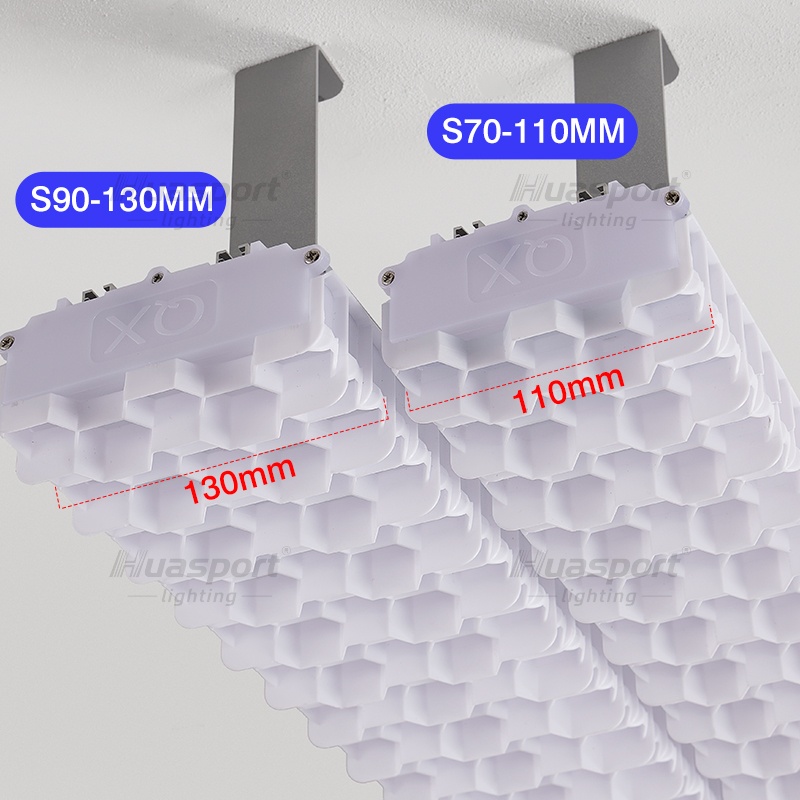

Why the S70 42W Fixture Works for a Commercial Training Hall

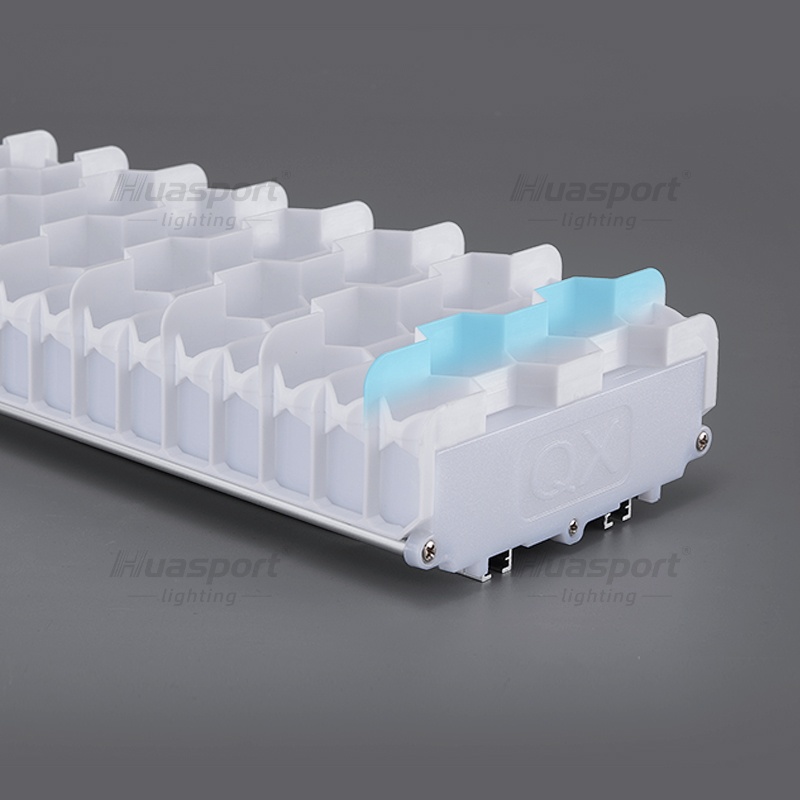

The S70 fixture is not only a slim long bar. Its important detail is the double-layer honeycomb anti-glare grille. Compared with common single-layer grille designs, Huasport’s patent-protected double-layer design gives the light a deeper shielding structure, so side glare is easier to control from the player’s viewing angle.

For badminton, this matters because the shuttle spends much of the rally above eye level. A hall can be bright on a lux meter but still tiring if the light source is exposed. A controlled long-bar row helps the player see the shuttle path without constantly meeting the LED surface directly.

The back of the fixture uses a thickened aluminum profile rather than a low-cost iron back. Aluminum helps heat move away from the driver and LED chips, which supports longer service life in a venue that may run lights for many hours every day.

13.92 m Continuous Rows for the 13.4 m Main Playing Area

Each fixture in this S70 plan is 1.16 m long. When 12 fixtures are arranged on one side without visible spacing, the row length becomes 13.92 m. That length is designed to cover the 13.4 m main playing-area side length of a badminton court.

The continuous-row approach is especially useful in venues where customers book court time by the hour. Players may not describe the technical reason, but they notice when the rear court feels weak, when the middle feels over-bright, or when every court has a different visual comfort level.

For owners comparing a mixed-use venue, the same planning logic also connects with the Huasport Pickleball Court Lighting guide, because indoor pickleball courts also benefit from controlled side-row lighting and predictable glare management.

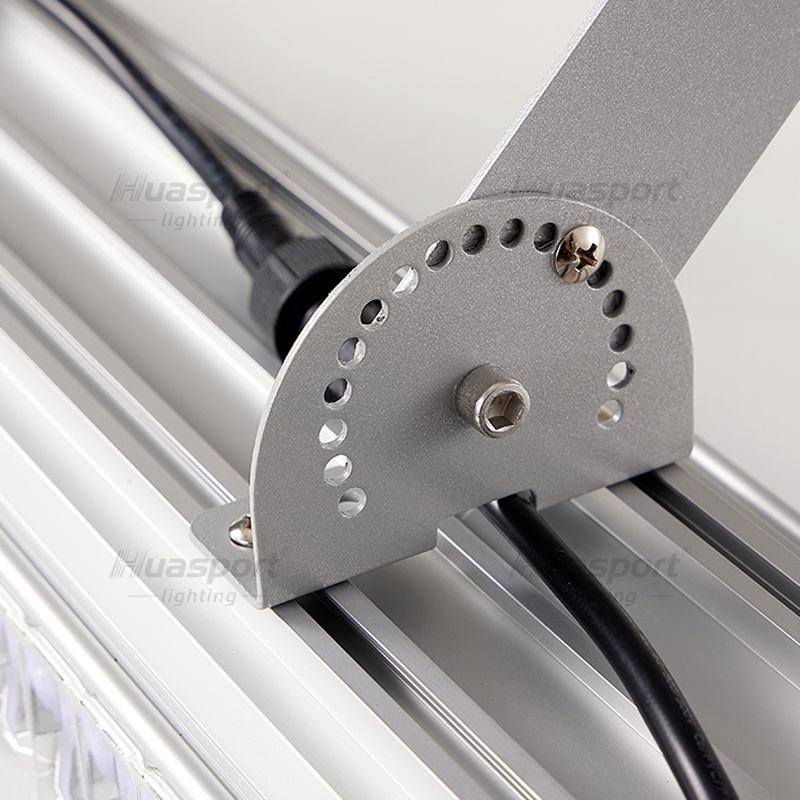

Bracket Detail: 6th Hole for About 30-Degree Badminton Aiming

The S70 bracket is fixed to the aluminum profile, not to plastic. That detail matters because the bracket is the part that holds the aiming angle over time. In a normal badminton or pickleball installation, locking the adjustable bracket around the 6th hole keeps the fixture at about a 30-degree inward tilt toward the court.

A consistent angle on both sides of the court helps the two rows work together. If one side is aimed flatter and the other side is aimed inward, players can feel the difference even when the fixture count is correct.

Padel court planning is different because the court has glass walls and a four-side lighting relationship. If you are comparing that type of venue, use the separate Huasport Padel Court Lighting layout rather than copying the badminton row plan directly.

Buyer Checklist for a Vietnam WM-S70 42W Badminton Court Plan

Before ordering fixtures for a Vietnam indoor badminton hall, confirm these points with the site drawing or on-site photos:

1. Court quantity and final court direction.
2. Mounting height close to the 5 m reference.
3. Whether the venue will use the WM-S70-1160-DD-42W-108Z 24-fixture plan.
4. Whether each court can fit 12 fixtures on each side.
5. Whether 12 fixtures can form a 13.92 m continuous row along the 13.4 m main playing-area side length.
6. Whether the bracket can be locked at about a 30-degree inward tilt.
7. Whether the owner needs 300-400 lux+ for training/recreation or a 500 lux+ review for competition use.
8. Whether the double-layer honeycomb grille and aluminum-profile body are visible in the product confirmation photos.

For project discussion, send the court quantity, ceiling height, roof structure and installation-stage photos through the Huasport Contact Us page.

FAQ: Vietnam Indoor Badminton Court Lighting With WM-S70 42W

How many Huasport fixtures are used per court in this Vietnam S70 42W plan?

This plan uses 24 fixtures per badminton court, with 12 fixtures installed on each side.

What is the full model code for the S70 42W layout?

The model code is WM-S70-1160-DD-42W-108Z.

What mounting height and aiming angle are used?

The planning reference uses about 5 m mounting height and a 30-degree inward tilt toward the court.

Why is the 13.92 m row length important?

Twelve 1.16 m fixtures form a 13.92 m continuous row, which covers the 13.4 m main playing-area side length.

Can this Vietnam badminton layout also guide pickleball lighting?

Yes, it can be used as a Southeast Asia planning reference for indoor pickleball courts, but court dimensions and final use should be checked before quotation.

Can the same layout be copied to padel courts?

No. Padel courts need a separate four-side layout because of glass walls, court enclosure and player viewing angles. Use the dedicated Huasport padel layout for that application.
