Philippines Indoor Padel Court Lighting: S70 50-Fixture Layout at 6 m

Padel lighting is easy to underestimate. A court can look bright in a phone photo and still feel uncomfortable when the ball comes off the glass, crosses a fence line, or rises into the player’s upper view.

For a Philippines indoor padel court, the question is not only "how bright is it?" The better question is whether the lighting layout keeps the ball visible while controlling glare from glass walls, side fences and overhead long-bar fixtures.

Practical Answer for Venue Owners

One practical Huasport planning option for a Philippines indoor padel court uses the S70 1.16 m fixture, model WM-S70-1160-DD-42W-108Z. The layout uses 50 fixtures per court: 17 fixtures on each long side and 8 fixtures on each short side. Fixtures are mounted at about 6 m, aimed 30 degrees inward, and the adjustable bracket is normally locked around the 7th hole position for this angle.

This is a four-side layout because padel is not the same as a two-side badminton or pickleball installation. Glass walls, fence lines and corner play all make the viewing angle more complicated.

Why Padel Lighting Fails Differently From Badminton Lighting

Badminton and pickleball players mainly read the ball or shuttle inside an open rectangular playing area. Padel players also read rebounds from glass, fast corner movement and balls that pass close to fencing. A bright light placed in the wrong viewing zone can make the court feel sharp even when a meter shows enough lux.

That is why a padel court lighting plan should start with player sightlines. The layout needs to help a player look through glass, track the ball near the fence, and move from baseline to net without meeting a harsh light source at eye level.

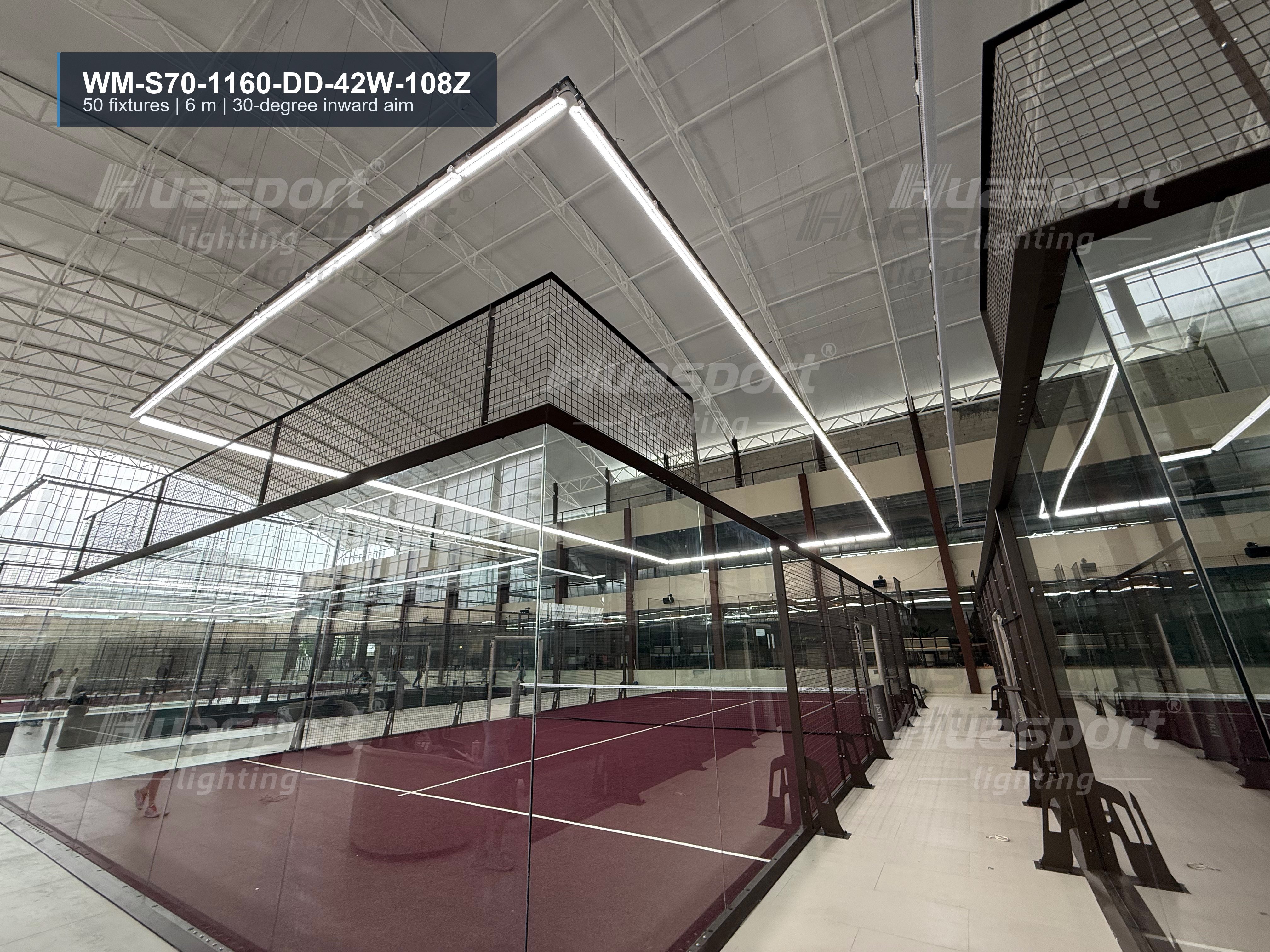

S70 Layout Used Here: 50 Fixtures Around Four Sides

For this article, only one layout is used:

• Model: WM-S70-1160-DD-42W-108Z.
• Fixture family: Huasport S70 1.16 m anti-glare long-bar fixture.
• Court type: indoor padel court.
• Total quantity: 50 fixtures per court.
• Long sides: 17 fixtures + 17 fixtures.
• Short sides: 8 fixtures + 8 fixtures.
• Mounting height: about 6 m.
• Aiming: 30-degree inward direction.
• Bracket setting: around the 7th hole position.

The goal is not to flood the court from one direction. The goal is to surround the playing area with a controlled four-side lighting structure so the ball remains readable through the glass-wall environment.

What the 6 m Height and 30-Degree Aim Solve

At about 6 m mounting height, the long-bar fixtures can sit above the main player sightline while still directing useful light into the playing area. The 30-degree inward aim helps send light toward the court instead of wasting it outward into the ceiling, walls or viewing area.

The angle also matters during quotation. If the bracket angle is not confirmed before installation, one court may look comfortable while another feels harsher. A repeatable bracket setting helps installers copy the same aiming logic from court to court.

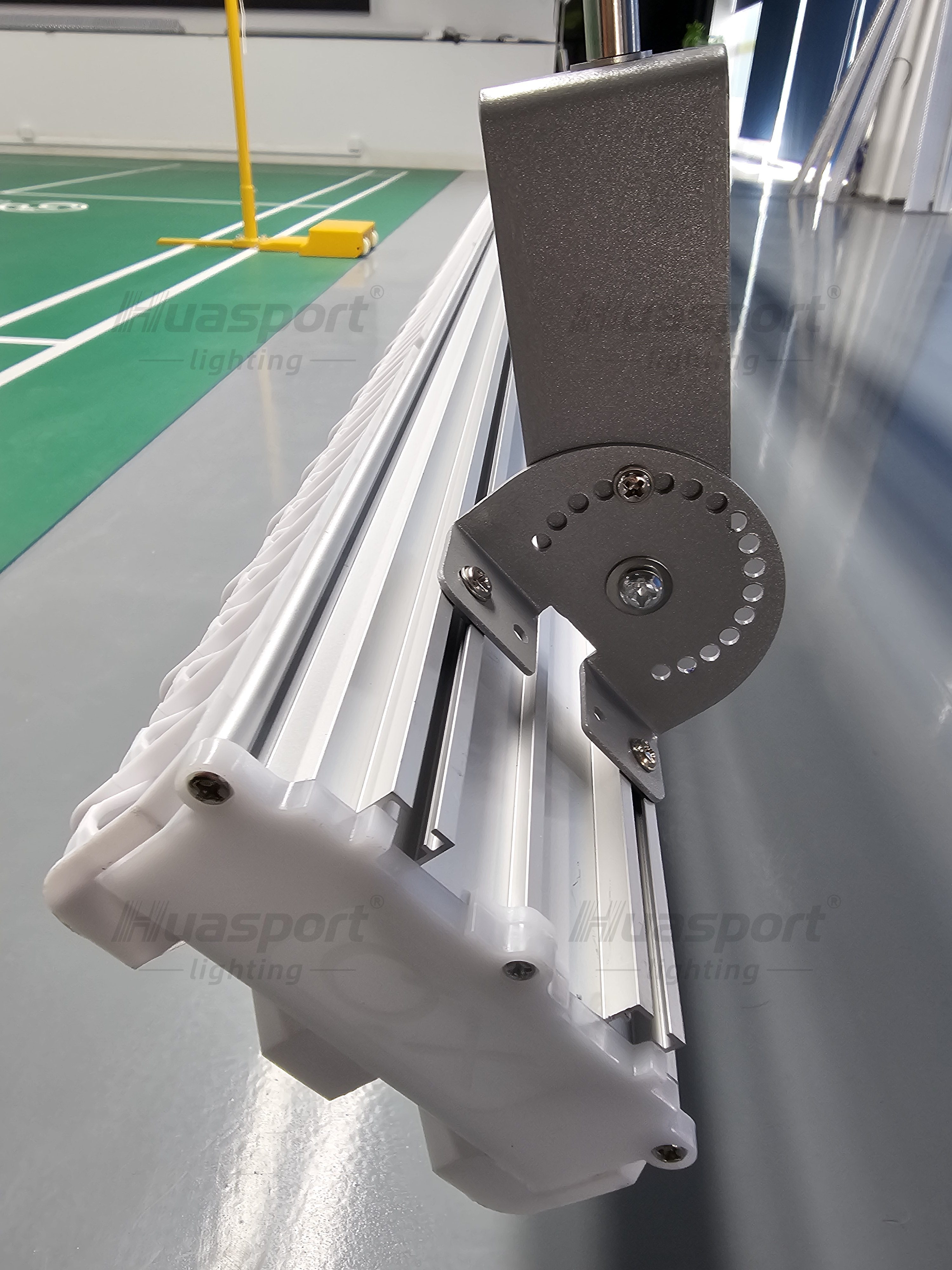

Why the 7th Bracket Hole Matters

Small installation details can decide whether a layout is repeatable. For this padel planning option, the 7th bracket hole is used as a practical reference for the 30-degree inward aiming position.

That gives the contractor something physical to check on site. Instead of saying "tilt the lights inward" in a vague way, the project can verify the bracket hole, mounting height, court side and final aiming direction before handover.

What Buyers Should Check Before Quotation

Before asking for a final quote on indoor padel court lighting, a venue owner or contractor should confirm:

1. The number of padel courts and whether each court uses the same ceiling height.
2. Whether the court is surrounded by glass, fence panels or both.
3. Whether the selected layout is the S70 50-fixture four-side plan.
4. Whether each court uses 17 fixtures on each long side and 8 fixtures on each short side.
5. Whether the mounting height is about 6 m.
6. Whether the bracket can be set to the 7th hole for a 30-degree inward aim.

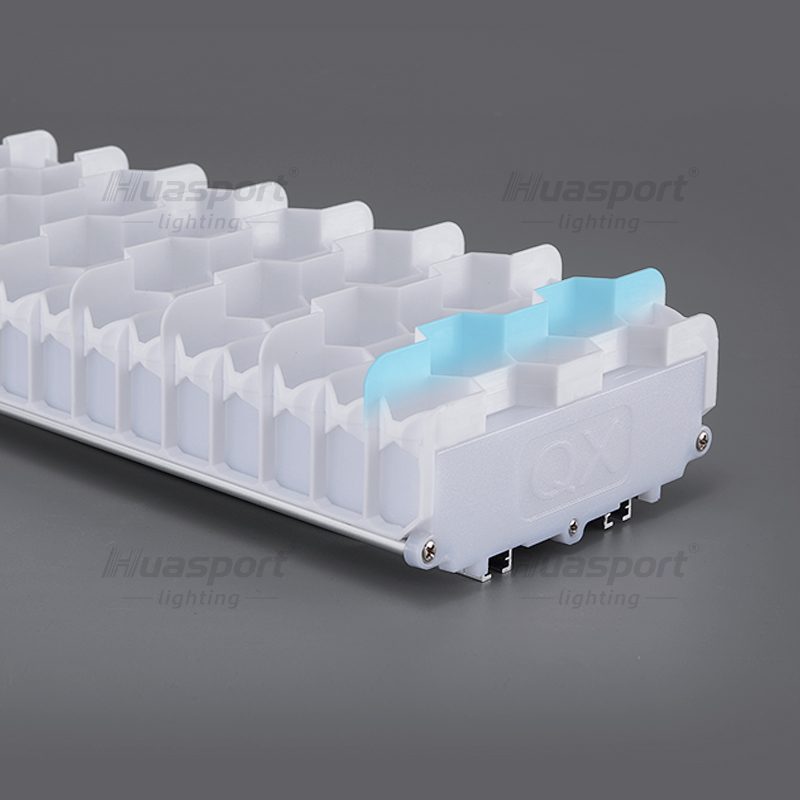

7. Whether the double-layer honeycomb anti-glare grille is visible in the selected fixture.

These checks make the quote easier to compare because the buyer is no longer comparing only unit price. They are comparing a complete court layout.

Related Huasport Court Lighting Guides

For shuttle-based venues, the Huasport badminton court lighting guide explains how side-row long-bar fixtures support fast overhead tracking.

For low-net multi-court projects, the Huasport pickleball court lighting guide shows how court rows, viewing height and player comfort should be planned before quotation.

For glass-wall venues, the Huasport padel court lighting layout is the core page for checking the 50-fixture S70 plan, four-side placement, 6 m mounting height and 30-degree inward aiming.

Final Takeaway

Good padel lighting is not only a brightness decision. A Philippines indoor padel court needs a layout that respects glass, fence lines, corner movement and repeatable installation details. The Huasport S70 50-fixture plan gives buyers a clear set of numbers to verify before quotation and a cleaner structure for player comfort after installation.

FAQ

What model is used in this Philippines indoor padel court lighting layout?

The model used in this planning option is WM-S70-1160-DD-42W-108Z, the Huasport S70 1.16 m anti-glare long-bar fixture.

How many fixtures are used for one indoor padel court?

This layout uses 50 fixtures per indoor padel court: 17 on each long side and 8 on each short side.

What mounting height and aiming angle are used?

The planning height is about 6 m, with the fixtures aimed 30 degrees inward toward the playing area.

Why is the bracket hole mentioned?

The 7th bracket hole gives installers a physical reference for the 30-degree inward aiming position, making the layout easier to repeat across multiple courts.
