S90 Badminton Court Lighting: Save Power Without Glare Using a 130 mm Dual-Honeycomb Fixture

A lower electricity bill is not a win if players leave the court with tired eyes. In an indoor badminton hall, real energy saving starts with glare control, then light efficiency, and only after that lower power use.

The video below shows the exact idea behind the Huasport S90 long-bar fixture: control side glare first, keep the player view comfortable, and use the 130 mm body width to support a stronger anti-glare structure instead of judging the light by wattage alone.

Quick Answer

For an indoor badminton or pickleball venue, the practical Huasport option in this video is the S90 1.16 m 42W fixture, model WM-S90-1160-DD-42W-108Z. A standard planning layout uses 24 fixtures per court, with 12 fixtures installed on each side at about 5 m mounting height and tilted 30 degrees inward. The 12 connected fixtures form a 13.92 m continuous row, covering the 13.4 m main playing-area side length and targeting 300-400 lux+ average illuminance for commercial training or recreation.

Watch the S90 Energy-Saving Anti-Glare Video

Huasport S90 badminton court lighting video explaining glare control before lower power selection.

The message in the video is simple: do not start by asking only how many watts the light uses. Start by asking whether the light can reduce glare from the player angle, because a court that looks bright from the floor can still feel harsh during fast rallies.

Why Power Rating Alone Can Mislead Court Owners

Many buyers compare badminton court lights by wattage first. That feels logical, because electricity cost is easy to calculate. But for sports lighting, the cheaper fixture on paper can become the expensive choice if players complain about eye fatigue, avoid peak-hour play, or feel the shuttle is harder to track.

A better question is: can the fixture reduce visible side glare while still delivering enough useful light onto the playing area? When glare is controlled, the venue can choose power more intelligently instead of compensating for visual discomfort with higher brightness.

What the 130 mm S90 Body Changes

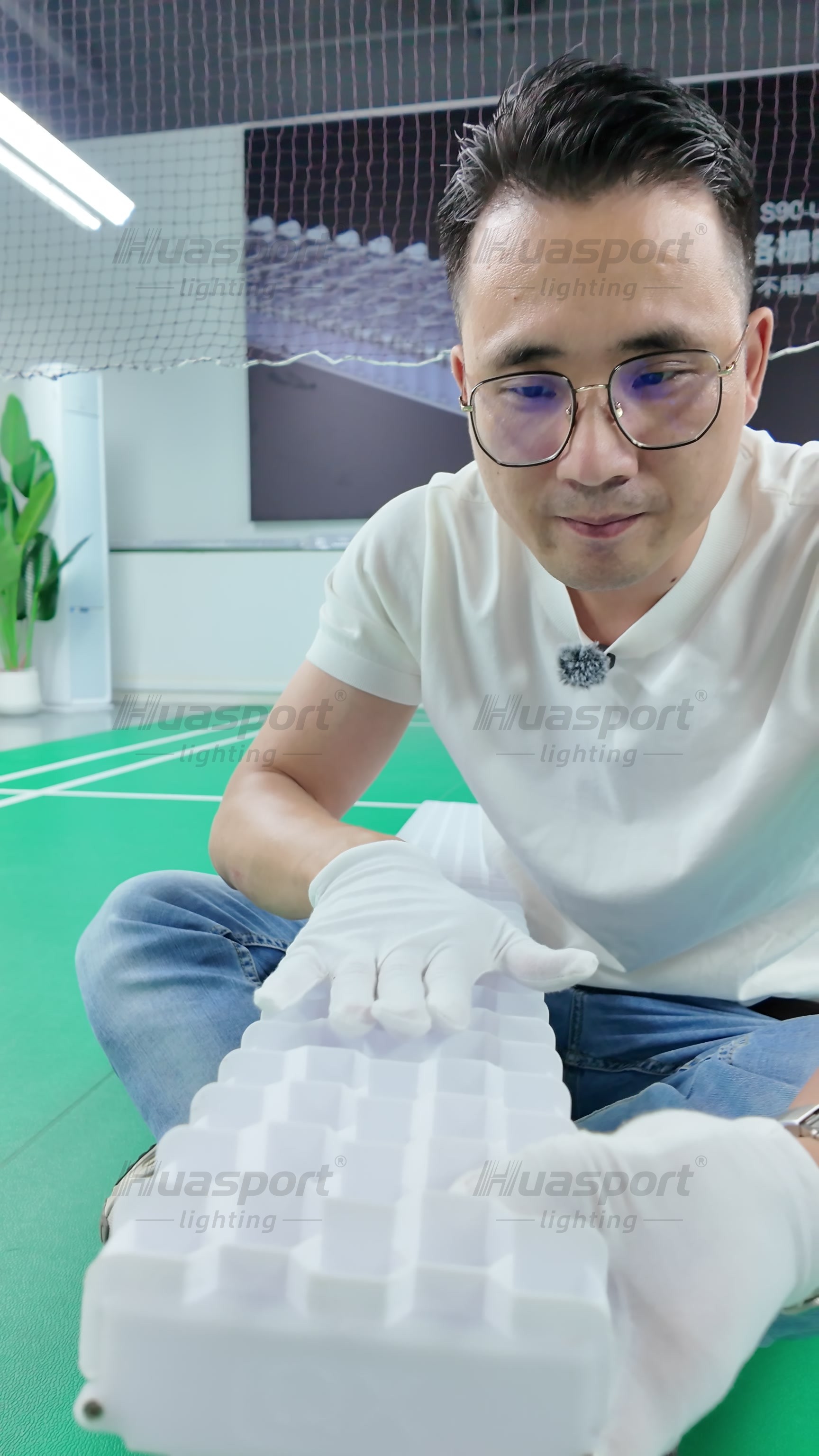

The S90 is not made wider only for appearance. Its 130 mm body width supports a double-layer honeycomb anti-glare grille, giving the optical structure more room to cut side glare before it reaches the player’s eyes.

Compared with common single-layer grille fixtures, the S90 uses two separate honeycomb layers. That design helps the court keep a cleaner viewing angle, especially when long-bar fixtures are mounted along both sides of the court and tilted inward.

Recommended Layout: WM-S90-1160-DD-42W-108Z

For one indoor badminton or pickleball court, this article uses one planning option only:

• Model: WM-S90-1160-DD-42W-108Z.
• Fixture length: 1.16 m.
• Power: 42W per fixture.
• Quantity: 24 fixtures per court.
• Distribution: 12 fixtures on each side.
• Mounting height: about 5 m.
• Aiming angle: 30-degree inward tilt.
• Continuous row length: 13.92 m per side.
• Main playing-area coverage: 13.4 m side length.
• Target result: 300-400 lux+ for commercial training and recreation.

For competition use, the lighting design should be reviewed toward 500 lux+ average illuminance, with final confirmation based on ceiling height, court quantity, surrounding wall color and on-site layout.

Where This Article Links in the Huasport Lighting System

If the project is a badminton hall, start with the full Huasport badminton court lighting guide to compare player-view lighting, fixture rows and training-level lux targets.

If the same venue also has pickleball courts, the Huasport pickleball court lighting guide explains how long-bar side lighting can be planned around lower net sightlines and repeated court rows.

For glass-court venues, the Huasport padel court lighting layout is useful because padel courts need glare control around glass walls, fence lines and higher side viewing angles.

Court-First Energy Saving Checklist

Before choosing a lower-wattage badminton court lighting plan, check these points:

1. Whether the fixture controls side glare from the player angle.
2. Whether the anti-glare grille is visible and deep enough for the court layout.
3. Whether the bracket can hold a stable 30-degree inward tilt.
4. Whether the fixture body uses an aluminum profile for heat dissipation.
5. Whether the bracket is fixed to the aluminum body instead of only plastic parts.
6. Whether each court has enough continuous row length to cover the 13.4 m main playing-area side.
7. Whether the planned lux target matches commercial training or competition use.

Power-First vs Court-First Selection

Final Buyer Takeaway

Energy saving for a badminton hall is not only a wattage decision. The S90 approach is to protect the player’s view first, then use efficient lighting and a 42W side-row layout to reduce wasted power. That is the type of saving a court owner can explain clearly to players, coaches and project partners.

FAQ

What is the model discussed in this S90 badminton court lighting article?

The model discussed here is WM-S90-1160-DD-42W-108Z, a 1.16 m S90 42W long-bar anti-glare fixture for indoor badminton and pickleball court planning.

Why does the S90 use a 130 mm body width?

The 130 mm body width gives the fixture room for a double-layer honeycomb anti-glare grille, helping reduce side glare from the player viewing angle.

How many S90 42W fixtures are used for one court in this layout?

This planning option uses 24 fixtures per court, with 12 fixtures on each side of the court.

What lux level can this S90 42W layout target?

For commercial training and recreation, the layout targets about 300-400 lux+ average illuminance. Competition use should be reviewed toward 500 lux+ based on the final venue conditions.
