Malaysia S70 42W Badminton Court Lighting for Busy Training Halls

An empty court is generous to bad lighting. The trouble starts when a hall fills up, shuttles climb into the light rows, and players begin looking across bright fixtures from several angles.

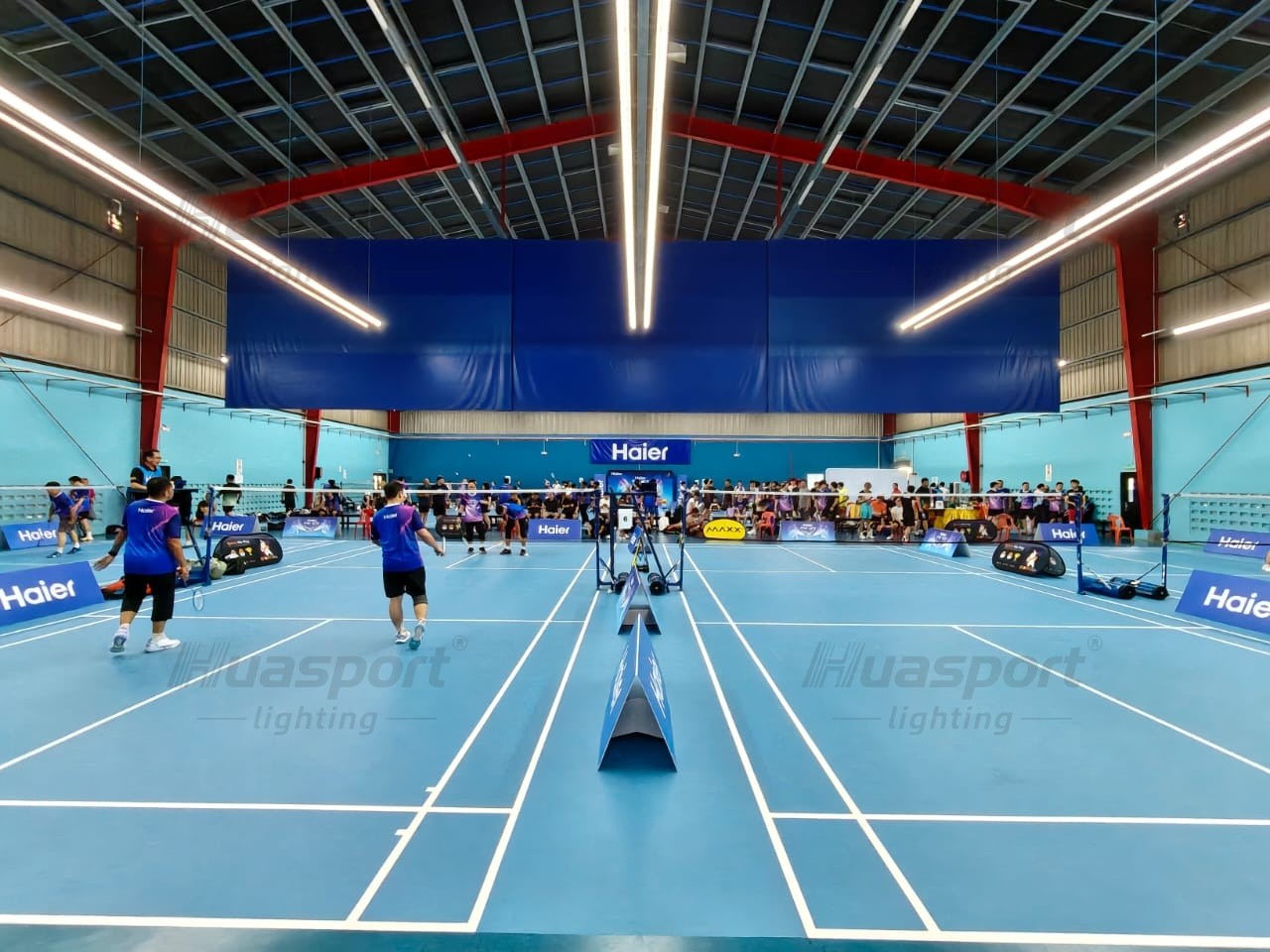

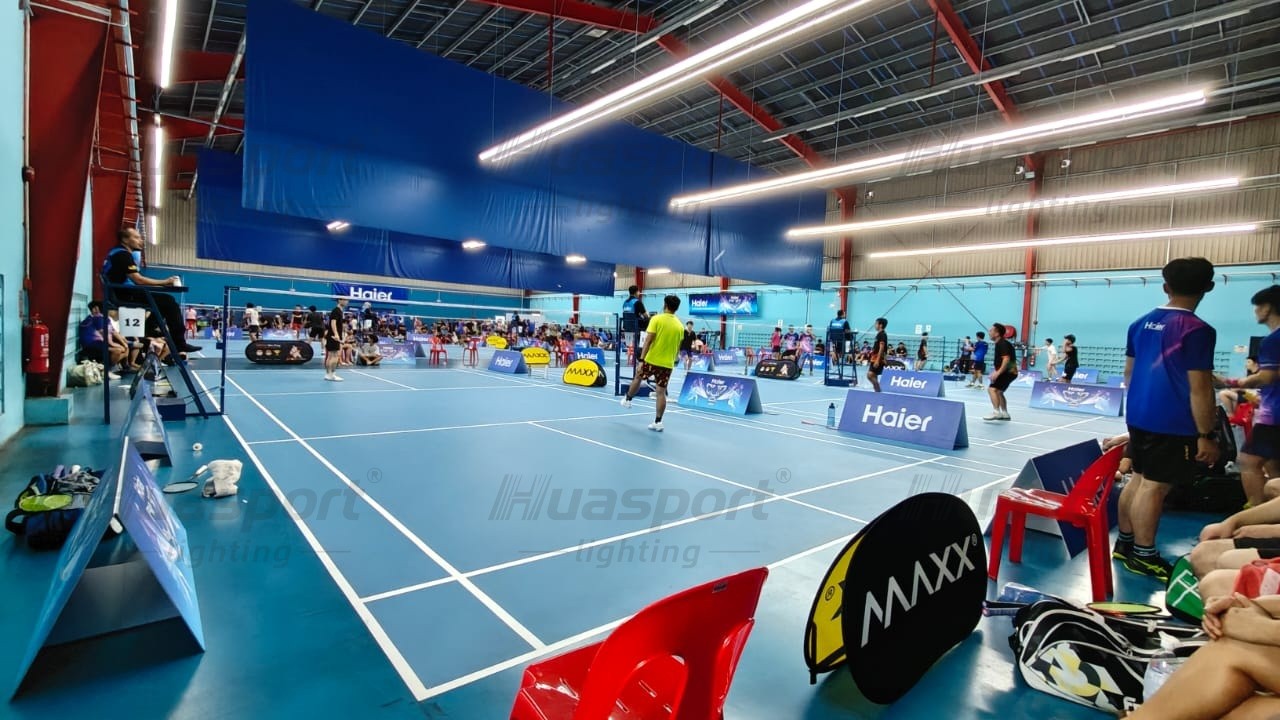

That is the reason this Malaysia badminton hall topic is worth separating from a normal product introduction. The photos show a busy indoor training setting with blue courts, players in motion, side seating and long fixture rows above the lanes. The planning below keeps to one product and one layout so the numbers stay easy to check before quotation.

The Layout in One Pass

For a Malaysia indoor badminton court, one Huasport planning option uses the S70 1.16 m anti-glare long-bar fixture, model WM-S70-1160-DD-42W-108Z. One court uses 24 fixtures, with 12 fixtures on each side. The mounting height is about 5 m, the fixtures aim 30 degrees inward, and each side forms a 13.92 m continuous row from twelve 1.16 m fixtures.

This 13.92 m row is used to cover the 13.4 m main playing-area length. The target reference is 300-400 lux+ for commercial training and recreational play. If a venue wants competition use, the layout should be reviewed against a 500 lux+ average requirement before the quote is finalized.

Why the Row Length Matters During Play

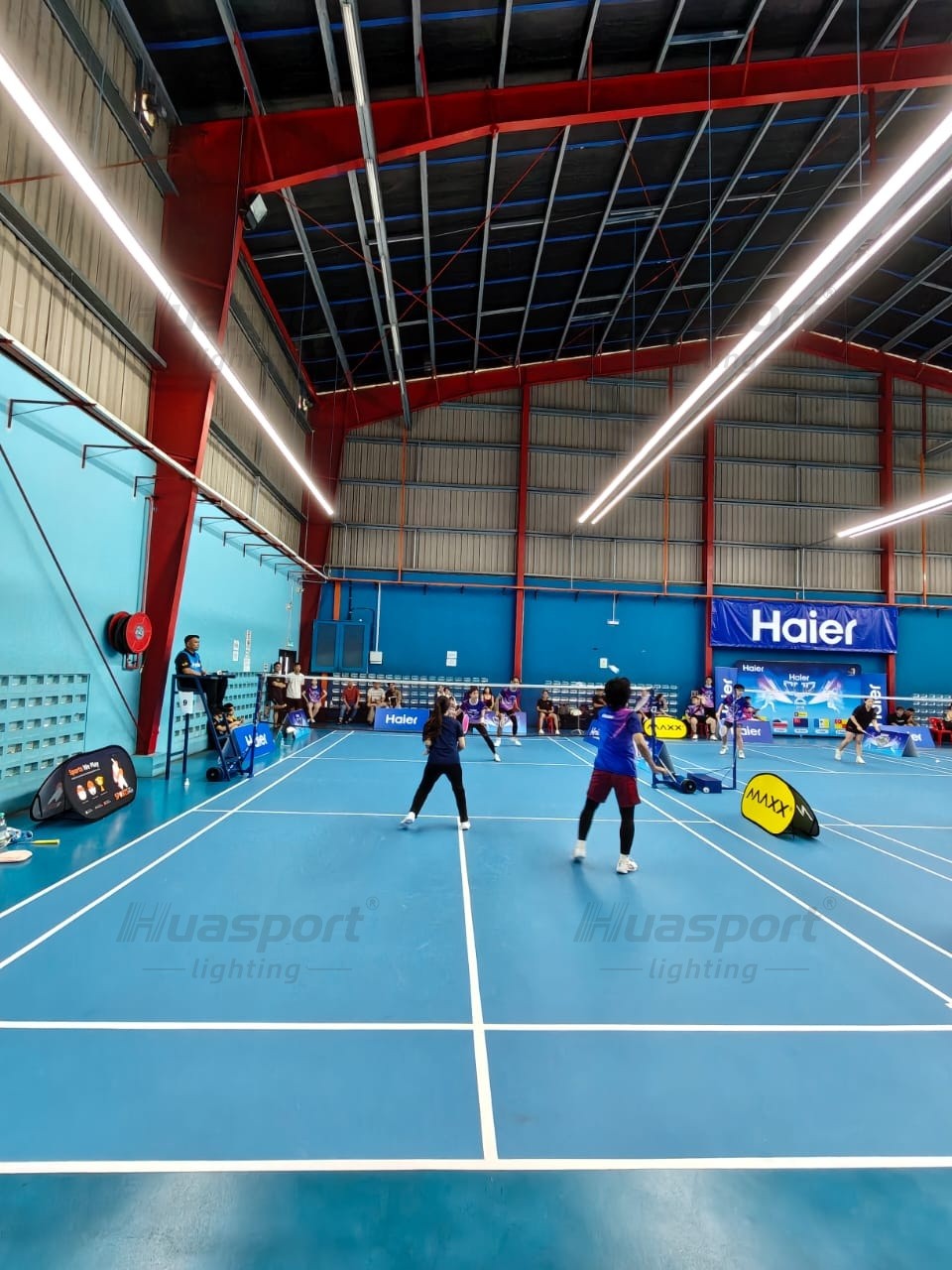

Badminton players spend a lot of time looking upward. A light plan can pass a simple floor-level brightness check and still bother players when they track a high clear, a lift from the back court or a defensive return near the sideline.

The S70 row layout solves that by treating each court side as a continuous lighting line. Twelve fixtures join into one 13.92 m run, so the light follows the long side of the court instead of leaving short bright and dark sections. At 5 m height with a 30-degree inward aim, the row sends light into the playing area while keeping the fixture body out of the most direct player view as much as the building allows.

What the Malaysia Photos Help Buyers Check

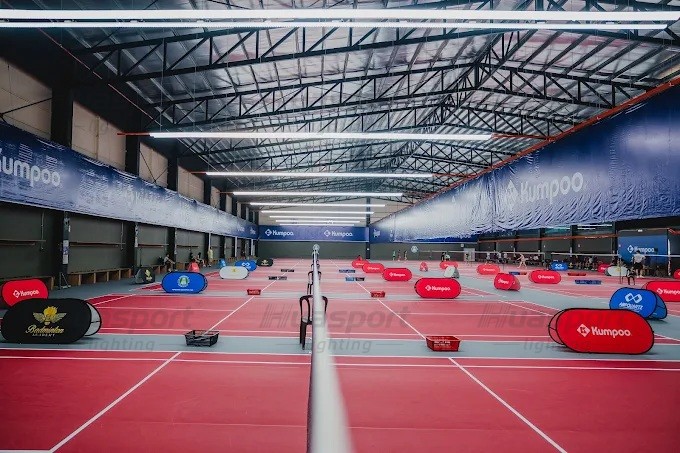

The Malaysia photos are useful for visual checks before a buyer talks about price. They show active players, court spacing, ceiling structure, side seating and the direction of the long-bar rows. Those details matter because a hall that feels comfortable during an empty walkthrough can feel different during a full training session.

The photos should not replace the project record for the exact installed model. Before purchase, the buyer still needs the quotation, model code and layout drawing. The image set helps the buyer ask better questions, especially about player sightlines, fixture direction and whether each court can repeat the same 30-degree inward aim.

S70 Details That Are Worth Looking At

S70 and S90 share the same long-bar anti-glare design language. The S70 body is 11 cm wide, while the S90 body is 13 cm wide. For this Malaysia planning option, the selected fixture is the S70 42W model WM-S70-1160-DD-42W-108Z.

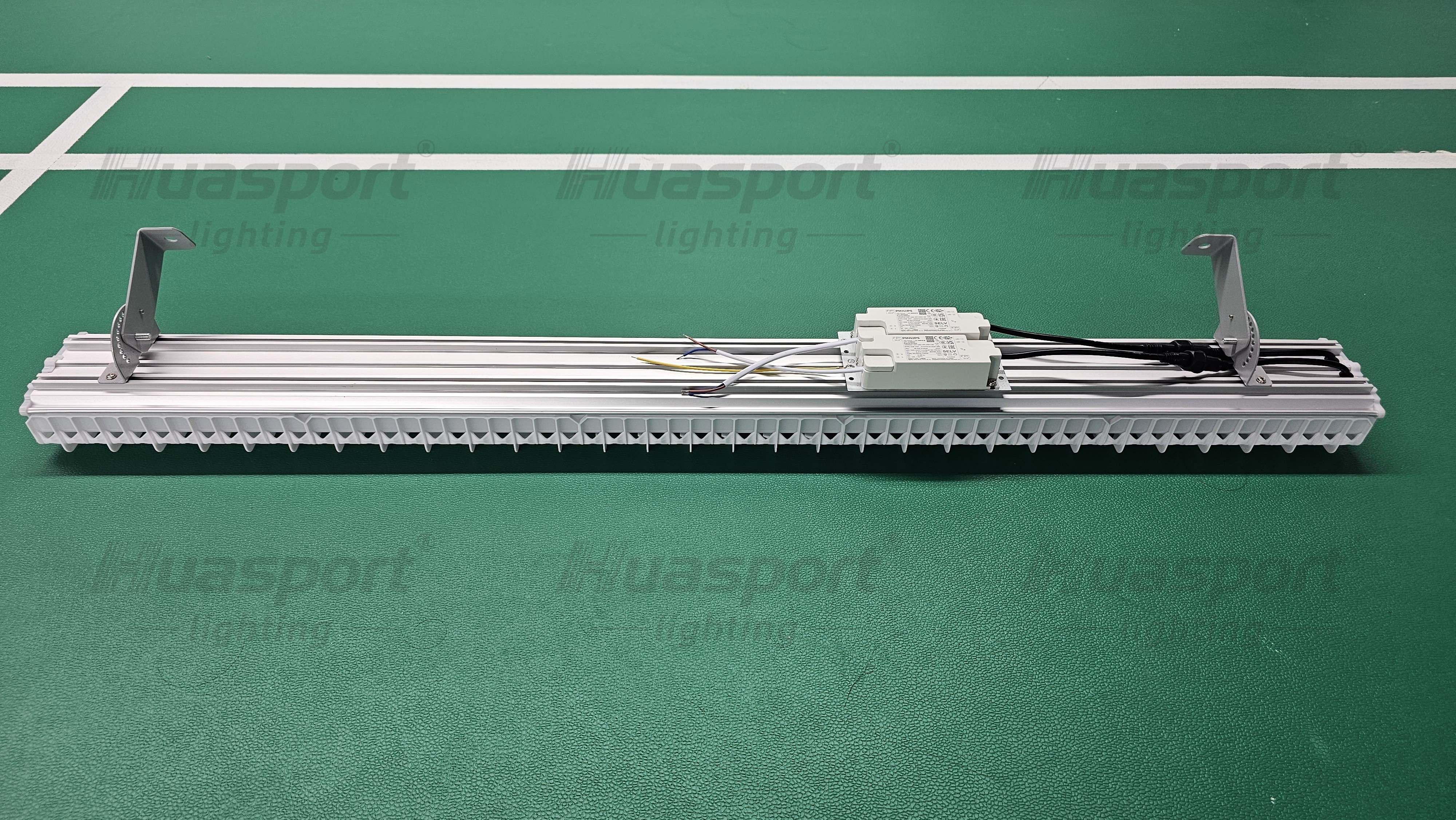

The front uses Huasport’s double-layer honeycomb anti-glare grille. The deeper grille structure helps soften the direct view of the LED source from player angles. On the back, the fixture uses a thickened aluminum profile instead of an iron body. That aluminum profile helps heat move away from the driver and LED chips, and the bracket fixes into the aluminum section instead of plastic.

Installation Details a Buyer Can Verify

For this S70 42W badminton plan, the buyer should check five physical details on site.

1. Each court has 24 fixtures in total.
2. Each side has 12 fixtures.
3. The mounting height is about 5 m.
4. The fixtures aim 30 degrees inward toward the court.
5. The adjustable bracket uses the normal badminton reference around the 6th hole position for the 30-degree setting.

These checks are simple, but they keep the quote honest. A buyer can compare the drawing, fixture count and bracket setting without guessing what the installer meant by anti-glare badminton lighting.

Where This Fits With Other Huasport Court Lighting Pages

If your main project is a shuttle hall, the Huasport badminton court lighting guide is the core page for side-row layouts, glare control and court-by-court planning.

If the same building will include low-net courts, the Huasport pickleball court lighting guide explains how indoor pickleball projects use similar player-comfort checks around viewing height, court rows and fixture direction.

For glass-wall venues, the Huasport padel court lighting layout should be handled separately. Padel has glass walls, fence reflections and four-side viewing angles, so it should not be copied from the two-side badminton plan.

What to Send Before Quotation

A good quote starts with the court, not the lamp price. For a Malaysia badminton hall using this S70 42W planning option, send the number of courts, ceiling height, beam or suspension structure, court drawings if available, and photos from the baseline and side seating area.

Also say whether the hall is mainly for commercial training, recreational play or competition review. Once those details are clear, the conversation moves from how many lights are needed to whether the whole court can be built, aimed and checked in the same way.

FAQ

Which Huasport model is used in this Malaysia badminton lighting plan?

The model is WM-S70-1160-DD-42W-108Z, a Huasport S70 1.16 m 42W anti-glare long-bar fixture for indoor badminton and pickleball court planning.

How many S70 fixtures are used for one badminton court?

This layout uses 24 fixtures per court, with 12 fixtures on each side of the badminton court.

What mounting height and angle are used?

The planning reference uses about 5 m mounting height with the fixtures aimed 30 degrees inward toward the court.

Why does the row length need to be 13.92 m?

Twelve 1.16 m fixtures form a 13.92 m continuous row, which covers the 13.4 m main playing-area length of a badminton court.

Does this Malaysia photo set confirm the installed model?

No. The photos help buyers check the court environment, player sightline and fixture direction. The exact installed model should be confirmed by the project record, quotation or layout drawing.
