S90 Badminton Hall Lighting Video: Why Player View Beats Doorway Brightness

Walk into a badminton hall in Jinjiang, Fujian, and the first impression is comfort. The reception desk is wrapped around the entrance. The air feels dry enough for a humid coastal city. The owner clearly spent money on the fit-out before anyone even steps onto court.

Then the real test begins overhead.

A hall can look bright from the doorway and still feel wrong after one high lift. Players do not judge badminton lighting from the lobby. They judge it while tracking a shuttle above eye level, with the fixture row sitting somewhere in the same field of view. That is why this video is useful: it turns the lighting question away from "is the hall bright?" and toward "can the player look up without being bothered by side glare?"

The Quick Answer for Hall Owners

The video shows a Jinjiang badminton hall using Huasport’s double-layer grille hall light family. The exact installed model should still be confirmed from the project record before it is used in a quotation.

For export planning with the same S90 1.16 m family, one practical Huasport option is WM-S90-1160-DD-42W-108Z. It uses 24 fixtures per badminton court, with 12 fixtures on each side. The fixtures are mounted at about 5 m, aimed 30-degree inward, and arranged as a continuous 13.92 m row per side to cover the 13.4 m main playing-area side length.

That option targets 300-400 lux+ average illuminance for commercial training and recreational play. If the hall is intended for competition use, the lighting design should be reviewed toward 500 lux+ average illuminance before final confirmation.

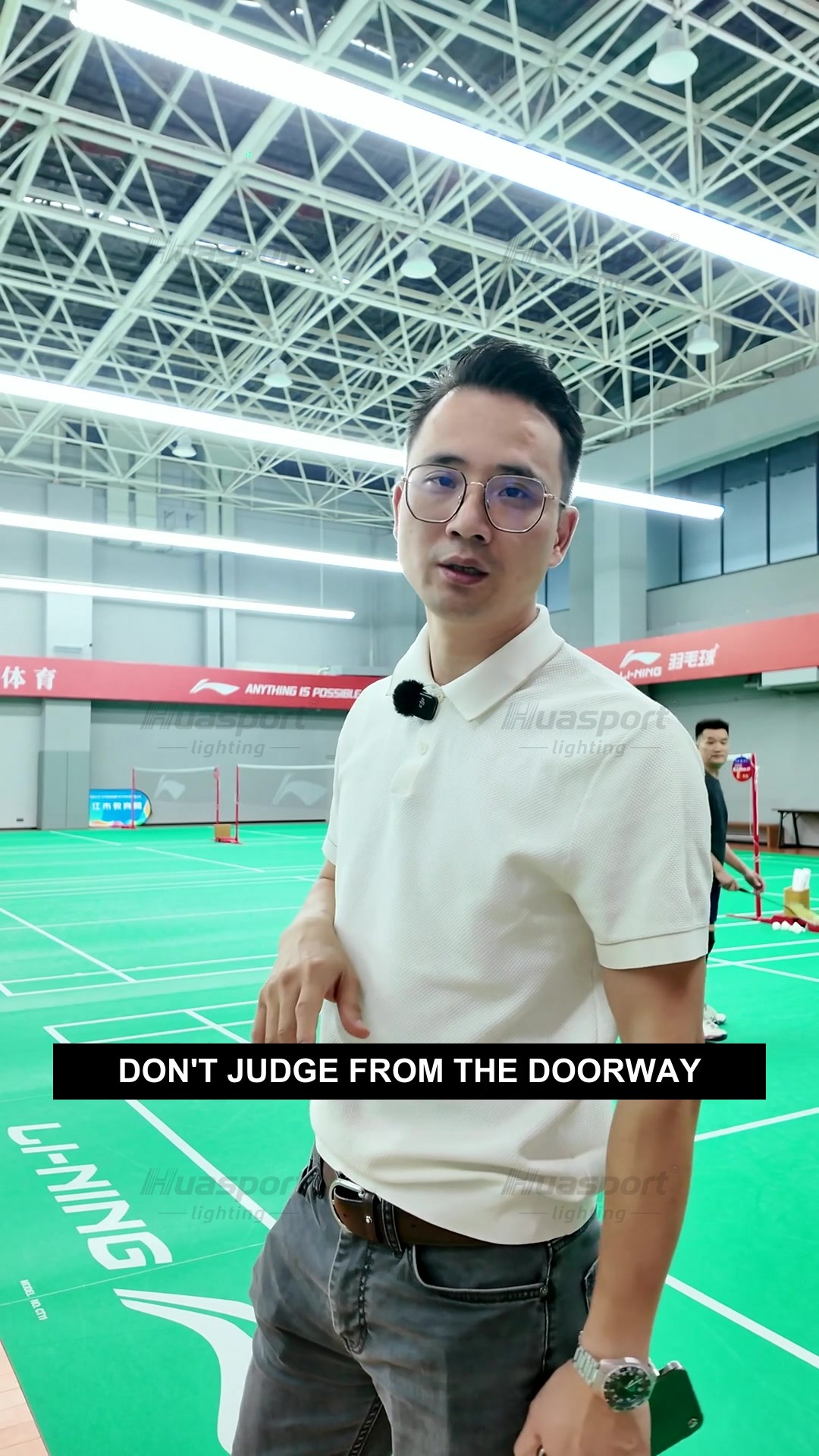

Why the Doorway View Can Mislead You

Doorway brightness is easy to like. The court surface looks clean, the green flooring reflects enough light, and the hall feels open. But the doorway is the wrong angle for judging badminton court lighting.

Badminton is full of upward viewing moments: clears, lifts, defensive blocks, high serves, smashes, and late recovery shots. During those moments, the eye is not looking at the floor. It is looking through the upper court space, where long-bar fixtures, roof beams, side rows, banners and wall colors all become part of the player’s view.

That is why Huasport treats player-view checking as part of the decision, not as a small detail after installation. Stand on the court. Look up. Track a high shuttle. If the fixture row keeps pulling attention away from the shuttle, the floor reading alone has not answered the real question.

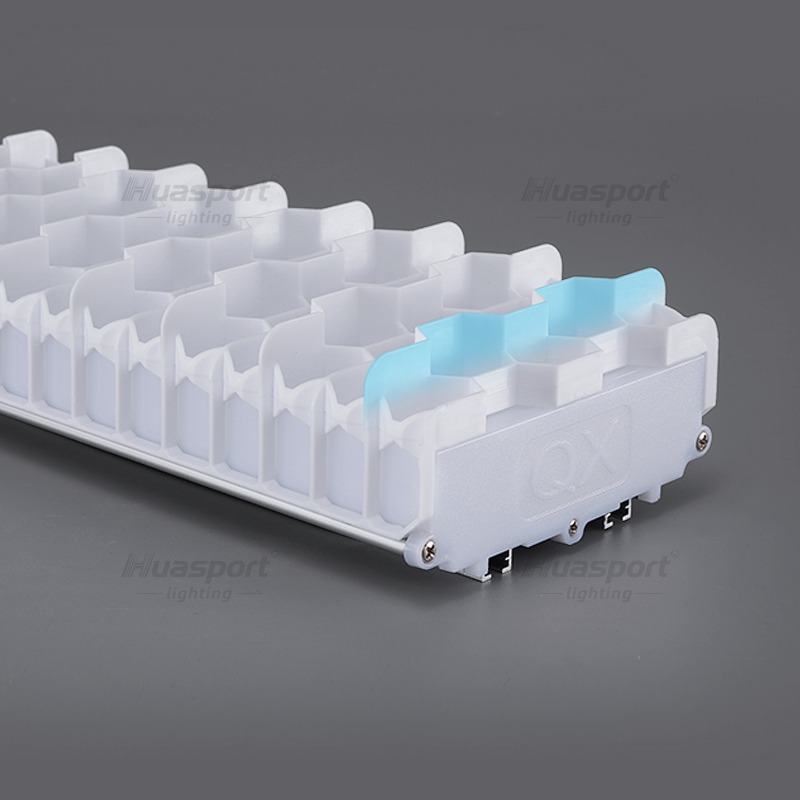

What the Double-Layer Grille Is Doing

S90 is the wider version of Huasport’s long-bar indoor badminton and pickleball light family. The S90 body is 13 cm wide, while S70 is 11 cm. Both share the same visual language: a long white body, dense honeycomb grille structure, aluminum back profile and adjustable metal brackets.

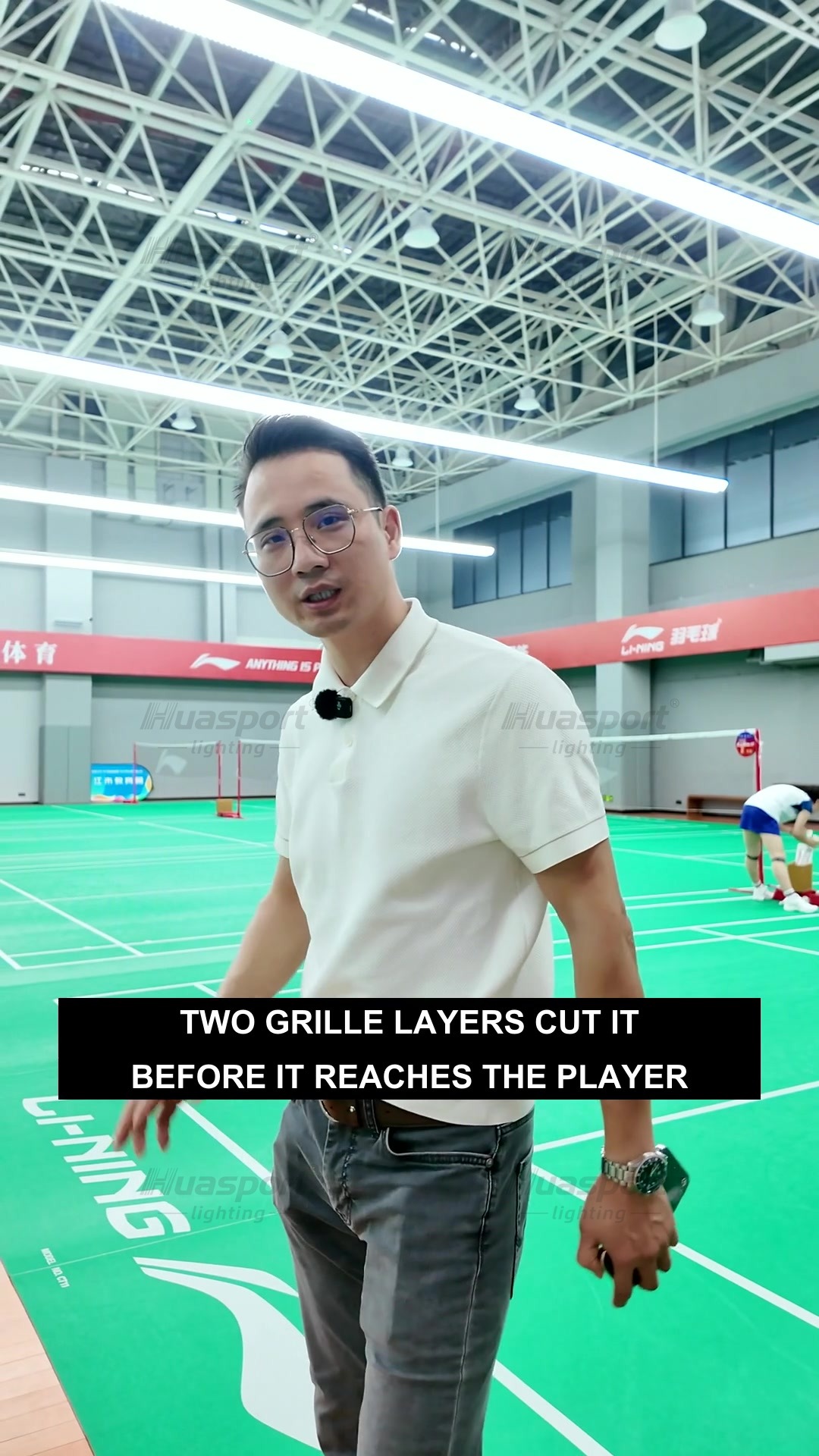

The point of the double-layer grille is side-glare control. A single layer can hide part of the LED source from a shallow viewing angle, but the second layer gives the light a longer path before it reaches the player’s eye. In practical hall language, it means the court can stay bright while the upper view feels calmer during lifts and smashes.

This is still not a "no glare in every condition" promise. Glare depends on fixture position, mounting height, aiming angle, surrounding brightness and where the player stands. A responsible check looks at the whole court, not a single product claim on its own.

In the video, Huasport presents the double-layer grille hall light as a China Sport Show award-winning fixture. For a buyer, the more useful takeaway is simpler: a product feature only matters if it helps at the exact angle where players actually look.

One S90 42W Layout to Quote Against

Item	Reference
Application	Indoor badminton court lighting
Fixture model	WM-S90-1160-DD-42W-108Z
Fixture family	S90 1.16 m long-bar anti-glare light
Body width	13 cm
Power	42W
Quantity per court	24 fixtures
Side layout	12 fixtures on each side
Row structure	Continuous row with no visible gap
Row length per side	13.92 m
Playing-area reference	13.4 m main side length
Mounting reference	About 5 m
Aiming reference	30-degree inward toward the court
Typical bracket reference	6th hole for 30-degree badminton or pickleball installation
Commercial-use target	300-400 lux+ average illuminance
Competition-use check	Review toward 500 lux+ average illuminance

This table should be treated as a planning reference for the S90 42W option. The video confirms the hall scene and the product family discussion, while the final quotation should confirm the model code, court count, ceiling height, row position, bracket angle and project target.

The Back Side Matters Too

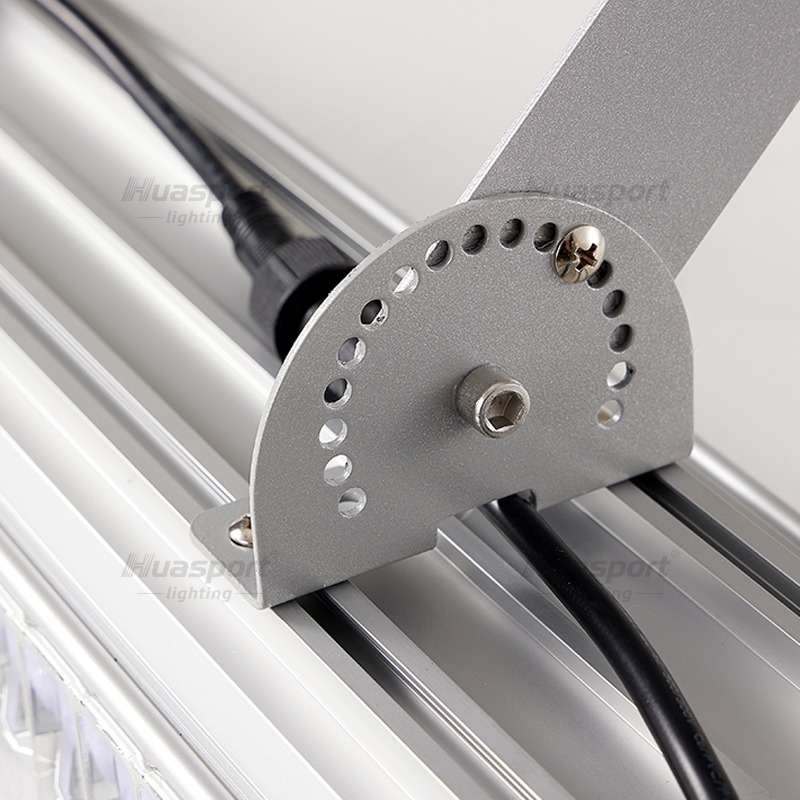

The player sees the grille. The installer sees the back.

Huasport uses a thickened aluminum profile behind the fixture body rather than a cheaper iron body. Aluminum helps move heat away from the LED source, and it also gives the bracket a solid fixing point. The bracket is fixed into the aluminum profile, not into a small plastic section.

That matters in a hall where each fixture is aimed inward at 30 degrees. The bracket is the part that holds the angle after installation, and the aluminum body is the part that carries the fixture across long rows.

What Buyers Should Check Before Quotation

1. Confirm whether the project needs S90 or another Huasport long-bar fixture family.
2. Confirm the exact model code before treating the video as a project specification.
3. Measure the ceiling or hanging height above the playing area and at the wall.
4. Check whether 24 fixtures per court and 12 per side fit the court layout.
5. Verify that a 13.92 m row covers the 13.4 m main playing-area side length.
6. Confirm that the bracket can be set to the 30-degree inward angle on site.
7. Ask whether the target is 300-400 lux+ commercial use or a 500 lux+ competition review.
8. Stand on the court and check upward viewing comfort from the baseline and mid-court.

These checks are practical because they match the way badminton is played. Players do not stare at the floor for an hour. They lift their eyes again and again.

How This Connects to the Three Core Court Pages

For badminton halls, start with the Huasport badminton court lighting guide, because the 24-fixture side-row layout and player-view glare check belong to shuttle court planning.

For venues that also mark pickleball lines, the Huasport pickleball court lighting guide helps compare row position, court sharing and ball-tracking comfort under similar long-bar fixtures.

For glass-wall projects, use the Huasport padel court lighting layout instead. Padel has glass reflection, four-side viewing and a different fixture count, so it should not borrow the badminton side-row layout.

More project notes sit in the Technical Articles archive. When a hall drawing, ceiling photo or court count is ready, send it through the Huasport contact page so the model and row position can be checked together.

FAQ

Which Huasport model fits the S90 42W planning option?

The model code is WM-S90-1160-DD-42W-108Z. It is an S90 1.16 m 42W long-bar anti-glare fixture used as a planning option for indoor badminton and pickleball courts.

How many S90 fixtures are used for one badminton court?

One practical S90 42W layout uses 24 fixtures per court, with 12 fixtures installed on each side of the playing area.

Why does the article focus on player view instead of doorway brightness?

Doorway brightness only shows how the hall looks from outside the court. Player view matters because badminton players repeatedly look upward during lifts, clears, smashes and defensive shots.

Does the video prove the exact installed model?

No. The video confirms the hall setting, the double-layer grille light family and the player-view lighting issue. The exact installed model should be confirmed from the project record before quotation.

Can the same S90 layout be discussed for pickleball?

Yes, the same S90 1.16 m 42W planning family can be discussed for indoor pickleball courts, but court sharing, line layout and ceiling height should be checked before confirming the quotation.
